A Technical appendix
A 1 Typical combinations of antennas and adapter
cables
In this section, you will find typical combinations of wireless modules, antennas, and
adapter cables for installation with or without a control cabinet.
A 1.1 2.4 GHz antennas
Omnidirectional antenna, 2 dBi

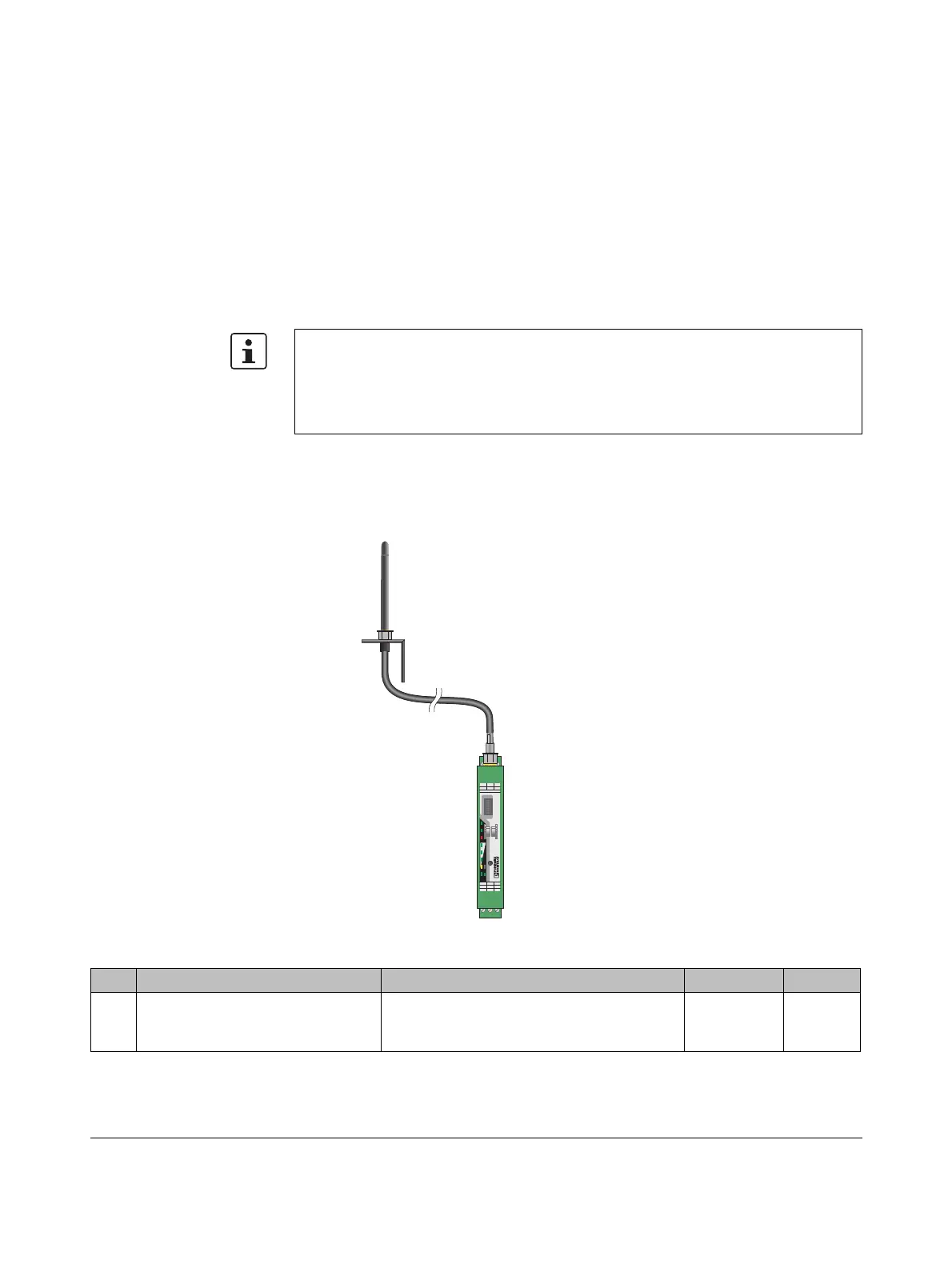

Figure A-1 Omnidirectional antenna, 2 dBi
– Install the antenna outside the control cabinet or building.
– Observe the installation instructions for the antenna and the Section “For your safety”
on page 7.
– For information on the transmission power, please refer to “Transmission power” on
page 39.
RAD-2400-IFS
RAD-ID
Reset
+24 V
0 V
RSSI- RSSI+
ANT
SPORT
0 2
Pwr
Dat
Err
RX TX
D(A) D(B)
GND
RX
CO
1
NC
1
CO
2
TX
1
Item Product Description Connection Order No.
1 RAD-ISM-2400-ANT-OMNI-2-1-
RSMA
Omnidirectional antenna, 2.4 GHz, 2 dBi gain,
1.5 m cable length, linear vertical polarization,
h/v 360°/75° opening angle, IP65 protection
RSMA (male) 2701362
