Typical combinations of antennas and adapter cables
105542_en_05 PHOENIX CONTACT 177 / 198
Parabolic antenna, 19 dBi, with outdoor surge protection

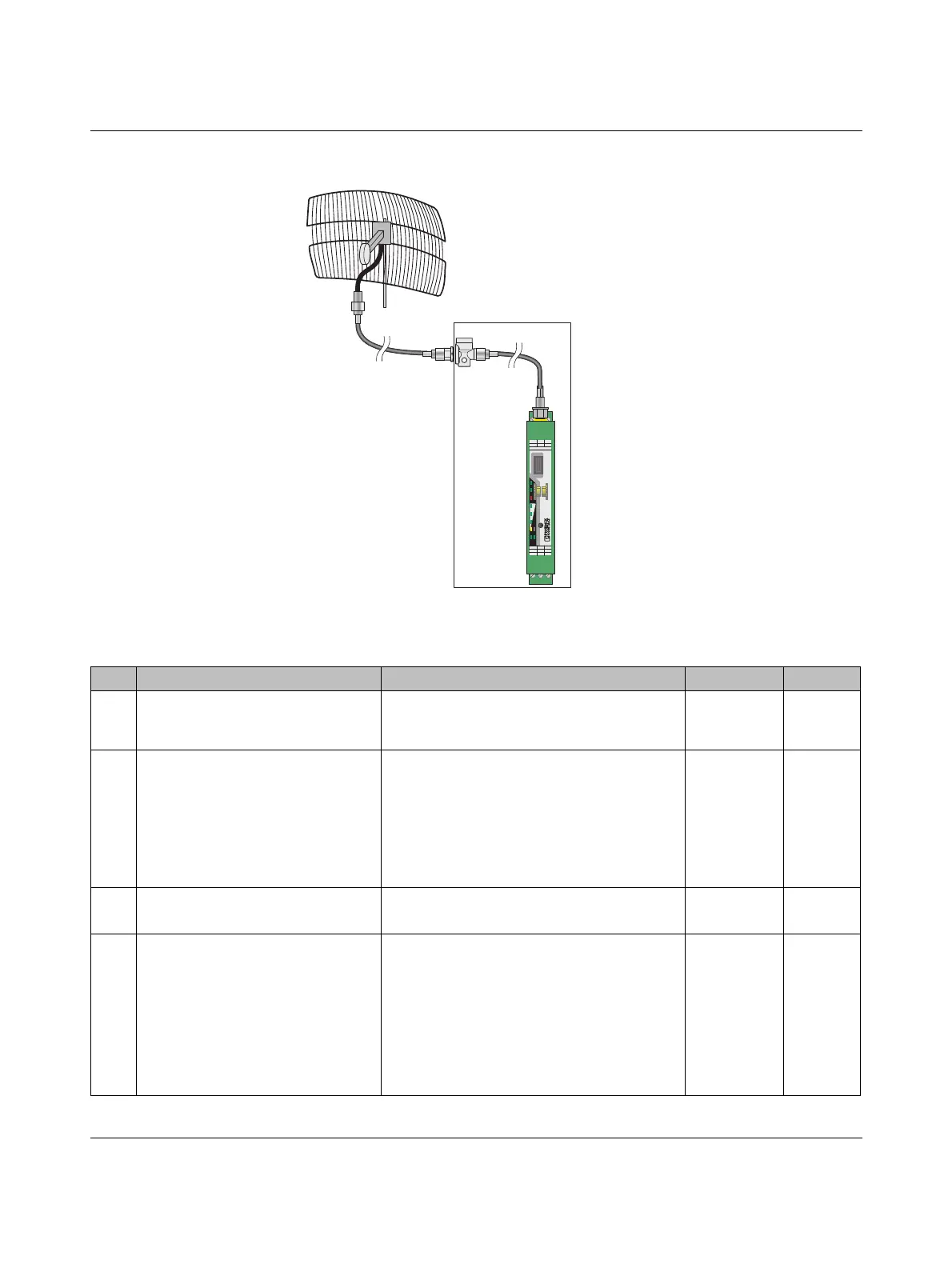

Figure A-7 Parabolic antenna, 19 dBi, with outdoor surge protection
Items 2 and 3 are optional.
RAD-2400-IFS
RAD-ID
Reset
+24 V
0 V
RSSI- RSSI+
ANT
SPORT
0 1
Pwr
Dat
Err
RX TX
D(A) D(B)
GND
RX
CO
1
NC
1
CO
2
TX
1
2
3
4
Item Product Description Connection Order No.
1
RAD-ISM-2400-ANT-PAR-19-0 Parabolic antenna, 2.4 GHz, 19 dBi gain, linear
vertical polarization, h/v 17°/11° opening an-
gle, IP65 protection
N (female) 2867885
2
(opt.)
RAD-CAB-EF393- 3M Antenna cable, 3 m length, 50 Ω impedance N (male) 
N (male)
2867649
Alternative:
RAD-CAB-EF393- 5M Antenna cable, 5 m length
N (male) 
N (male)
2867652
RAD-CAB-EF393-10M Antenna cable, 10 m length 2867665
RAD-CAB-EF393-15M Antenna cable, 15 m length 2885634
3
(opt.)
CN-LAMBDA/4-5.9-BB Attachment plug with LAMBDA/4 technology
as surge protection for coaxial signal interfaces
N (female) 
N (female)
2838490
4
RAD-PIG-RSMA/N-0.5 Antenna cable, 0.5 m length, 50 Ω impedance N (male) 
RSMA (male)
2903263
Alternative:
RAD-PIG-RSMA/N-1 Antenna cable, 1 m length
N (male) 
RSMA (male)
2903264
RAD-PIG-RSMA/N-2 Antenna cable, 2 m length 2903265
RAD-PIG-RSMA/N-3 Antenna cable, 3 m length 2903266
RAD-PIG-RSMA/N-5 Antenna cable, 5 m length 2702140
