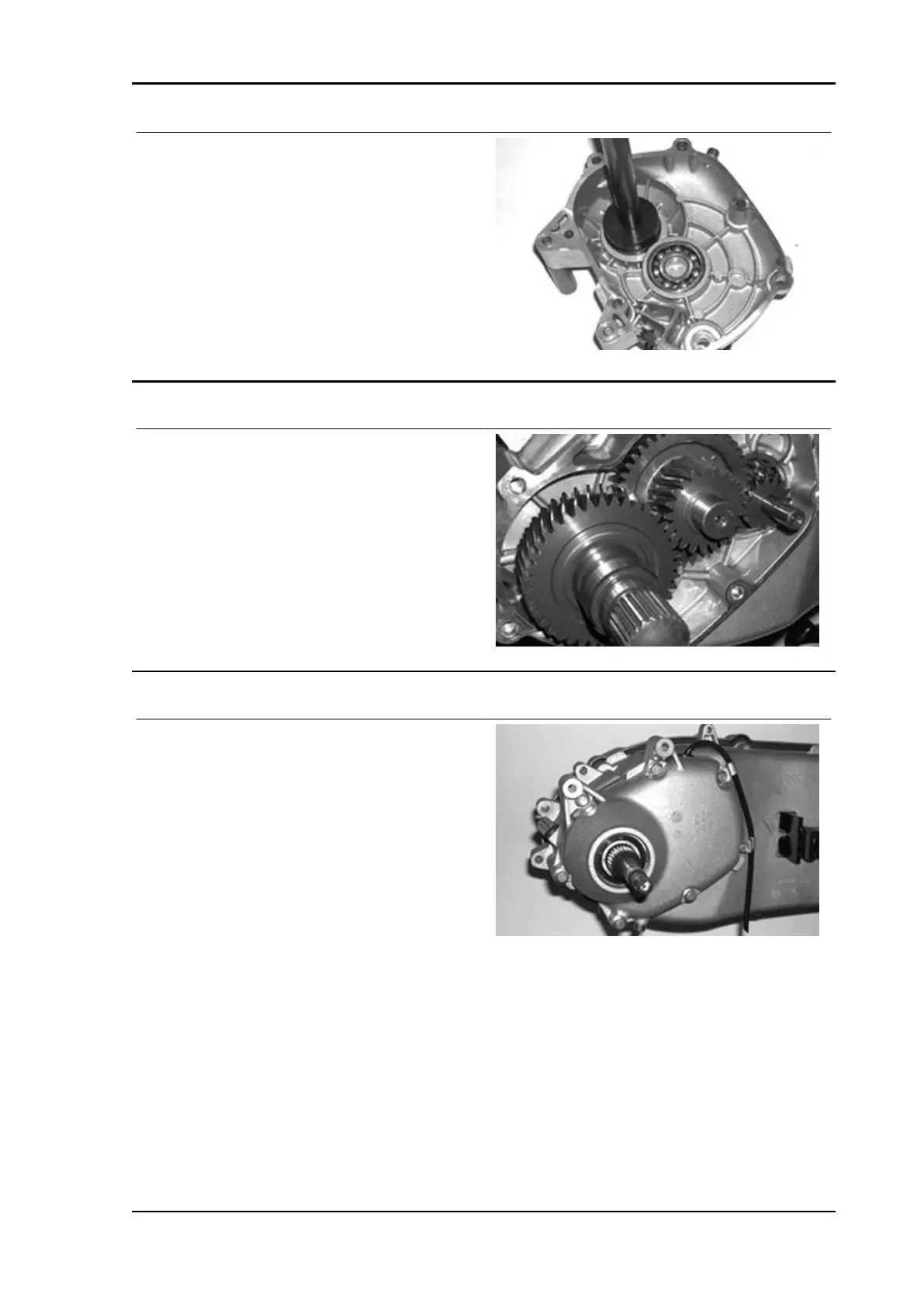

- Support the hub cover using the column kit.
- Insert the wheel shaft oil guard with the sealing
lip facing the inside of the cover.
- Place the oil guard flush with the crankcase.
Specific tooling
020376Y Adaptor handle
020360Y Adaptor 52 x 55 mm
020476Y Stud bolt set
Refitting the hub bearings
- Place the 3 shafts as shown in the figure.
Refitting the ub cover
- Check the proper position of the centring dowels.
- Install a new gasket.
- Fit the gearbox cover, making sure the breather
pipe is in the correct position.
- Position the 7 set screws, tighten them to the prescribed torque, being careful of the position of the
bands holding the vent tube, and the position of the 3 shortest screws as indicated in the figure.
- Refill with the prescribed oil to the Max. level.
Recommended products
AGIP ROTRA 80W-90 rear oil hub
SAE 80W/90 Oil that exceeds the requirements of API GL3 specifications
Characteristic
Quantity:
approx. 250 cc
X9 Evolution 500 Engine
ENG - 113
