Oil top up
The oil should be topped up after having checked the level and in any case by adding oil without ever
exceeding the MAX. level.
The restoration level between the MIN and MAX levels implies a quantity of oil of approx. 400 cc.
Engine oil filter
CAUTION
DO NOT DISPOSE OF OIL IN THE ENVIRONMENT. OIL, GASKET AND FILTER SHOULD BE DIS-
POSED OF ACCORDING TO THE REGULATIONS IN FORCE.
WARNING
AVOID TOUCHING PARTS OF THE ENGINE WHEN HOT, AS THIS MAY CAUSE BURNS.

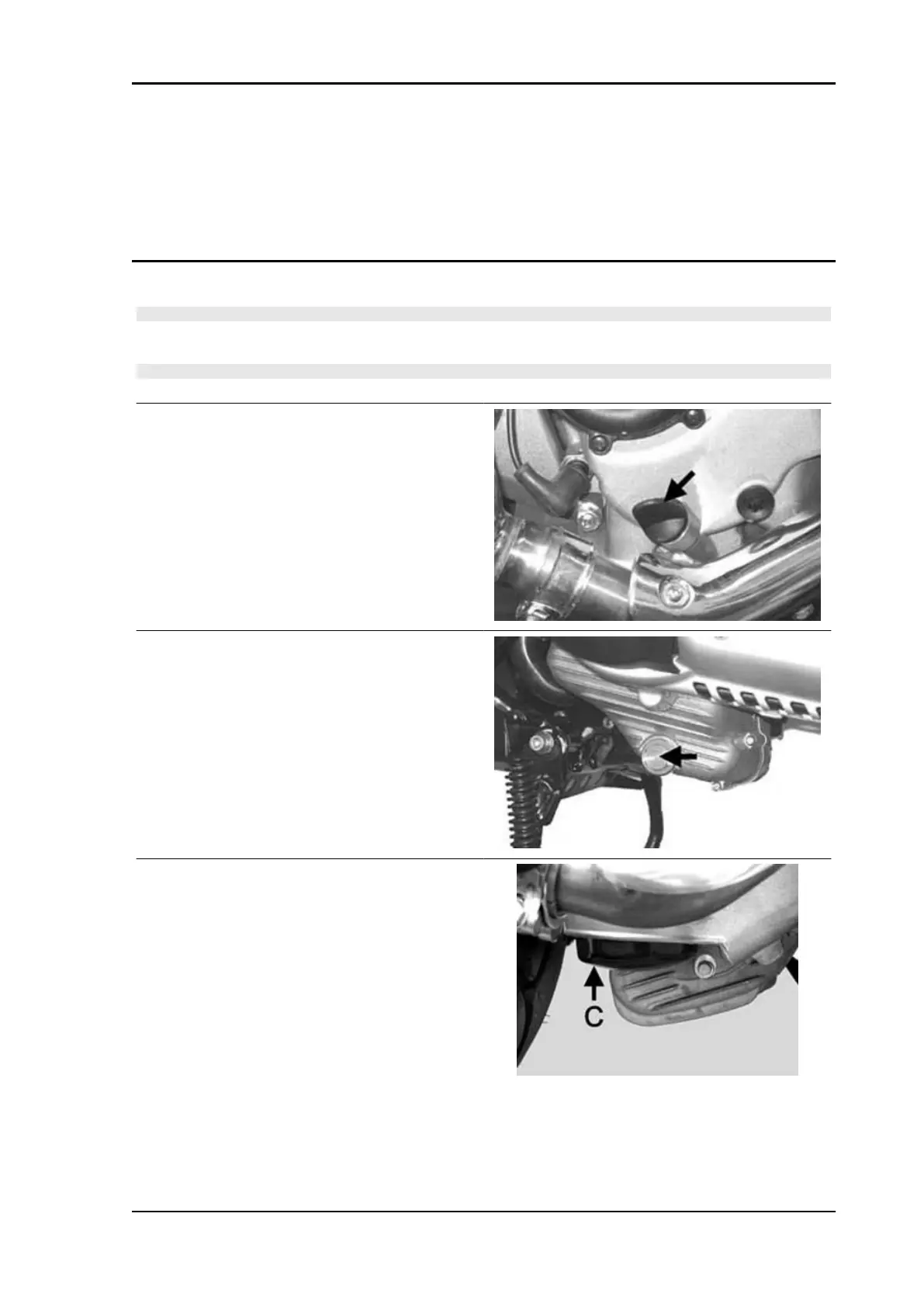

- Remove the muffler.
- Remove the filler plug.
- Remove and clean the mesh pre-filter of the drain
cap with compressed air.
- Use a belt spanner for filters to remove cartridge
filter "C".
- Make sure the pre-filter and drain cap O-rings are
in good condition.
- Lubricate them and refit the mesh filter and oil
drain cap by tightening to the prescribed torque.
- Refit a new cartridge filter making sure to lubri-
cate the O-ring before fitting, then screw until it
comes into contact with the seal and further tighten
to the prescribed torque.
- Refit the muffler.
- Add recommended engine oil.
