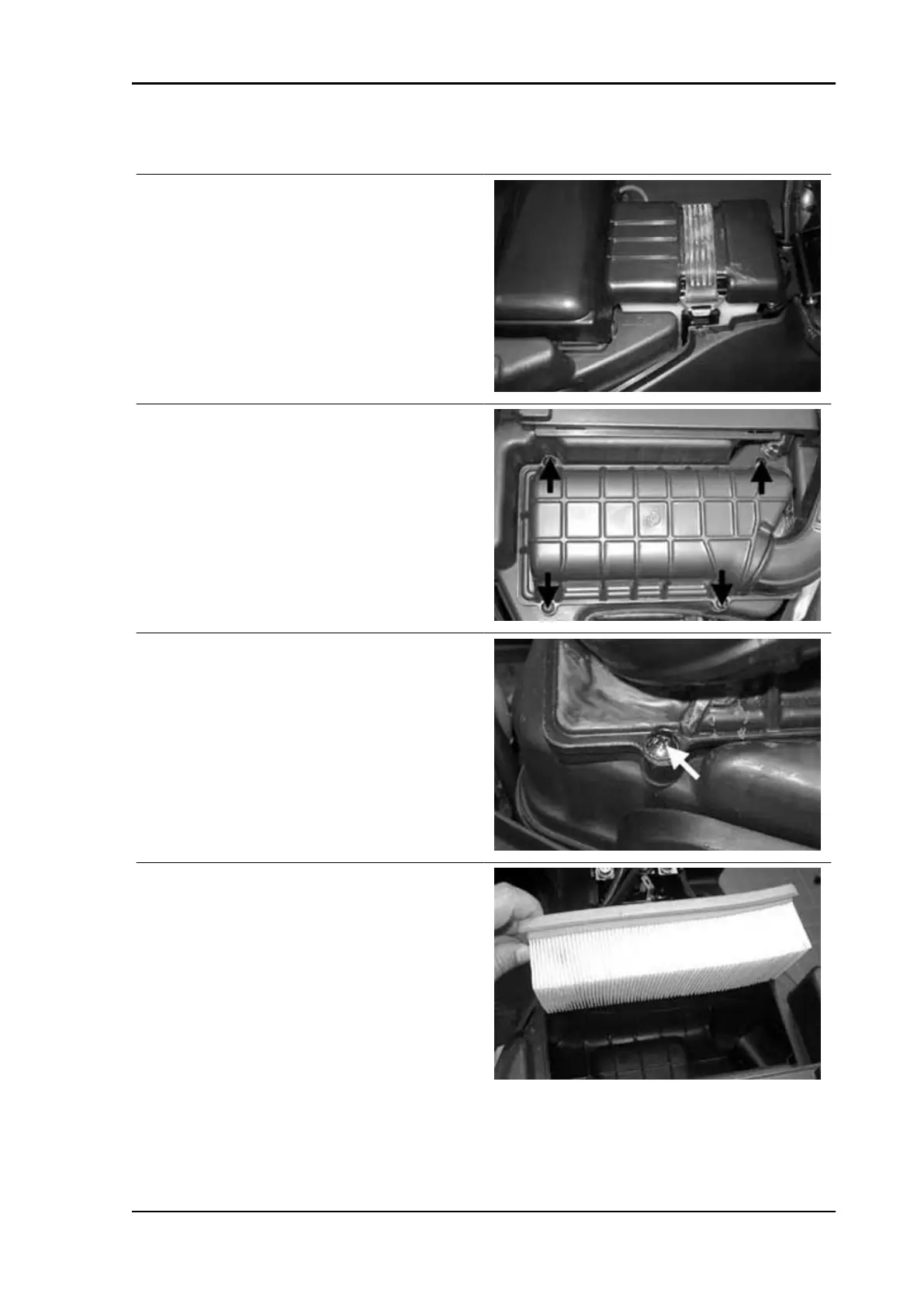

Air filter
- Raise the saddle.
- Remove the piston ring and the battery cover.
- Loosen the 4 mounting screws shown in the fig-
ure.
- Loosen the mounting screw located under the in-
take manifold.
- Replace the air filter and reassemble the various
components, reversing the removal procedure.
X9 Evolution 500
Maintenance
MAIN - 39
38
40
