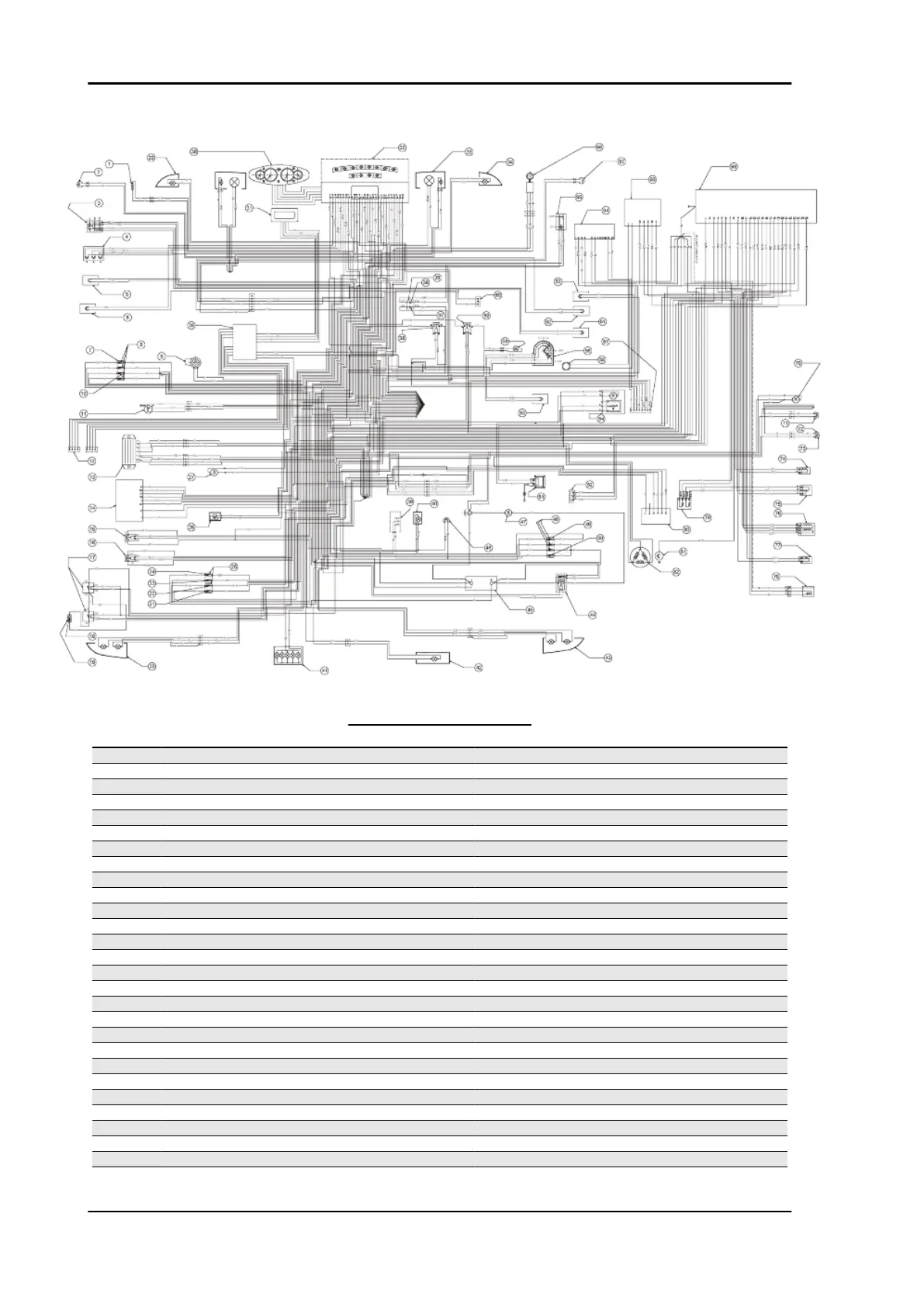

ELECTRICAL SYSTEM
Specification
Desc./Quantity
1 Outside temperature sensor
2 Rear brake stop button
3 Light switch with flash
4 Indicators switch
5 Horn button
6 Emergency flashing button
7 Front fuse holder box
8 Fuse no.3 7,5A
9 Horn
10 Fuse 15A
11 Side stand switch
12 Intercom connectors
13 Voltage regulator
14 Electric side stand control unit
15 Engine stop remote control switch 30A
16 Remote electronic controller switch 30A
17 No. 2 side stand pump remote control switches
18 Fuse 70A
19 Fuse holder box with side stand pump base
20 LH taillight with sidelights bulb and flashing light bulb
21 Fuse 7,5A
22 Fuse 10A
23 Fuse 5A
24 Fuse 3A
25 No. 2 rear fuse holder boxes for control unit
26 Anti-tilting sensor
27 Saddle opening actuator
28 Intercom control unit
Electrical system X9 Evolution 500
ELE SYS - 54
