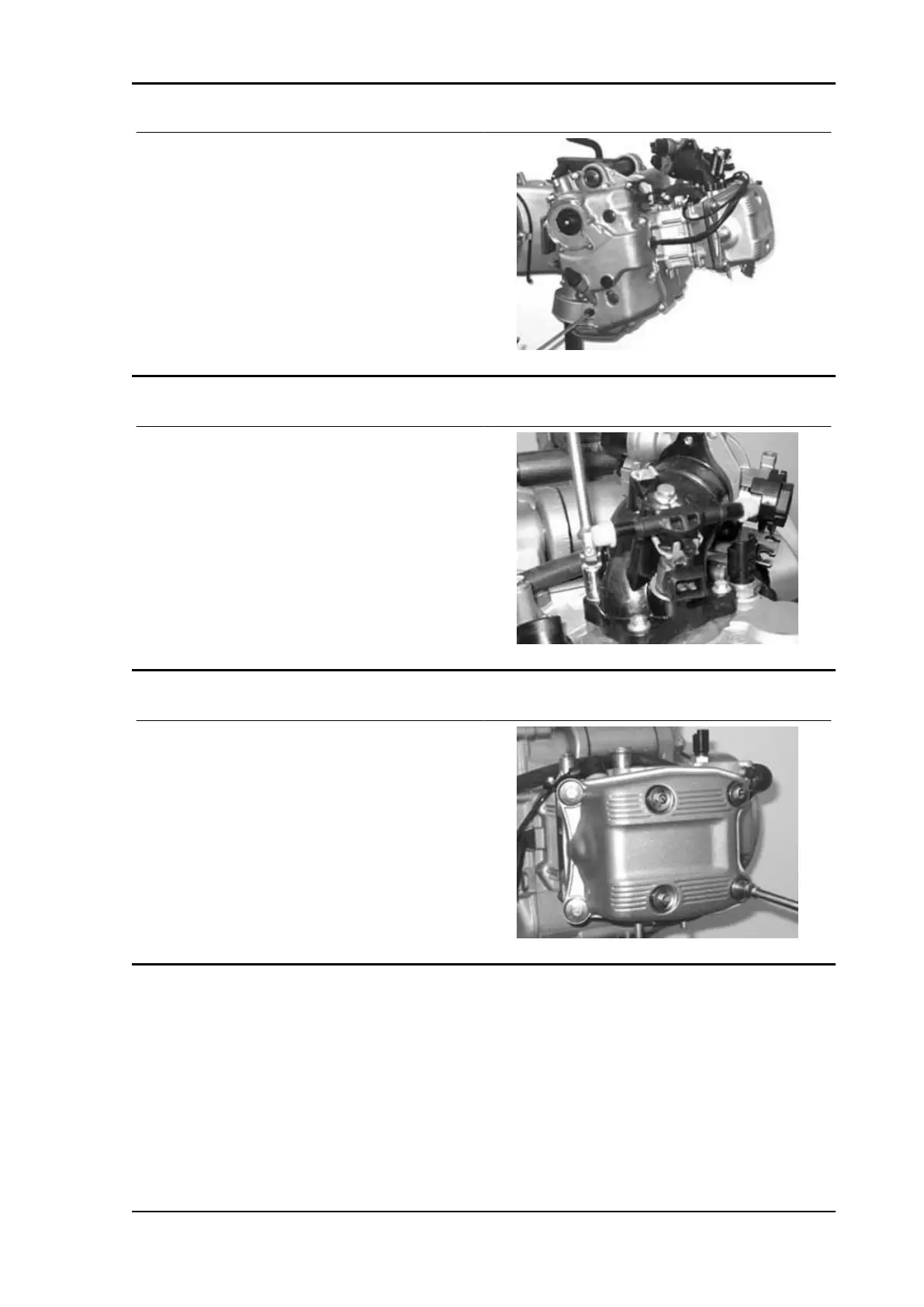

- Remove the flywheel cover, the flywheel and the
torque limiter.
Removing the intake manifold
- Remove the 3 mounting screws.
- Remove the intake manifold unit.
Removing the rocker-arms cover
- Loosen the 6 special screws with stop and the
relevant rubber gaskets.
- Remove the tappet cover with relevant gasket.
X9 Evolution 500
Engine
ENG - 139
