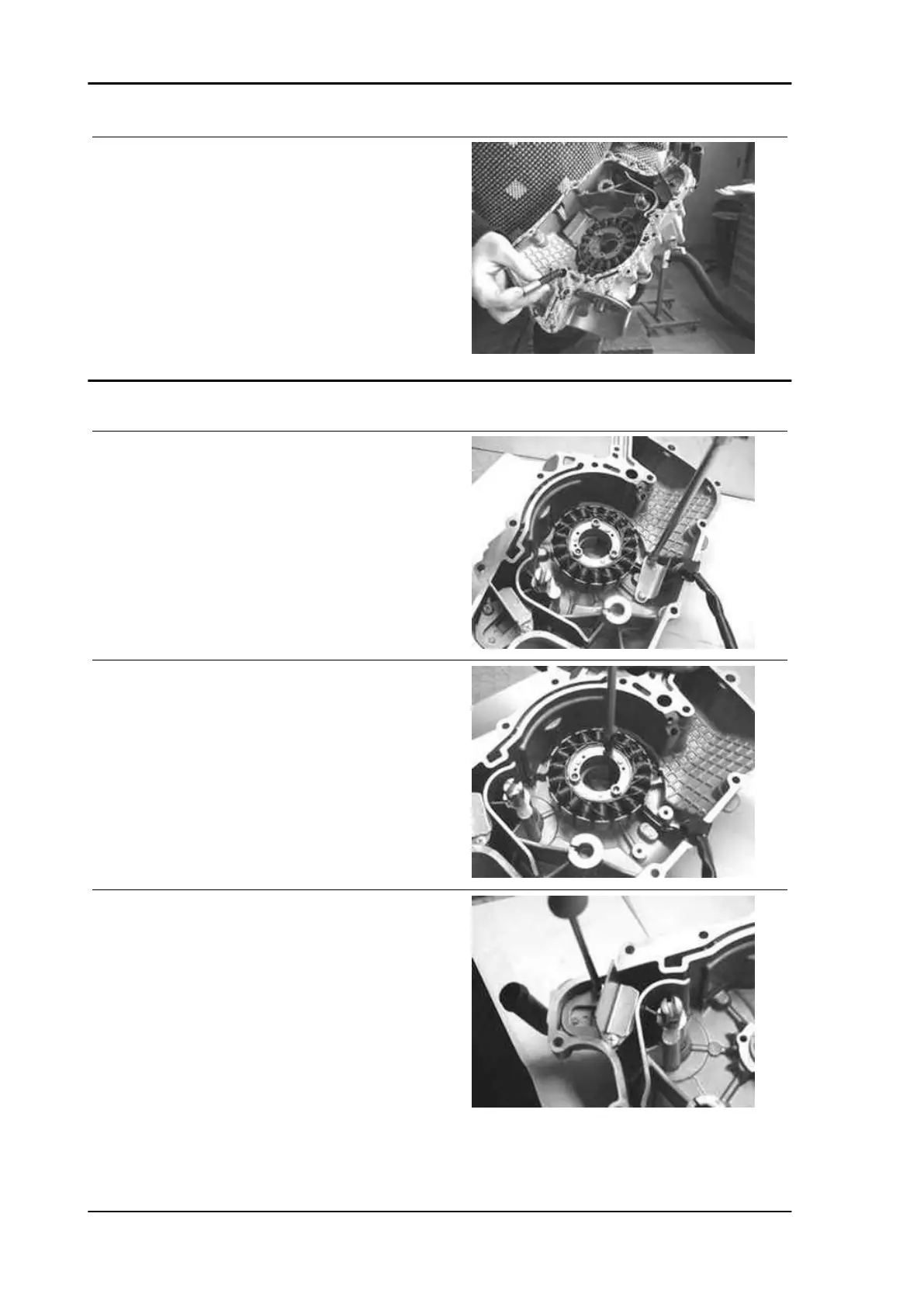

- Remove the by-pass and the relevant spring.
- Remove the oil pump seal.
Removing the stator
- Remove the two retaining screws and the cable
guide bracket.
- Unscrew the 3 fastening screws and remove sta-
tor and its wiring.
- Loosen the two retaining screws and remove the
reed valve support with bulkhead.
Engine
X9 Evolution 500
ENG - 116
115
117
Table of Contents
Workshop Manual
2
Index of Topics
5
Safety Rules
7
Maintenance Rules
7
Vehicle Identification
8
Dimensions and Mass
8
Weight and Dimensions
8
Oil Filter
9
Electrical Components
10
Electrical System
10
Wheels and Tyres
11
Tightening Torques
12
Front Suspension
12
Front Brake
12
Rear Suspension
12
Engine Unit
13
Overhaul Data
14
Assembly Clearances
14
Piston Rings
15
Sealing Rings
16
Index of Topics
20
Specific Tooling
21
Maintenance
32
Maintenance Chart
33
Every 2 Years
33
Spark Plug
37
Air Filter
39
Engine Oil
40
Engine Oil Filter
41
Oil Pressure Warning Light
42
Checking the Ignition Timing
42
Checking the Valve Clearance
43
Cooling System
43
Level Check
44
Braking System
45
Recommended Products
46
Headlight Adjustment
46
Checking the End Compression Pressure
47
Index of Topics
49
Troubleshooting
49
Brakes Overheating
50
Noisy Suspension
52
Electrical System
54
Components Location
56
Ignition Section
58
Checks and Inspections
61
Stator Check
61
Voltage Regulator/Rectifier
62
Manual Intercom
71
Specific Tooling
77
Battery Replacement
82
Index of Topics
84
Automatic Transmission
89
Transmission Cover
89
Removing the Driven Pulley Shaft Bearing
91
Specific Tooling
91
Removing the Driven Pulley
93
Inspecting the Clutch Drum
93
Removing the Clutch
94
Refitting the Driven Pulley
97
Removing the Driving Pulley
100
Transmission Cover Screw
105
Driven Pulley Nut
106
Recommended Products
113
Flywheel Cover
114
Removing the Stator
116
Water Pump Impeller
117
Flywheel Cover Screw
126
Starter Motor
128
Removing the Starter Motor
129
Intermediate Gear
134
Removing the Intake Manifold
139
Removing the Cam Shaft
142
Removing the Cylinder Head
143
Removing the Valves
144
Inspecting the Small End
146
Inspecting the Piston
147
Removing the Piston
149
5
