FAILURE TO OBSERVE THIS INSTRUCTION MAY RESULT IN DESTRUCTION OF THE CERAMIC
MAGNETS.

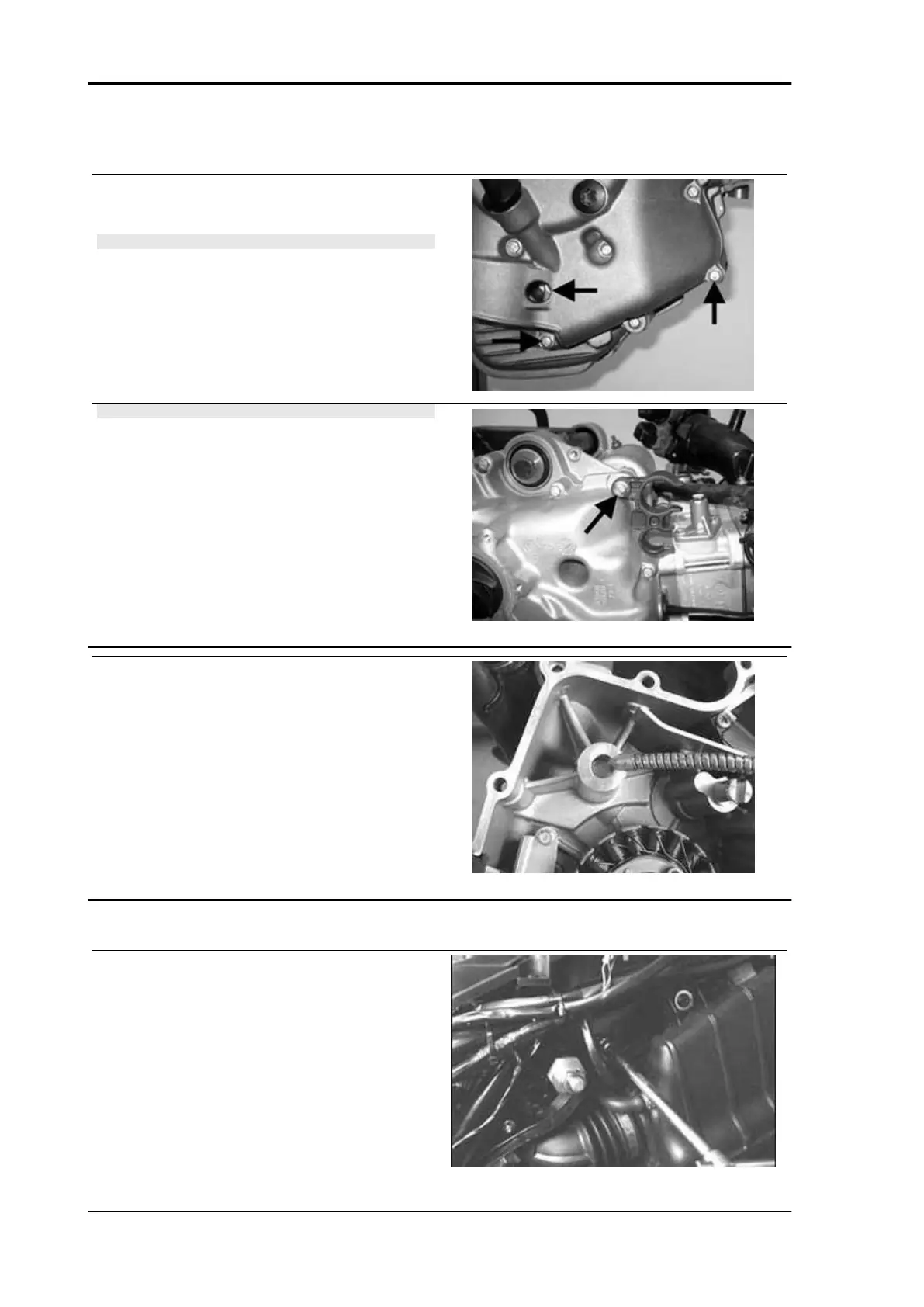

- Tighten the 14 retaining bolts of the cover to the
prescribed torque.
N.B.
THE BOLTS HAVE FOUR LENGTHS:
- THE 3 SHORTEST ARE INSERTED AS SHOWN IN THE
FIGURE.
- THE LONGEST IS INSERTED UNDER THE ENGINE OIL
FILLER PLUG.
N.B.
- THE INTERMEDIATE BOLTS FOR THE REMAINING
MOUNTING POINTS WITH THE EXCEPTION OF THE BOLT
FOR THE MANIFOLD SUPPORT (SHOWN IN THE FIGURE)
ARE SLIGHTLY LONGER.
Locking torques (N*m)
Flywheel cover screws 11 - 13
- Lubricate the intermediate gear seat with torque
limiter on the flywheel cover.
- Align the water pump movement sensor with a
reference and install the flywheel cover as descri-
bed in the Flywheel cover chapter.
Flywheel and starting
The starter is sold as a complete part.
Before deciding to replace it, carry out the follow-
ing tests:
1 - Battery
Check the voltage after not running (a few hours):
Voltage >12.5V
Check the density of the electrolyte of each cell:
Bé = 30 ÷ 32
Engine X9 Evolution 500
ENG - 126
