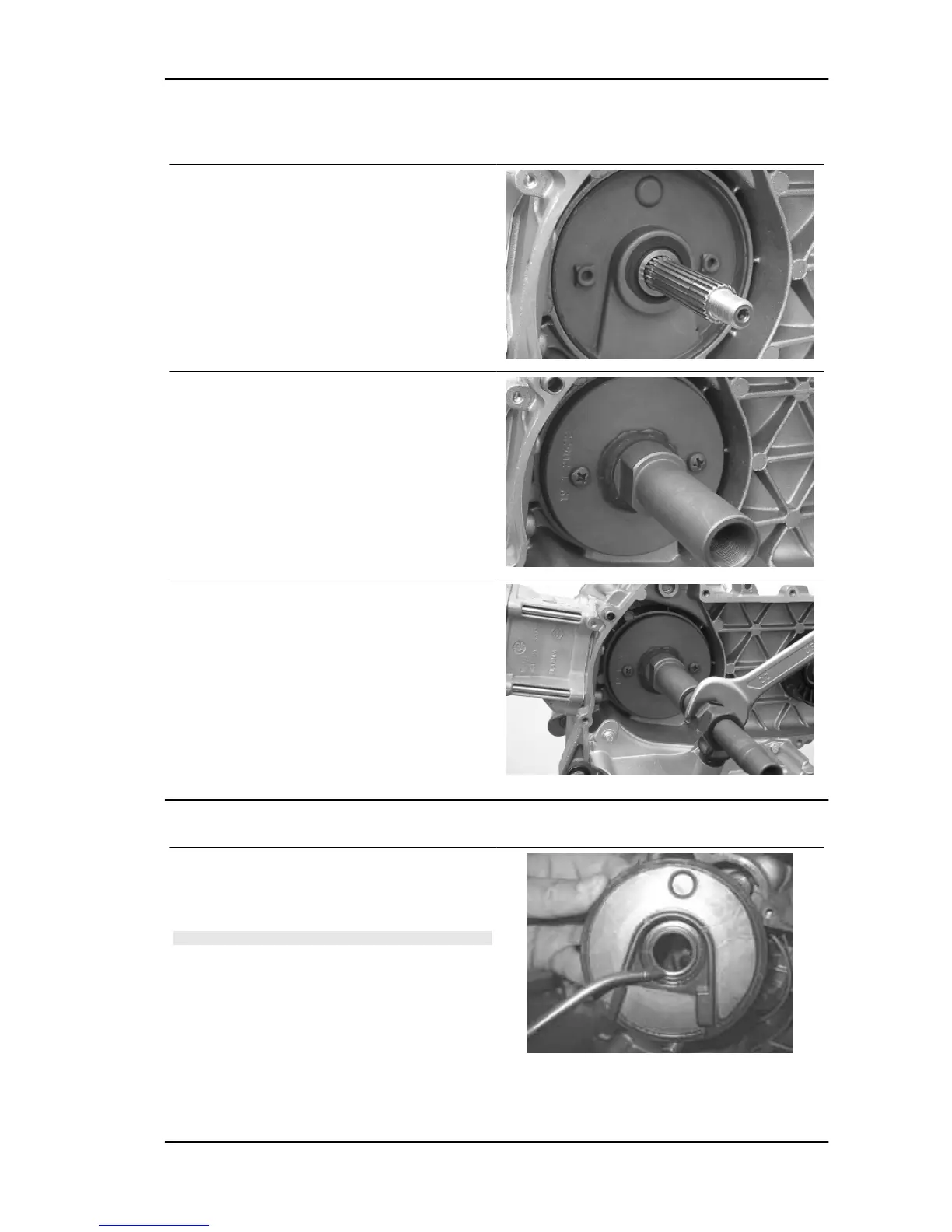

Removal
- First remove the transmission cover and the com-
plete driving pulley
- Install the base of the appropriate tool on the oil
guard using the screws provided.
- Screw the threaded bar onto the base of the tool
and extract the oil guard.
Specific tooling
020622Y Transmission-side oil guard punch
Refitting
- Prepare the new oil guard, lubricating the sealing
lip. Warning: do not lubricate the surface for keying
onto the engine crankcase.
CAUTION
DO NOT LUBRICATE THE SURFACE FOR KEY-
ING ONTO THE ENGINE CRANKCASE.
Fly 125 - 150 4T Engine
ENG - 133
