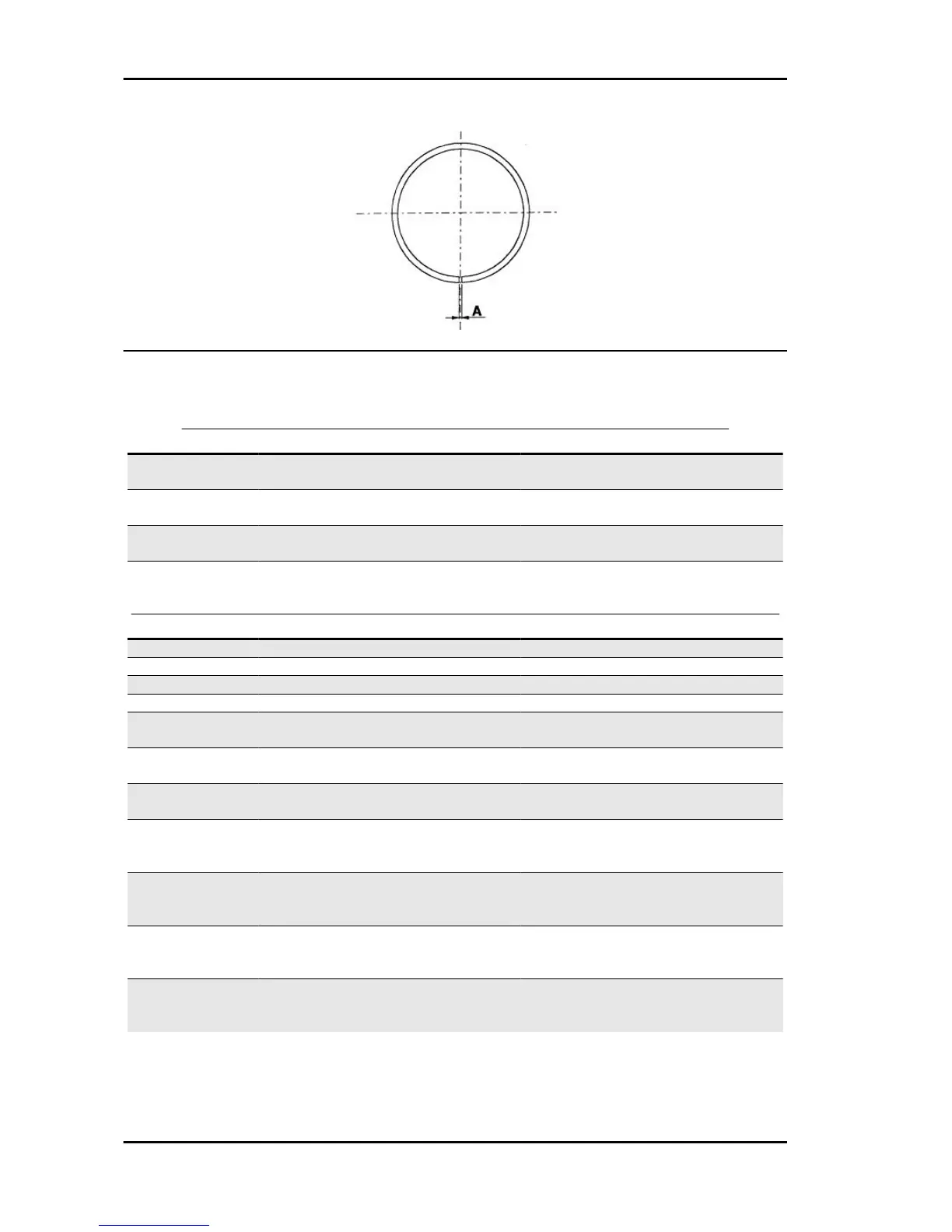

Crankcase - crankshaft - connecting rod
AXIAL CLEARANCE BETWEEN CRANKSHAFT AND CONNECTING ROD
Name Description Dimensions Initials Quantity
Half-shaft, trans-
mission side
16.6 +0-0.05 A D = 0.20 - 0.50
Flywheel-side half-
shaft
16.6 +0-0.05 B D = 0.20 - 0.50
Connecting rod
with PP
18 -0.10 -0.15 C 0.20 ÷ 0.50
Crank pin width 51.400 E
AXIAL CLEARANCE BETWEEN CRANKSHAFT AND CRANKSHAFT HALF-BEARINGS
Name Description Dimensions Initials Quantity
Crankshaft Category 1 28.998 ÷ 29.004
Crankshaft Class 2 29.004 ÷ 29.010
Crankcase Category 1 32.953 ÷ 32.959
Crankcase Category 2 32.959 ÷ 32.965
Crankshaft half-
bearing
Category B - blue 1.973 ÷ 1.976
Crankshaft half-
bearing
Type C - yellow 1.976 ÷ 1.979
Crankshaft half-
bearing
Category E - green 1.979 ÷ 1.982
Crankshaft catego-
ry 1 - Crankcase
category 1
E - E
Crankshaft catego-
ry 1 - Crankcase
category 2
C - C
Crankshaft catego-
ry 2 - Crankcase
category 1
C - C
Crankshaft catego-
ry 2 - Crankcase
category 2
B - B
Crankshaft/crankcase axial clearance: 0.15 ÷ 0.40
