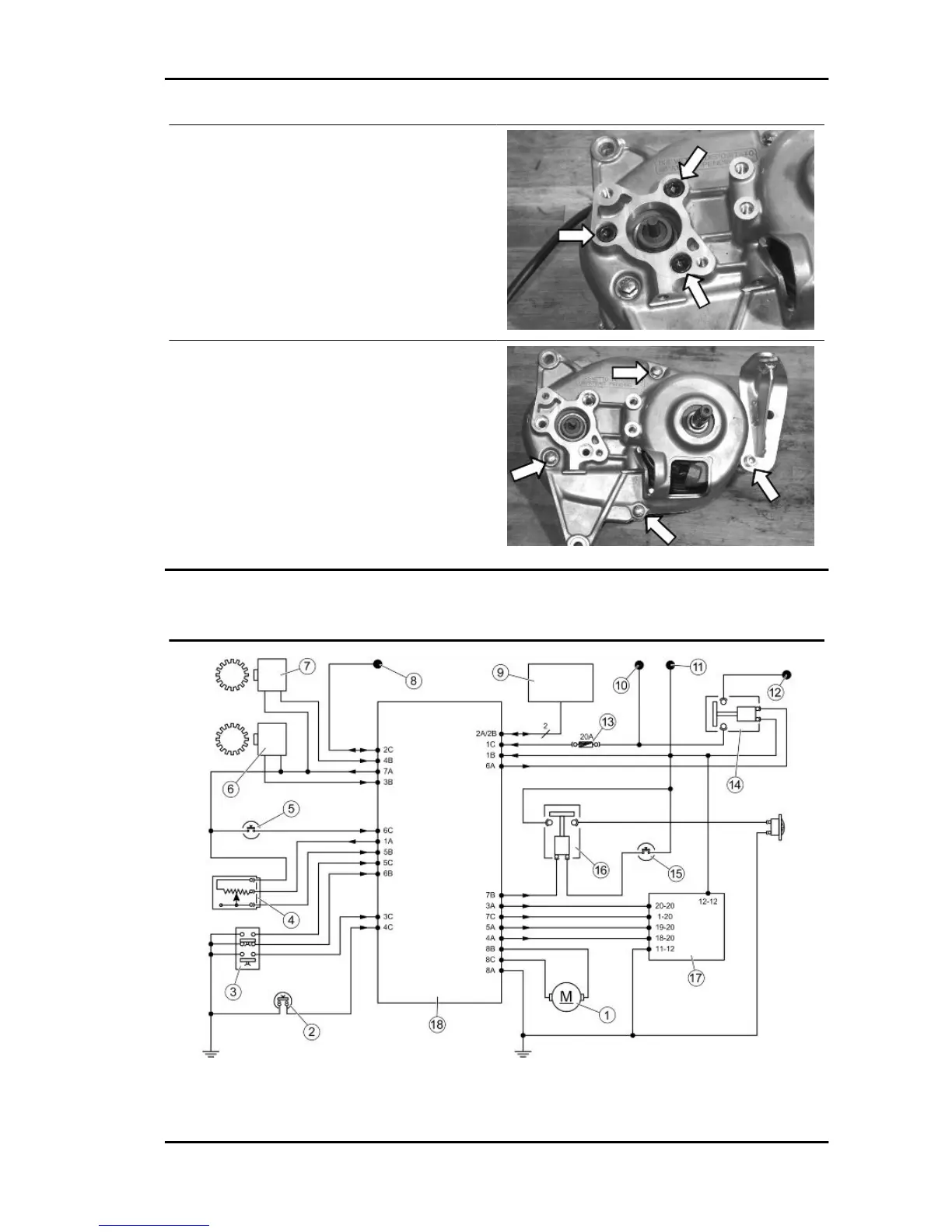

Remove the three fixing screws of the electric mo-
tor.
It is important to mark the direction of the electric
motor position in order to refit it correctly.
Remove the four screws indicated in the figure,
remove the flexible transmission supporting brack-
et, separate the two crankcase halves, if neces-
sary, use a rubber mallet to hit the flexible
transmission lever in order to separate the two
crankcases.
Electrical devices test
PRINCIPLE DIAGRAM FOR TILT LOCKING ELECTRICAL SYSTEM
KEY
1. Geared motor
MP3 400 i.e. Suspensions
SUSP - 29
