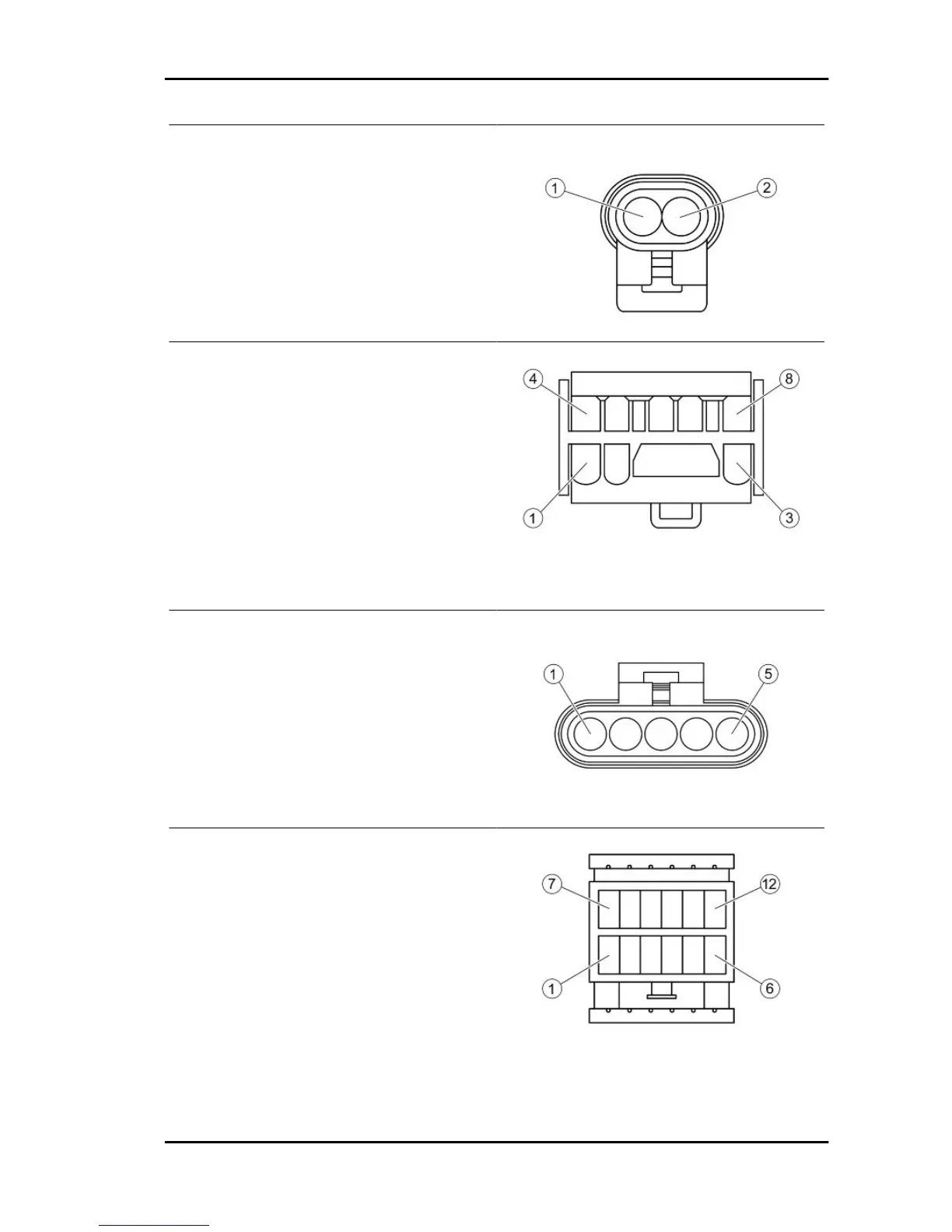

HV COIL CONNECTOR
1. Injection load remote control (Black-Green)
2. Injection electronic control unit (Pink-Black)
ANTI-THEFT DEVICE PRE-INSTALLATION
CONNECTOR
1. LHS Turn indicators (Pink)
2. RHS Turn indicators (White-Blue)
3. Ground (Black)
4. Battery powered (Blue)
5. Live supply (Yellow-Red)
6. Helmet compartment lighting (Blue-Black)
7. Channels 1/3 selector (Green-Blue)
8. Alarm code (Orange-Black)
FUEL PUMP CONNECTOR
1. Injection load remote control (Black-Green)
2. Not connected
3. Not connected
4. Ground (Black)
5. Not connected
INSTRUMENT PANEL CONNECTOR "A"
1. Not connected
2. Not connected
3. Not connected
4. Not connected
5. Instrument panel lighting (Yellow-Black)
6. Battery powered (Red-Blue)
7. Not connected
8. Not connected
9. Not connected
10. Not connected
MP3 400 i.e. Electrical system
ELE SYS - 31
