11. Ground (Black)
12. Live supply (Yellow-Red)

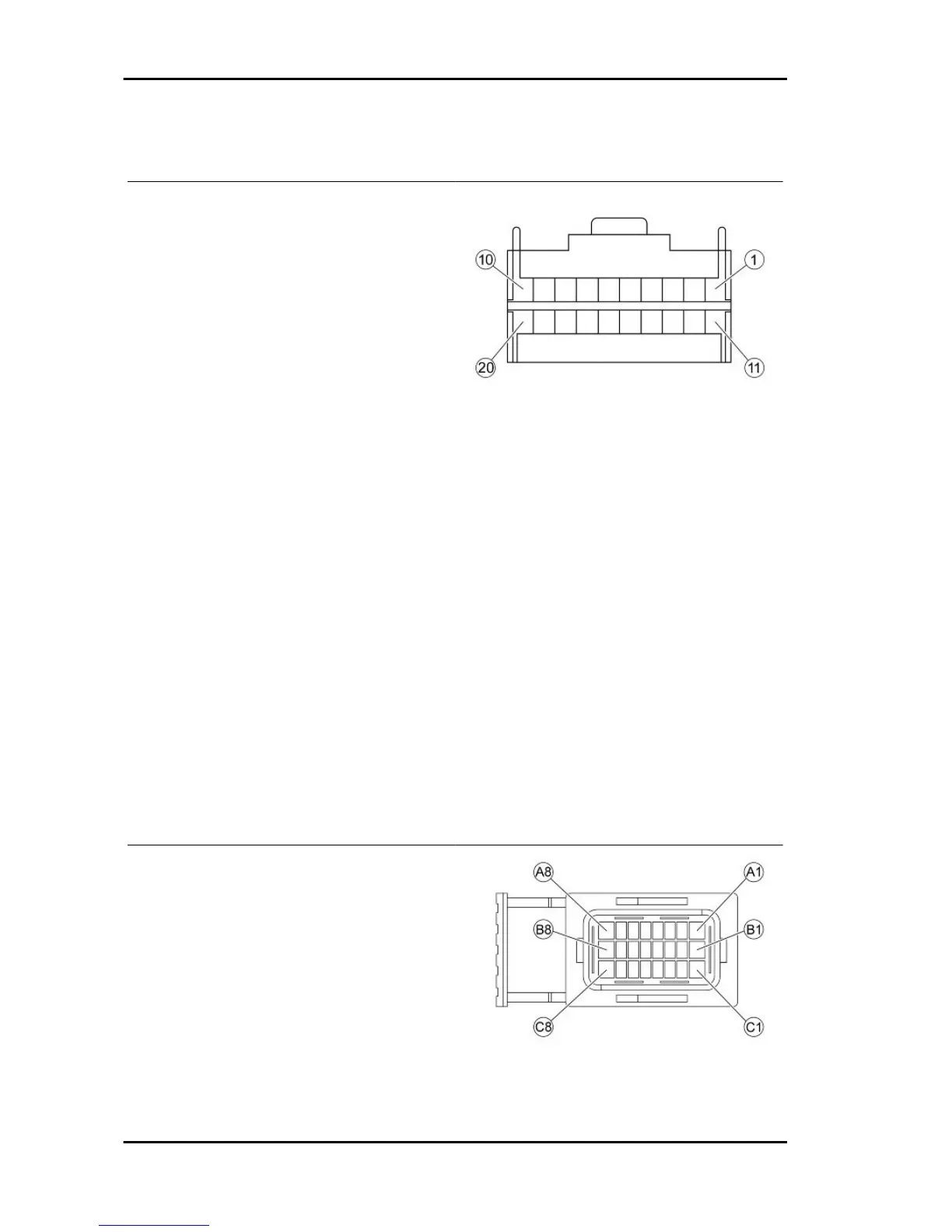

INSTRUMENT PANEL CONNECTOR "B"
1. Scooter speed signal (Sky blue)
2. Fuel level signal (White-Green)
3. Water temperature sensor (Sky blue-Black)
4. Water temperature sensor ground lead (Brown-
White)
5. «MODE» remote button (Green)
6. Oil pressure warning light (Pink-White)
7. LHS Turn indicator warning light (Pink)
8. RHS Turn indicator warning light (White-Blue)
9. High-beam warning light (Purple)
10. Boot open warning light (Blue-Black)
11. Rpm sensor (Yellow)
12. Ambient temperature sensor (Yellow-Blue)
13. Ambient temperature sensor ground lead
(White-Yellow)
14. Engine disabled warning light (Orange-Blue)
15. Immobilizer warning light (Red-Green)
16. Engine check warning light (Brown-Black)
17. Parking brake warning light (Yellow-Grey)
18. Tilt locking activated warning light (Pink-Black)
19. Tilt locking system failure warning light (Grey-
Black)
20. Live supply from the parking control ECU (Yel-
low-Green)
PARKING CONTROL ECU CONNECTOR
1A. Potentiometer supply (Orange-Blue)
2A. CAN "L" Line (White-Blue)
3A. Warning light supply (Yellow-Green)
4A. Tilt locking activated warning light (Pink-
White)
5A. Tilt locking system failure warning light (Grey-
Black )
6A. Headlight remote control (White-Black)
Electrical system MP3 400 i.e.
ELE SYS - 32
