7.31
FINAL DRIVE
7

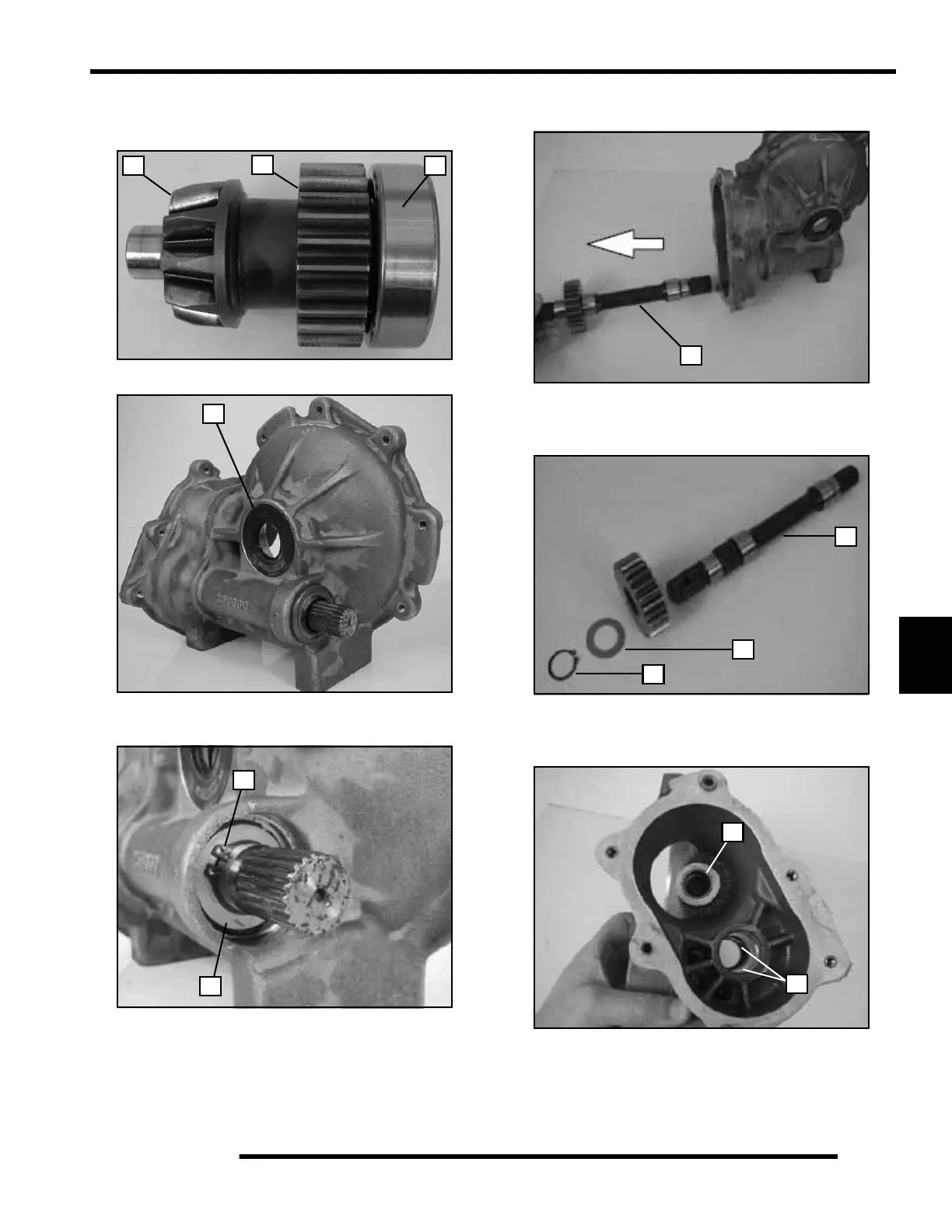

9. Inspect the pinion gear (K) and 26T output gear (L) for nics
or uneven wear. Inspect the bearing (M), the bearing should
spin smoothly. Replace the parts as needed.
10. Remove the rear output seal (N).
11. Remove the retaining ring (O) and shim (P) from the rear
output thru shaft.
12. Carefully pull the output thru shaft (Q) through the
gearcase.
13. Remove the retaining ring (O), shim (P), and input gear (R)
from the output shaft (Q). Inspect the input gear for
abnormal wear, broken, or chipped teeth.
14. Inspect the two flange bearings (S) inside the gearcase.
Inspect the pinion shaft bushing (T) for wear that is inside
the gearcase.
K
L
M
N
O
P
Q
Q
P
O
S
T
To Next Page
