Polaris RZR 570 2015 Service Manual

7
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.
7.5

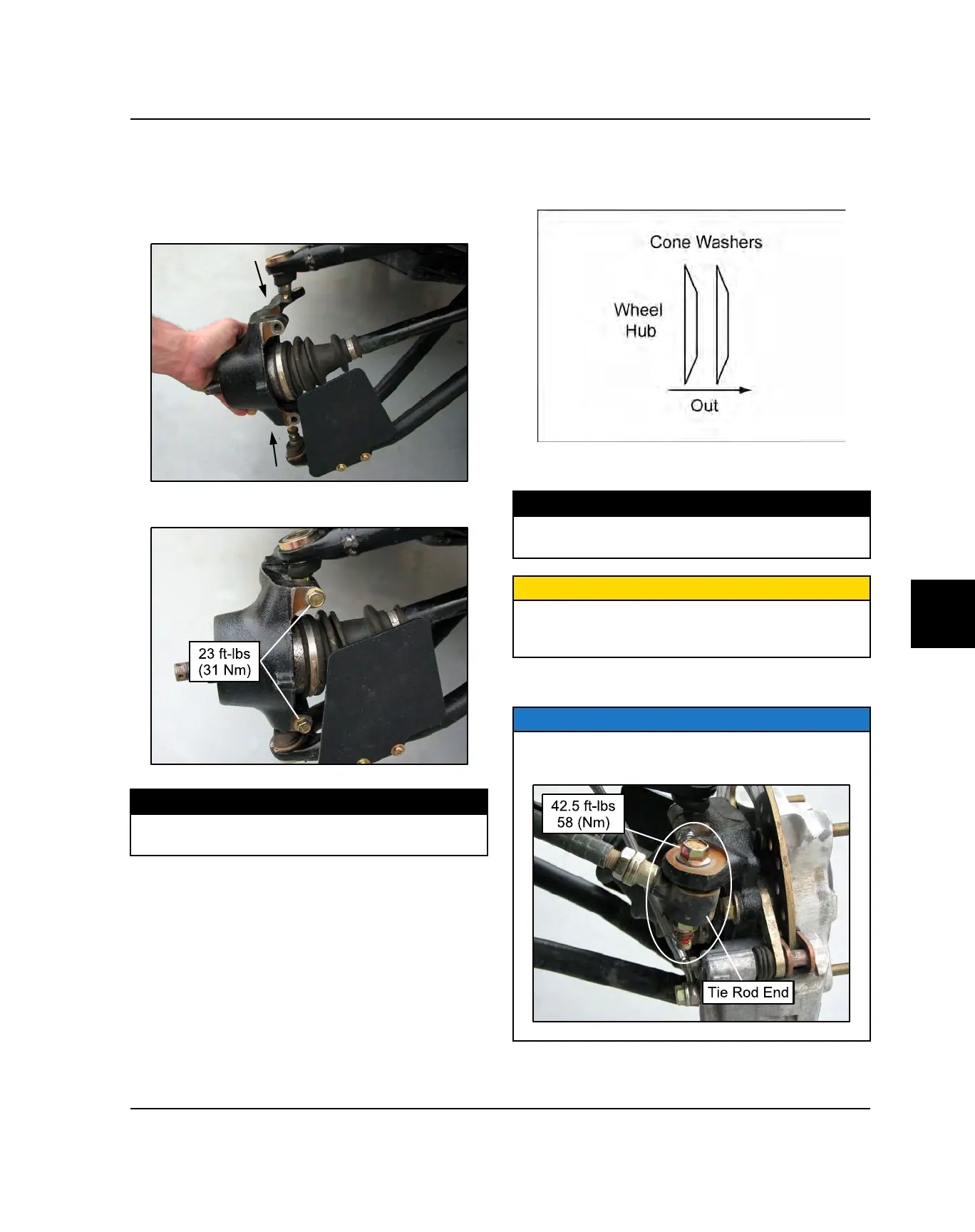

FRONT BEARING CARRIER INSTALLATION
1. Install drive shaft axle through the backside of the
bearing carrier.
2. Install the upper and lower ball joint ends into the
front bearing carrier.
3. Install pinch bolts and torque to specification.
TORQUE
Ball Joint Pinch Bolts:
23 ft-lb (31 Nm)
4. Apply grease to drive shaft axle splines.
5. Install front wheel hub assembly, cone washers, and
hand tighten the castle nut. Install washers with
domed side out.
6. Install brake caliper mounting bolts and torque to
specification.
TORQUE
Front Caliper Mounting Bolts:
30 ft-lbs (41 Nm)
CAUTION
New bolts have a pre-applied locking agent which is
destroyed upon removal. Always use new brake caliper
mounting bolts upon assembly.
7. Install the steering tie rod end onto the front bearing
carrier.
NOTE
Refer to the photos below to ensure proper placement
of the tie rod end.
FINAL DRIVE
