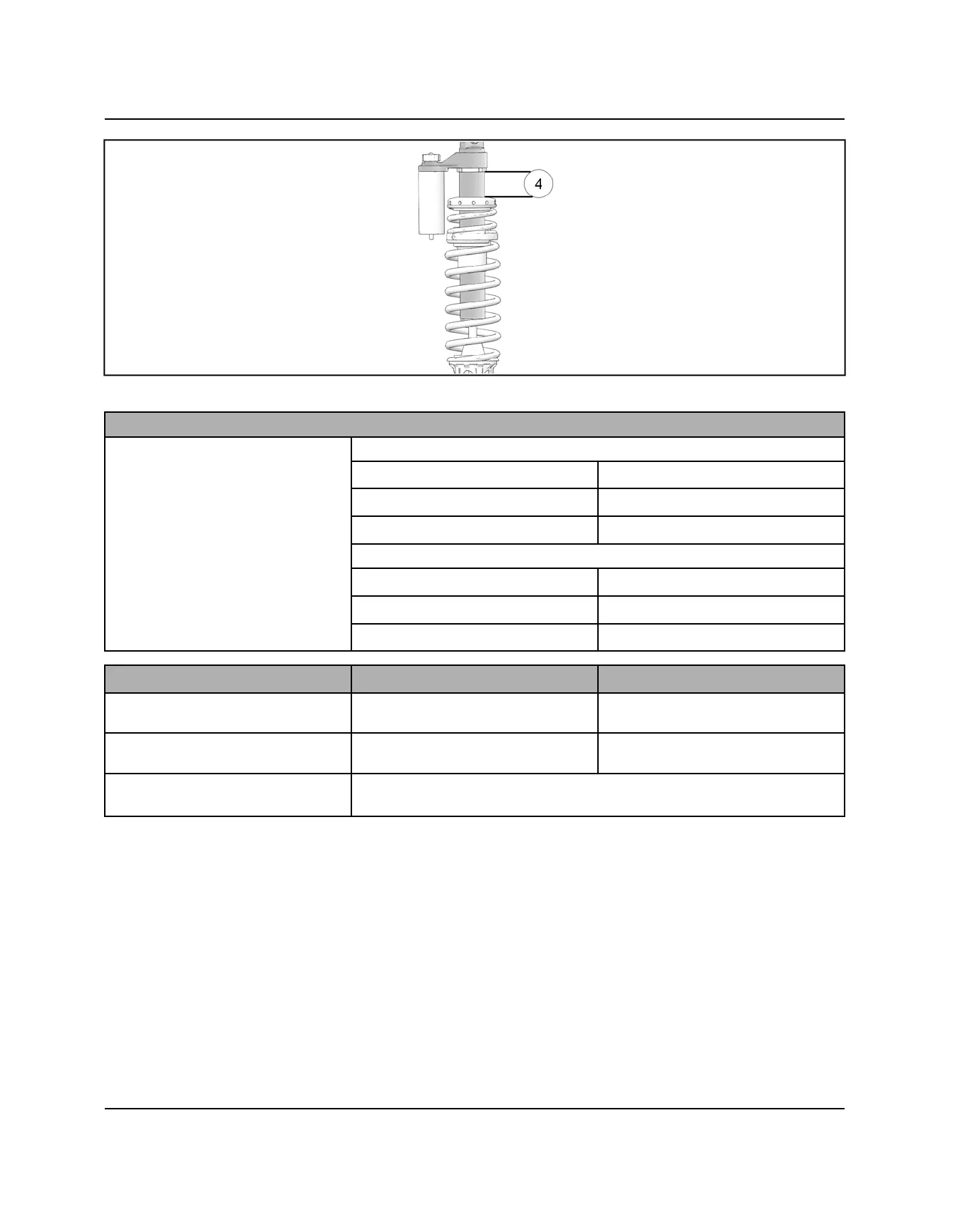

PRELOAD ADJUSTMENT
FACTORY DEFAULT PRELOAD SETTINGS
RZR ProXP
DYNAMIX
Front
3.06 inches (7.8 cm)
Rear (7 Coil Tender Spring) 10.25 inches (26.0 cm)
Rear (5 Coil Tender Spring) 10.79 inches (27.4 cm)
NON-DYNAMIX
Front
2.90 inches (7.4 cm)
Rear (7 Coil Tender Spring) 7.73 inches (19.6 cm)
Rear (5 Coil Tender Spring) 8.30 inches (21.1 cm)
SHOCK LOCATION
Preload Setting Max Setting
Front Shock
+0.5 inch (12.7 mm) Per 100 lbs
added to front
+ 1.0 inches (25.4 mm)
Rear Shock
+0.75 inch (19.05 mm) per 100 lbs
added to rear
+ 1.5 inches (38.1 mm)
Both Shocks
If weight is added to the center of the unit, split the preload setting
accordingly between the front and rear.
