9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual

3.63

ENGINE DISASSEMBLY / INSPECTION - BOTTOM END

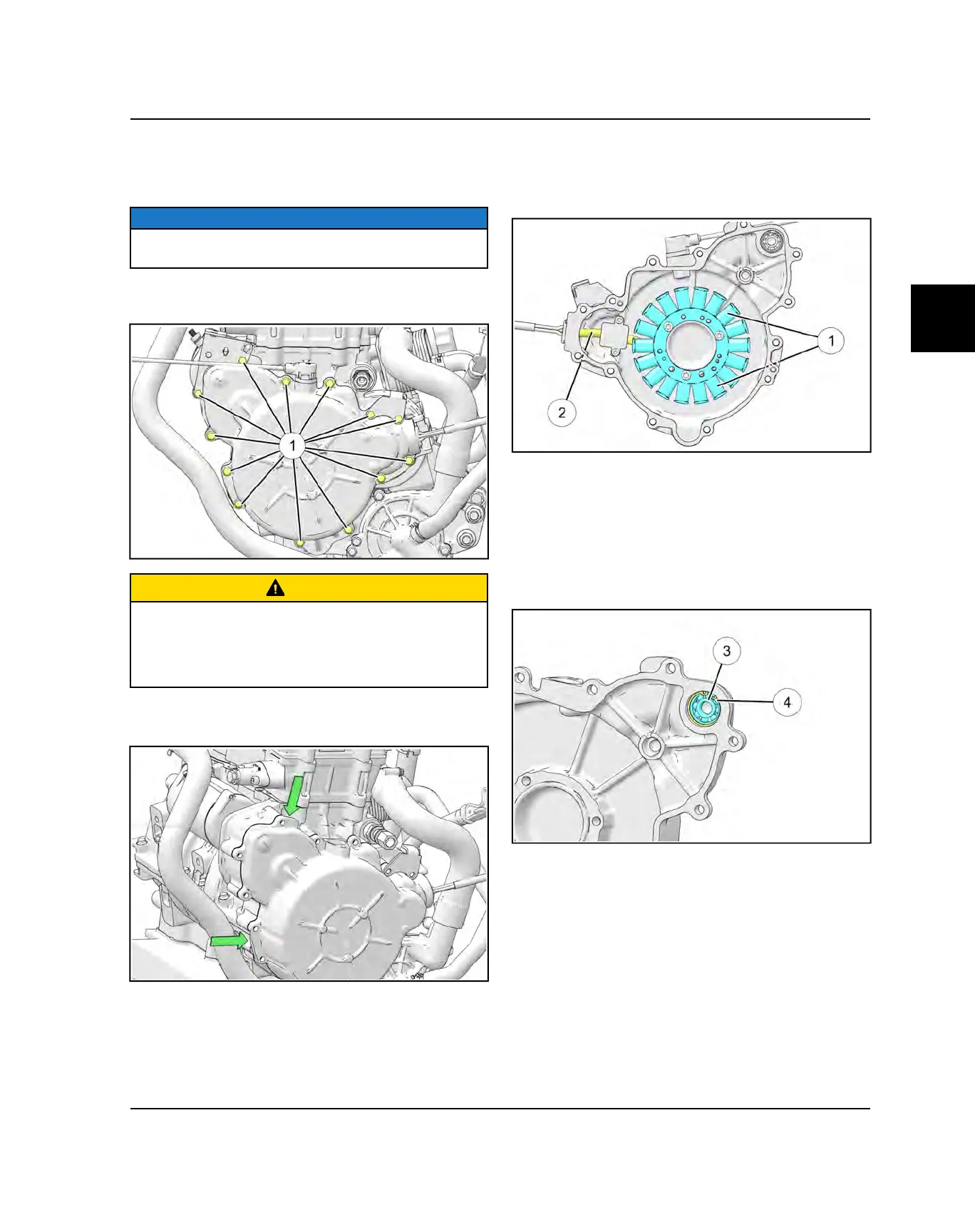

STATOR COVER REMOVAL /

INSPECTION

NOTICE

The stator cover can be removed with the engine

installed in the chassis.

1. Remove the thirteen screws

retaining the stator

cover.

CAUTION

The flywheel contains powerful magnets. Use caution

when removing and installing the stator cover. DO NOT

place fingers between cover and crankcase at any time

during the removal / installation process or injury could

result.

2. Carefully pry the stator cover off the engine using the

two pry areas as shown below.

3. Inspect the condition of the stator windings

and

output wires

. If replacement is required, refer to the

Electrical Chapter.

4. Inspect the ball bearing that supports the starter

motor shaft.

5. If bearing

replacement is required, remove the

retaining ring

and heat the stator cover around the

bearing evenly with a heat gun. Tap cover on a soft

work surface to remove the bearing from the housing.

A blind bearing puller can also be used. Replace

bearing if removed.

ENGINE / COOLING SYSTEM
