3.68

9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual

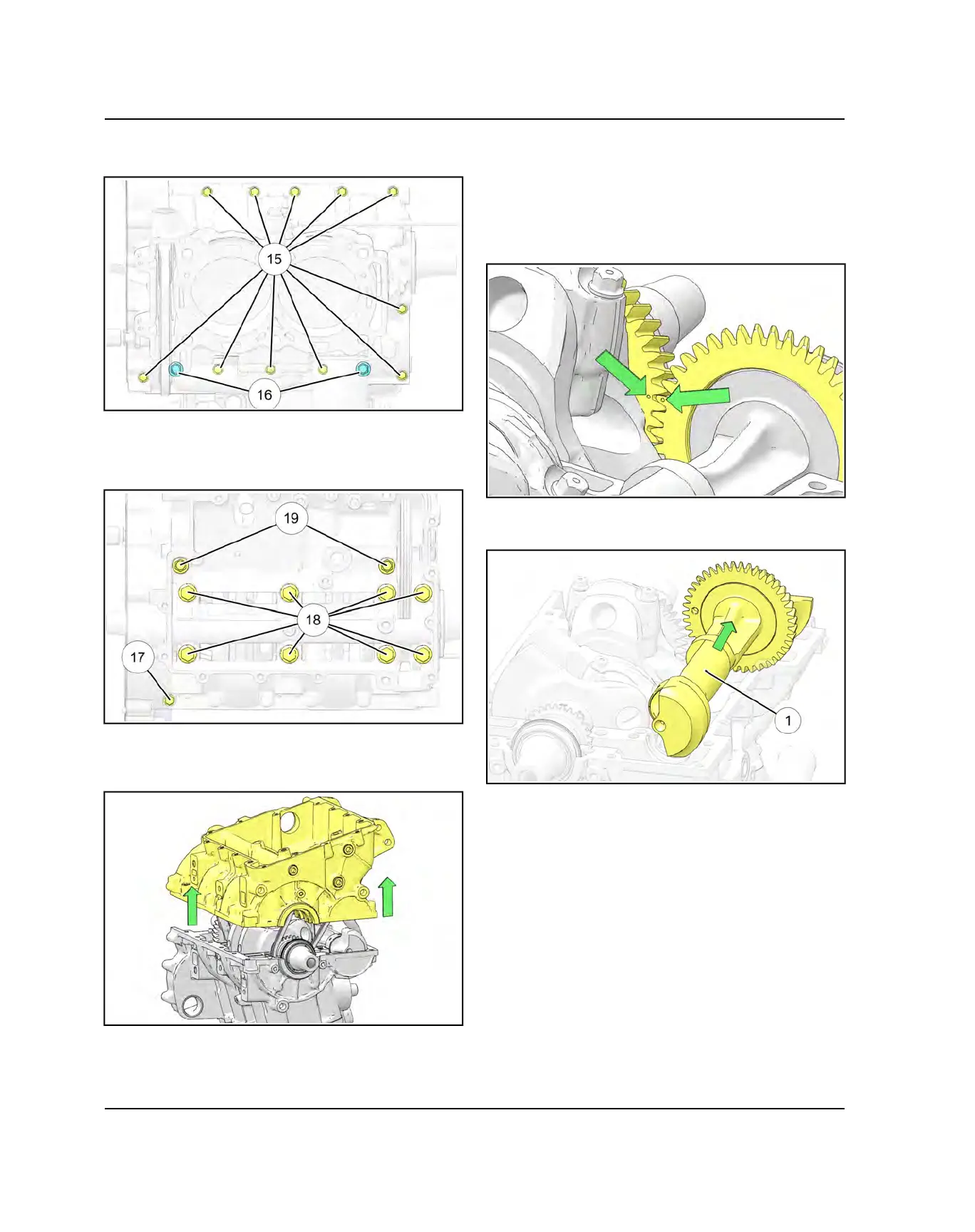

14.Remove the eleven M6

and two M8

upper

crankcase bolts.

15.Rotate the engine so the cylinder is facing down.

16.Remove the one M6

, eight M10

and two M8

lower crankcase bolts. Discard the eight M10 bolts.

17.Tap on the lower crankcase in reinforced areas with a

soft faced hammer to loosen. Carefully lift up and

remove the lower crankcase half.

BALANCE SHAFT REMOVAL /

INSPECTION

1. Perform Crankcase Disassembly page 3.66.

2. Note timing marks on balance shaft and crankshaft

drive gears. Shafts must be properly timed upon

assembly.

3. Carefully rotate the balance shaft

and remove it

from the crankcase.

4. Inspect the balance shaft gear teeth for damage.

ENGINE / COOLING SYSTEM
