9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
3.33

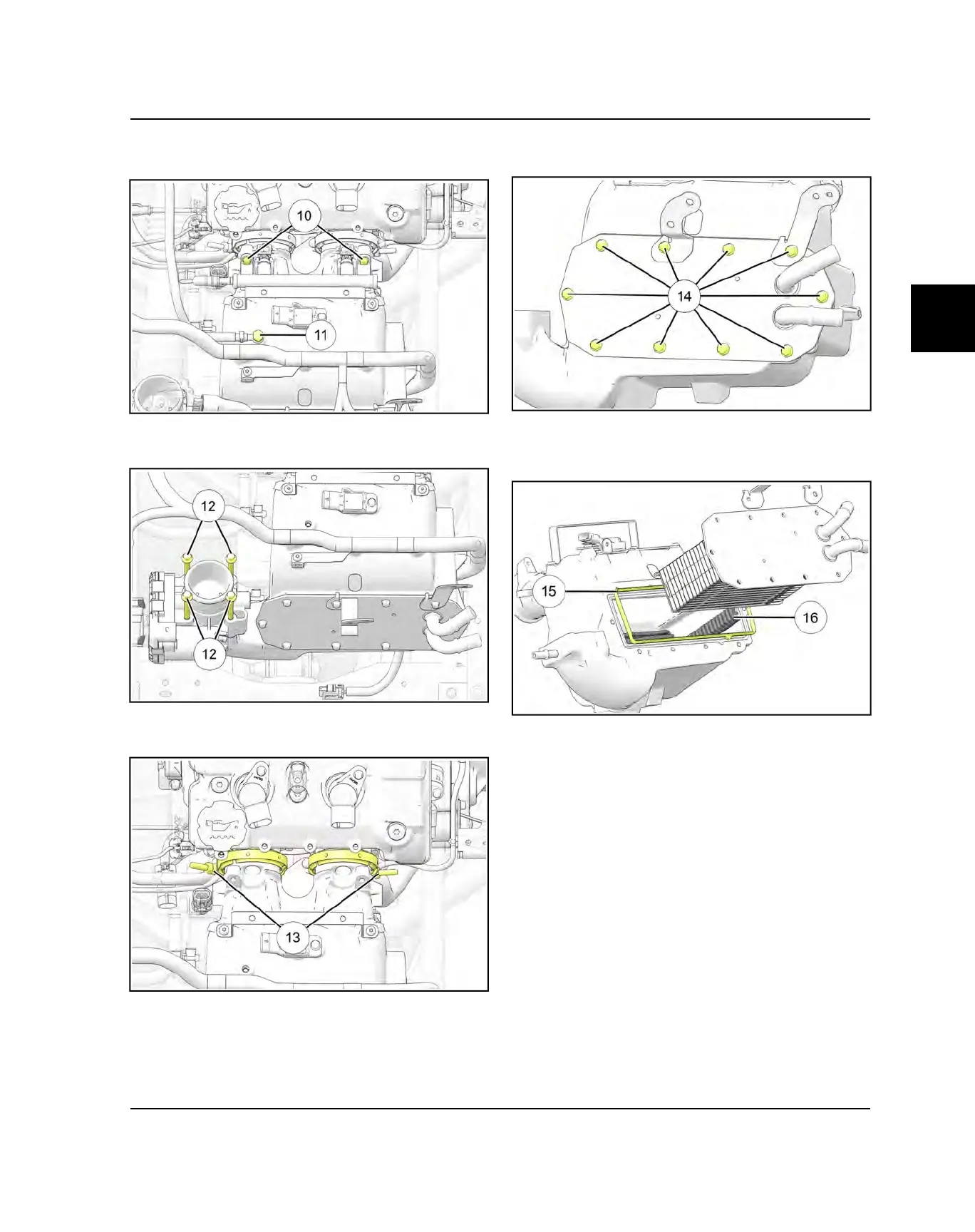

10.Remove the fastener
s
retaining the manifold air
pressure reference hose banjo fitting.
11. Remove the four fasteners
d
retaining the throttle
body/ETC to the intake manifold.
12.Loosen the clamps
f
retaining the intake manifold to
the engine.
13.Carefully remove the intake manifold out the
passenger side of the vehicle.
14.Remove the fasteners
g
retaining the charge air
cooler to the intake manifold.
15.Replace the seal
h
any time the charge air cooler is
removed. Also inspect the side/bottom air dam
j
for
any damage.
