9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.

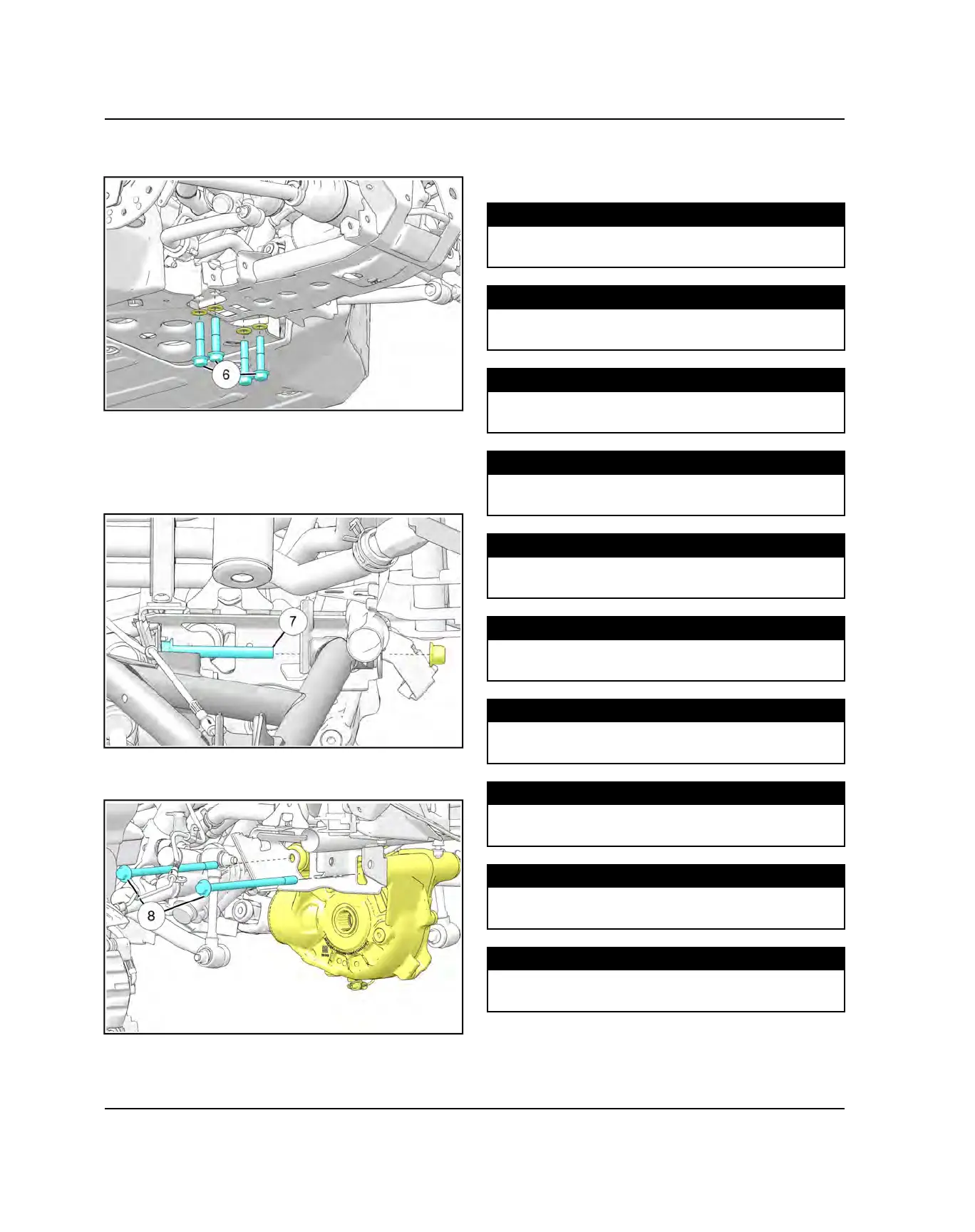

9. Remove four rear bolts
y
from front sub frame to
main frame.
10.Remove front sub frame.
11. Remove roll pin from front driveshaft.
12.Remove upper control arm front bolt and pry A arm
up to remove front diff mounting bolt
u
.
13.Remove gearcase fasteners
i
and remove gearcase
from vehicle. Discard fasteners.
INSTALLATION
1. Reverse removal procedure for front gearcase
installation.
TORQUE
Front Gearcase Mounting Fasteners:
52 ft-lbs (70 Nm) + 270°
TORQUE
Control Arm Fasteners:
74 ft-lbs (100 Nm)
TORQUE
Sub Frame Mounting Fasteners (Rear):
148 ft-lbs (200 Nm)
TORQUE
Sub Frame Mounting Fasteners (Front):
33 ft-lbs (45 Nm)
TORQUE
Tie Rod End Nut:
30 ft-lbs (40 Nm) + 90°
TORQUE
Ball Joint Fasteners:
44 ft-lbs (60 Nm)
TORQUE
Wheel Hub Castle Nut:
180 ft-lbs (244 Nm)
TORQUE
Front Caliper Mounting Bolts:
33 ft-lbs (45 Nm)
TORQUE
Front Bumper Mounting Fasteners:
30 ft-lbs (40 Nm)
TORQUE
Front Bumper Cover Mounting Fasteners:
7 ft-lbs (10 Nm)
