Polycom VSX 3000 User Manual

Setting Up Your System Hardware
2 - 23
Placing a SoundStation VTX 1000 Phone to Send Stereo from Your Site
The VSX set-top and component systems allow you to send stereo using a
SoundStation VTX 1000 conference phone, with or without extension
microphones.

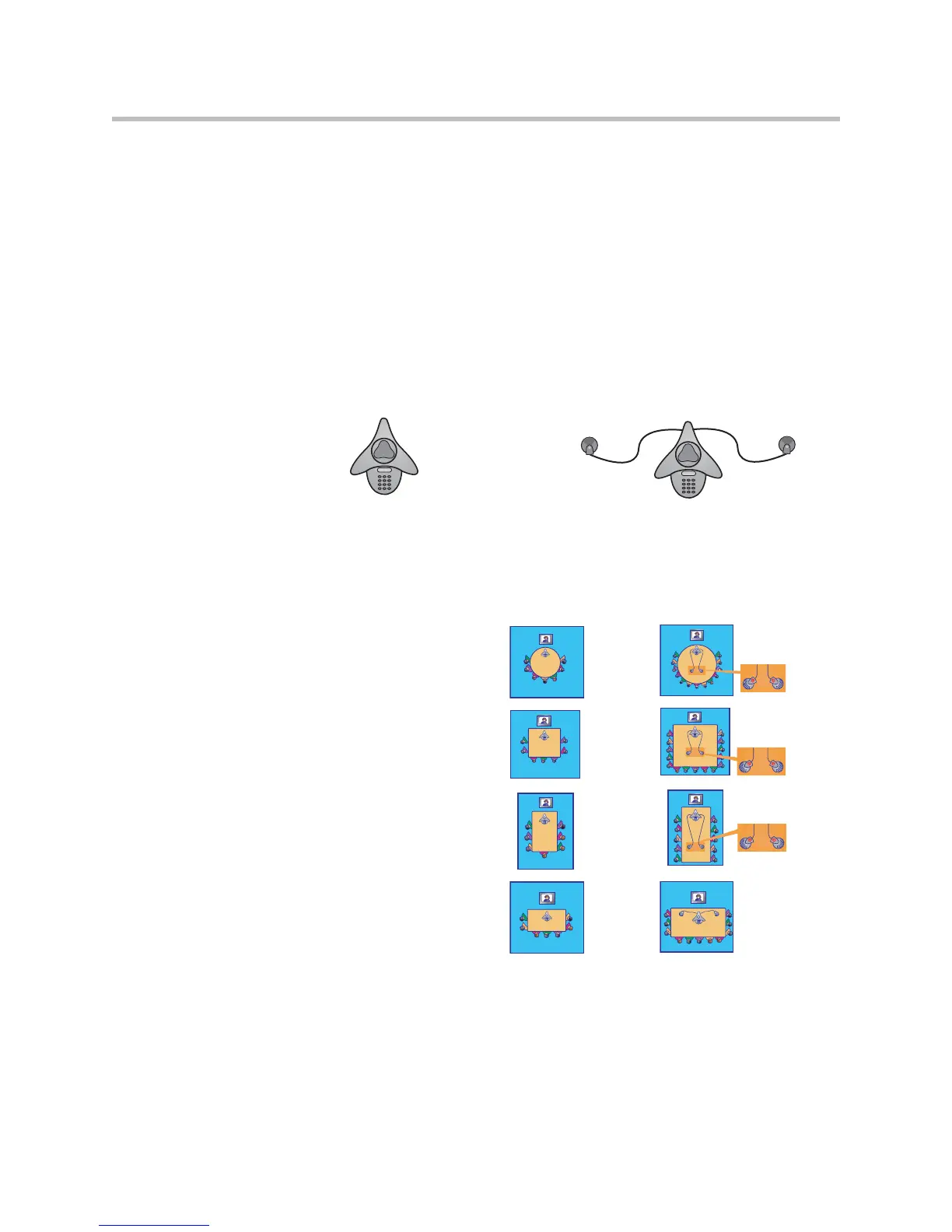

The SoundStation VTX 1000 contains three microphone elements, just as
Polycom microphones do. When StereoSurround is enabled, one microphone
element picks up audio from the left side of the room, one picks up the right
side of the room, and the third is disabled, as shown in the following diagram.
The following illustrations show how to place the SoundStation VTX 1000
conference phone for different room layouts.
Position the SoundStation VTX 1000 so that:
• The keypad should be pointing away from the monitor.
• The SoundStation VTX 1000 should be parallel with, or in front of, the
person nearest the monitor.
left
right
not used
left
right
left
right
not used
Stereo using a
SoundStation VTX 1000
Stereo using a
SoundStation VTX 1000 with
microphones
Square Table
Long Table
Wide Table
Round Table
SoundStation
VTX 1000
SoundStation
VTX 1000 with
microphones
