Chapter 1 Quick Start
Autoloader Components
4 LTO Ultrium 8-Slot Autoloader User’s Guide

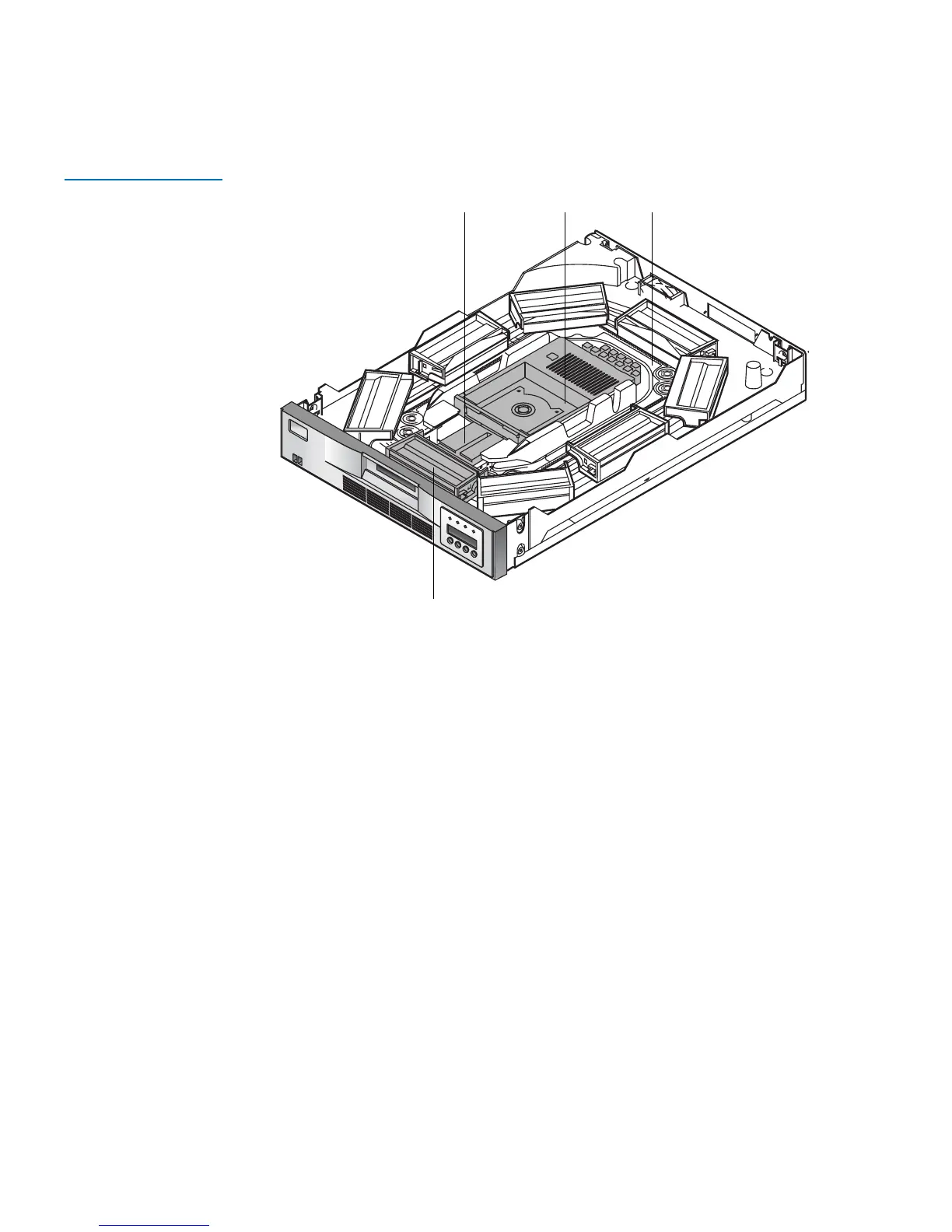

Figure 3 Internal
Components
• Cartridge loader — The cartridge loader moves cartridges between
the cartridge slots and the tape drive. When a cartridge slot is
positioned in front of the tape drive, the loader grips the sides of the
cartridge and slides it forward or backward, between the slot and
tape drive. The loader then releases the cartridge and pushes it firmly
into the drive or slot.
•
Tape drive — The autoloader contains one tape drive. Please see the
associated User's Guide for the particular LTO version for details of
tape drive performance and operation.
•
Cartridge slots and carousel — The carousel stores up to eight data
cartridges. The carousel consists of a drive chain, guides, and gears
that move the cartridges into position in front of the tape drive. Each
cartridge is installed in a cartridge slot that ensures that the cartridge
is properly aligned to be inserted into the tape drive. If desired, you
can use one cartridge slot to hold a cleaning cartridge.
Cartridge slots
Cartridge loader Tape drive Carousel
