Quantum QXS Series User Manual

Chapter 6: LEDDescriptions
LEDs for 12-, 24-, 48-Drive Systems
QX and QXS Setup Guide 161
LEDs for 24-Drive RAID Chassis (2U24)

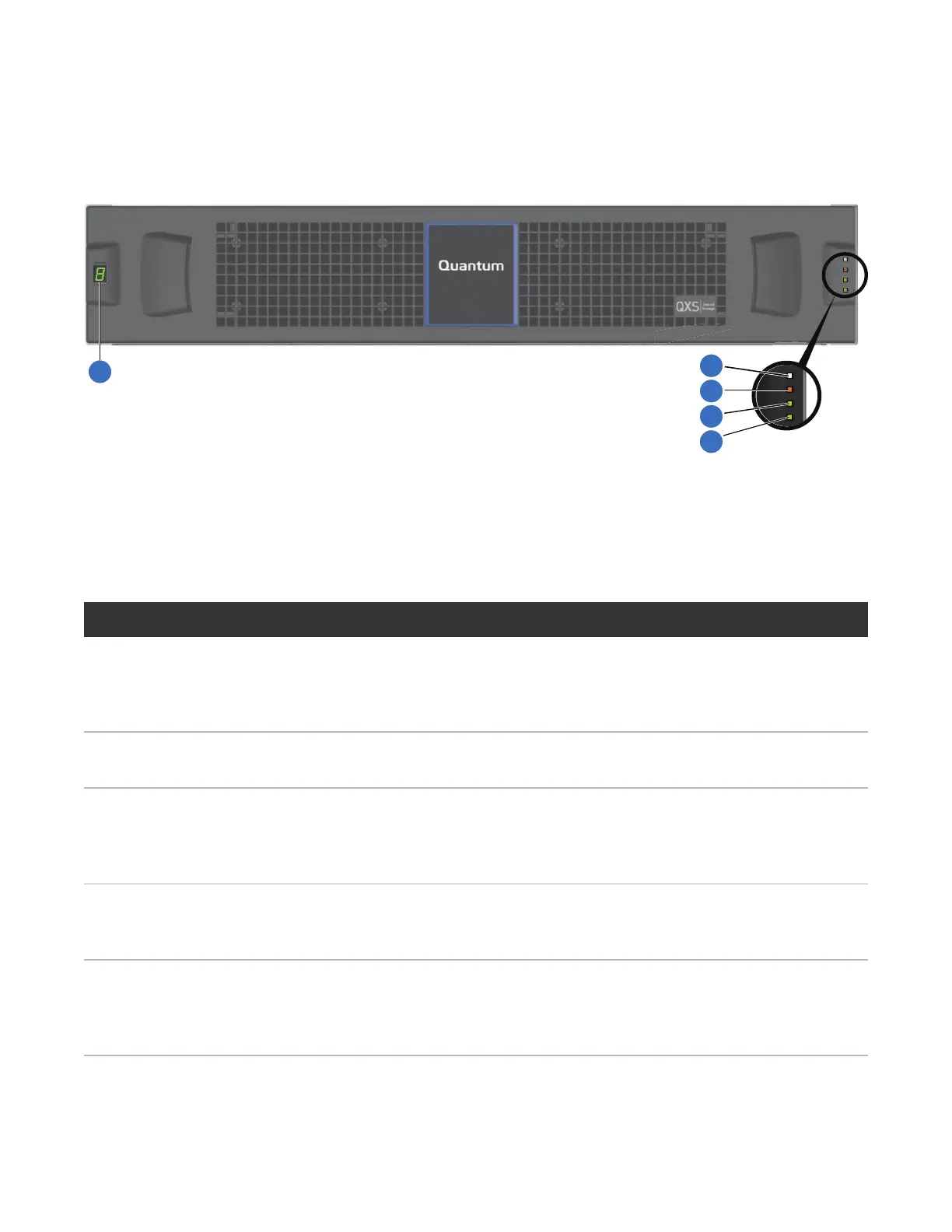

Figure113:2U Drive Chassis (Bezel Installed)
5
6
7
8
1
2
3
4
5
1. ChassisIDLED
2. ChassisStatusLED:UnitLocator
3. ChassisStatusLED:Fault/ServiceRequired
4. ChassisStatusLED:FRUOK
5. ChassisStatusLED:TemperatureFault
LED Description Definition
1 Chassis ID
LED
Green — On
Enables you to correlate the chassis with logical views presented by management
software. Sequential chassis ID numbering of RAID Chassis begins with the integer 0.
The chassis ID for an attached expansion chassis is nonzero.
2 Unit Locator White blink — Chassis is identified
Off — Normal operation
3 Fault/Service
Required
Amber — On
Chassis-level fault condition exists. The event has been acknowledged but the
problem needs attention.
Off — No fault condition exists.
4 FRU OK Green — On
The chassis is powered on with at least one power supply operating normally.
Off — Both power supplies are off; the system is powered off.
5 Temperature
Fault
Green — On
The chassis temperature is normal.
Amber — On
The chassis temperature is above threshold.
Table42:LEDs for 12-Drive RAID Chassis front panel (bezel installed)
