Quantum QXS Series User Manual

Chapter 1: Components
QXS-656 System
QX and QXS Setup Guide 43
QXS-656 I/O Controller Module – Rear Panel
Components
The I/O Controller Module has two model types, converged network controller (CNC) or HD mini-SAS. The
models can be configured as follows:
l Host CNC ports configured with SFPs supporting the following:
o
4/8/16 Gb FC
o
10GbE iSCSI
o
1 Gb RJ-45
l Host interface ports configured with 12 Gbit/s HD mini-SAS (SFF-8644) connectors.
Host CNC Ports Configured with SFPs (FC or iSCSI)
The following figure shows CNC ports configured with SFP+ transceivers that support 4, 8, or 16 Gb FC, or
10 GbE iSCSI connections. The SFPs look identical. Refer to the CNC LEDs that apply to the specific
configuration of your CNC ports.

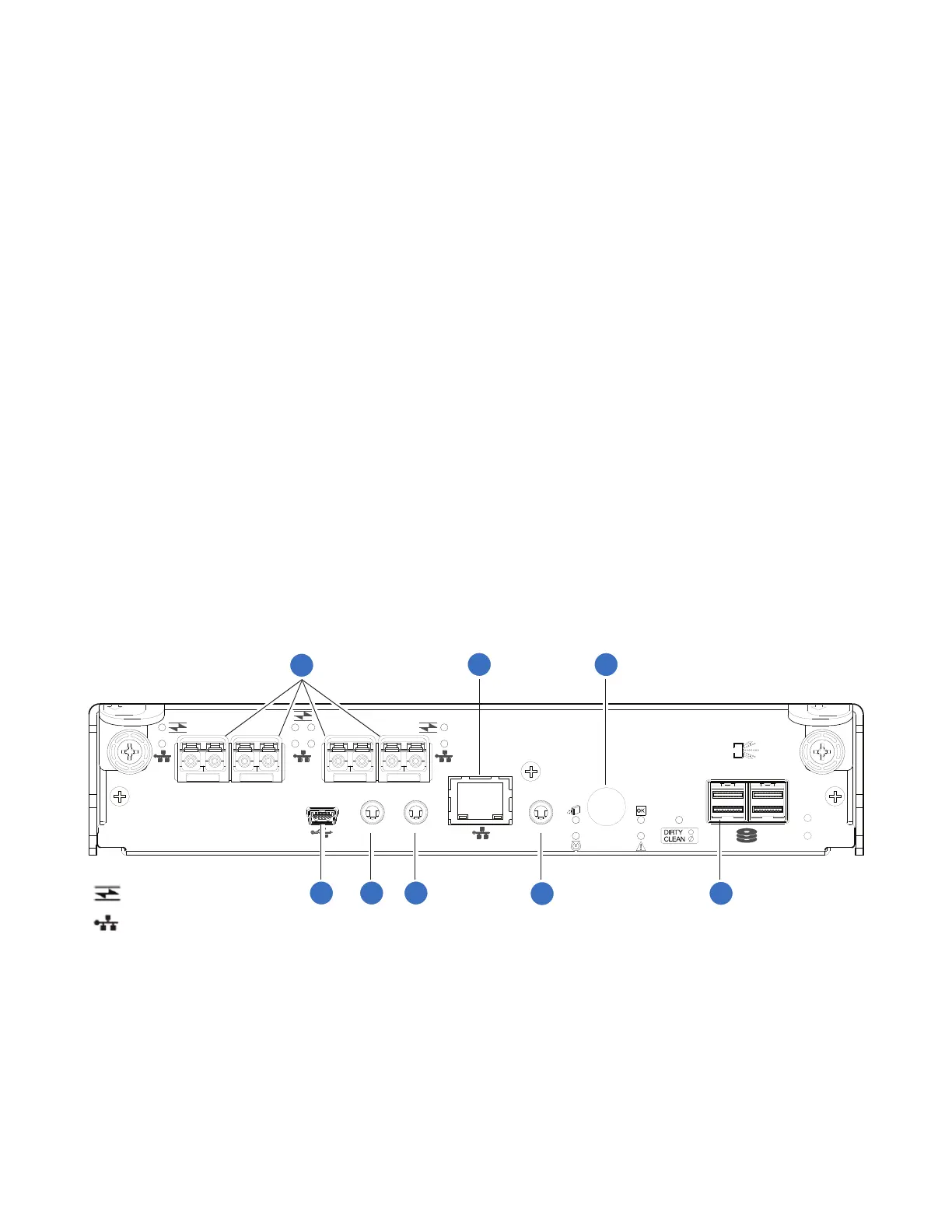

Figure52:Controller I/O Module with FC or iSCSI Host CNC Ports
CACHE
CLI
CLI
LINK
ACT
S ERVICE−1S ERVICE−2
PORT 0 PORT 1 PORT 2 PORT 3
MGMT
EXP 0 EXP 1
6Gb/s
S
S
A
LINK 0
LINK 1
5
2 3 6 8
1
7
4
= FC LEDs
= 10GbE iSCSI LEDs
1
2
3 4
5
6
7
8
1. CNCFCoriSCSISFP+(portsusedforhost
connectionorreplication)
2. CLIPort(USB-TypeB)
3. ServicePort2(ServicePersonnelUseOnly)
4. ReservedforFutureUse
5. NetworkPort
6. ServicePort1(ServicePersonnelUseOnly)
7. DisabledButton(usedbyengineeringonly)
(Stickershowncoveringtheopening)
8. Mini-SASExpansionPort
