Quantum QXS Series User Manual

Chapter 1: Components
QXS-656 System
QX and QXS Setup Guide 39

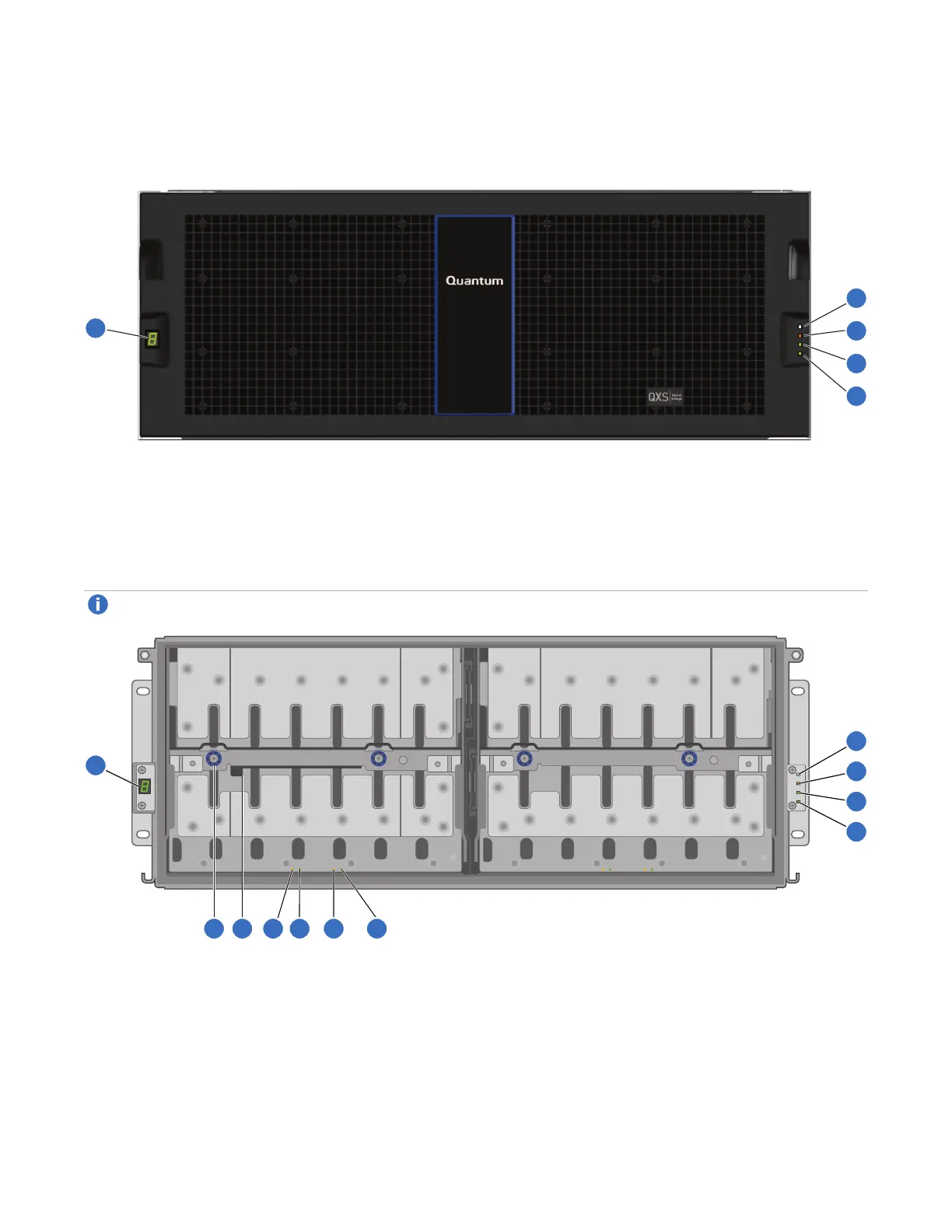

Figure47:4U56 Drive Chassis (Bezel Installed)
1
2
3
4
5
1. ChassisIDLED
2. ChassisStatusLED:UnitLocator
3. ChassisStatusLED:Fault/ServiceRequired
4. ChassisStatusLED:FRUOK
5. ChassisStatusLED:TemperatureFault
Figure48:4U56 Drive Chassis (Bezel Removed)
Note:Drawer 0 is on the left of the chassis and Drawer 1 is on the right.
1
2
3 4
5
6
7
8
9
10
11
1. ChassisIDLED
2. Thumbscrew(forsecuringoraccessingdrawer)
3. DrawerHandle(showninstowedposition)
4. DrawerStatusLED:UnitLocator
5. DrawerStatusLED:OKtoRemove
6. DrawerStatusLED:Fault/ServiceRequired
7. DrawerStatusLED:FRUOK
8. ChassisStatusLED:UnitLocator
9. ChassisStatusLED:Fault/ServiceRequired
10. ChassisStatusLED:FRUOK
11. ChassisStatusLED:TemperatureFault
