Quectel SG368Z Series User Manual

Smart Module Series
SG368Z_Series_Hardware_Design 98 / 113
7 Mechanical Information
This chapter describes the mechanical dimensions of the module. All dimensions are measured in
millimeter (mm), and the dimensional tolerances are ±0.2 mm unless otherwise specified.
7.1. Mechanical Dimensions

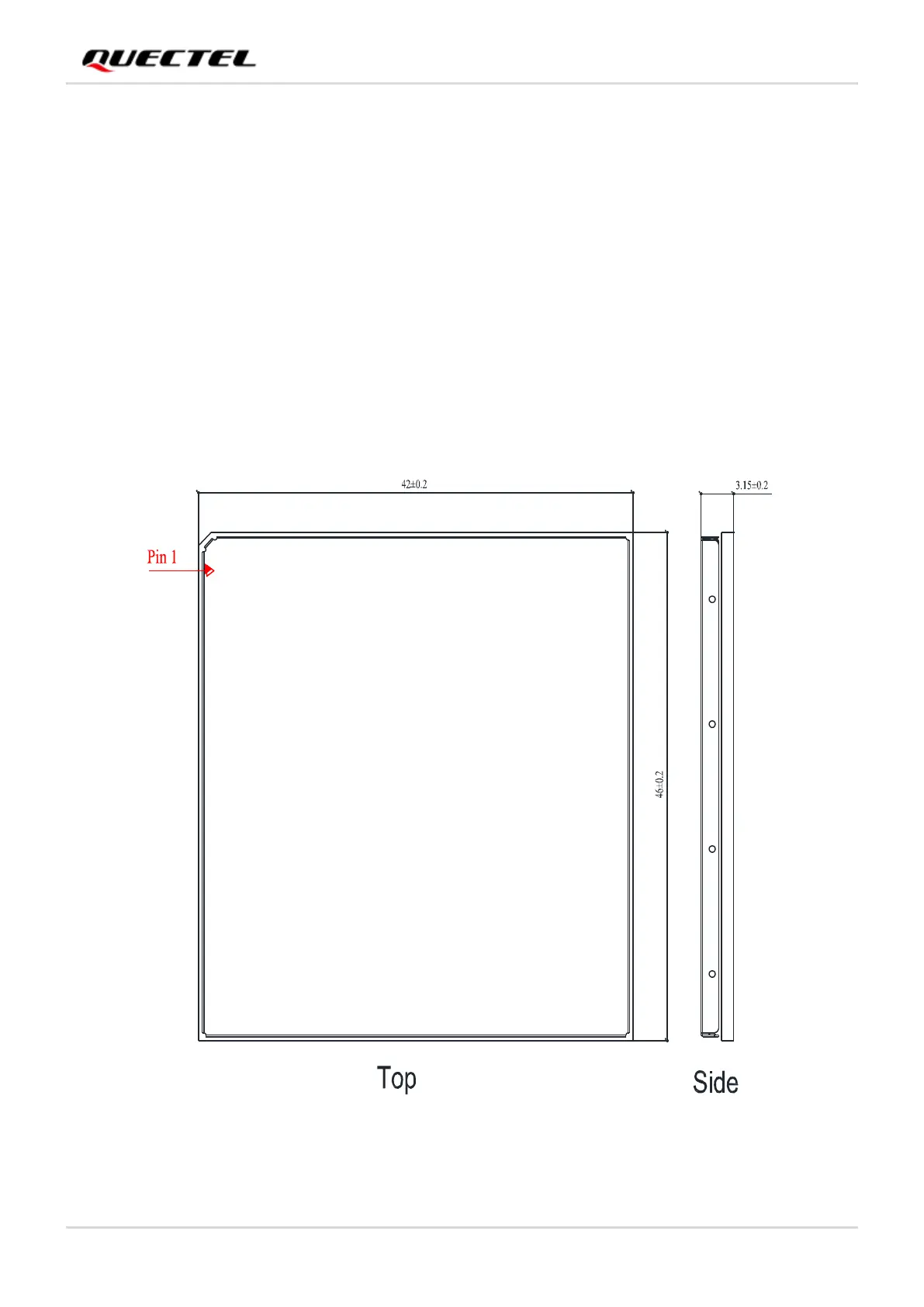

Figure 38: Top and Side Dimensions
