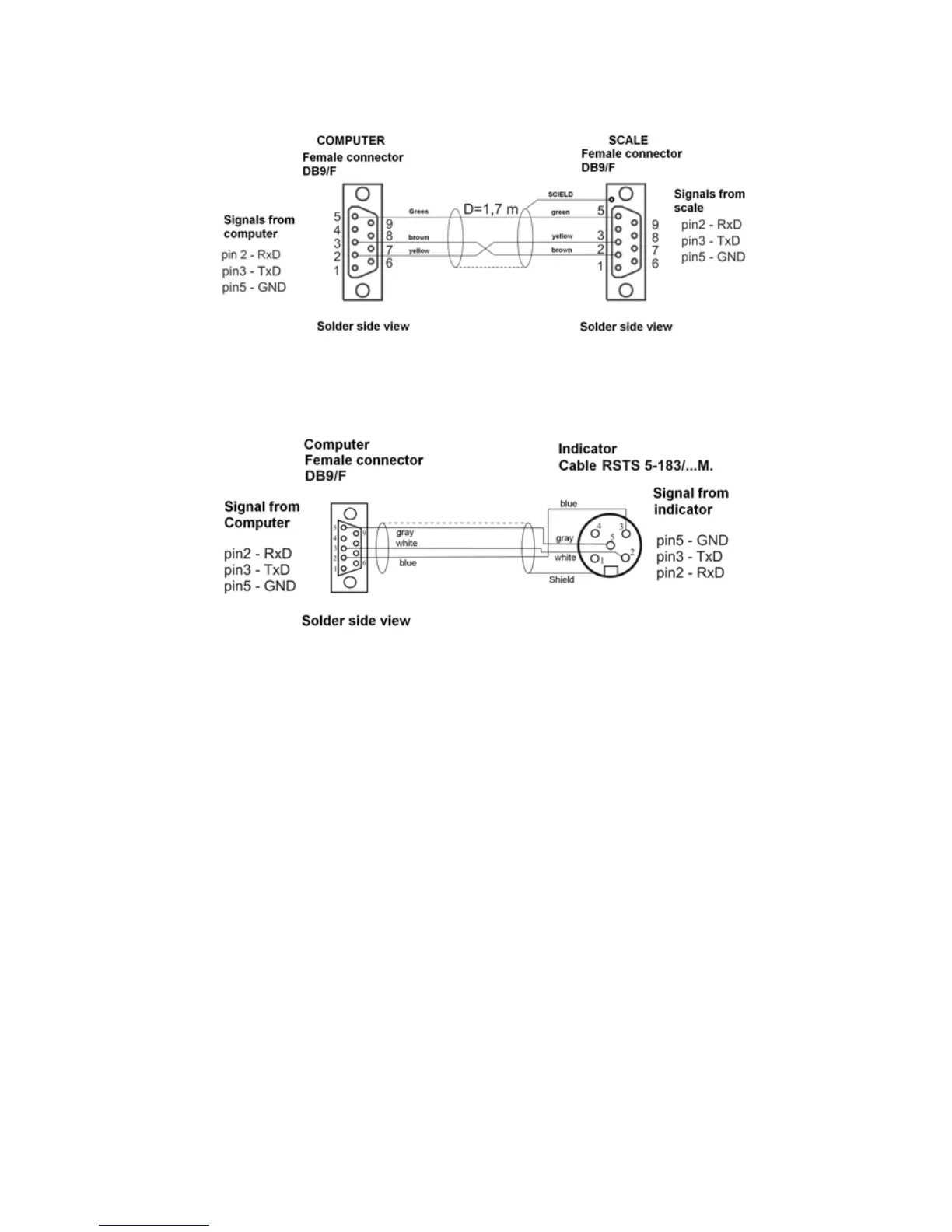

Cable diagrams:
Scale – computer cable diagram for plastic casing
Scale – computer cable diagram for metal housing
19. COMMUNICATION PROTOCOL
19.1. General information
A. A character protocol scale-terminal has been designed for
communication between RADWAG scales and external
devices via RS-232 interface.
B. It consists of commands sent from an external device to
the scale and a responses from a scale.
C. Responses are sent every time after receiving a command
(reaction for any command).
D. Using commands allows users to receive some information
about the state of scale and/or influence the operation e.g.:
• Requesting weighing results,
• Display control.
- 65 -
