Viewing Air Interface Details Chapter 6
RADWIN 1000/2000/5000 User ManualVersion 2.5.30p3 6-3
 To edit the Configuration Parameters:
1. Click the required site button on the main tool bar of the RADWIN Man-
ager
OR
Click Configuration from the main menu and choose a site to config-
ure.
The Configuration dialog box opens (see figure 6-1 above).
2. Choose the appropriate item in the left hand list to open a dialog box.
3. Click Apply to save changes.
In subsequent instructions, we will simply say “Choose a site to configure”
on the understanding that the foregoing procedure is implied.
Viewing Air Interface Details
Click the Air Interface item in the left hand list. A window similar to the fol-
lowing appears:

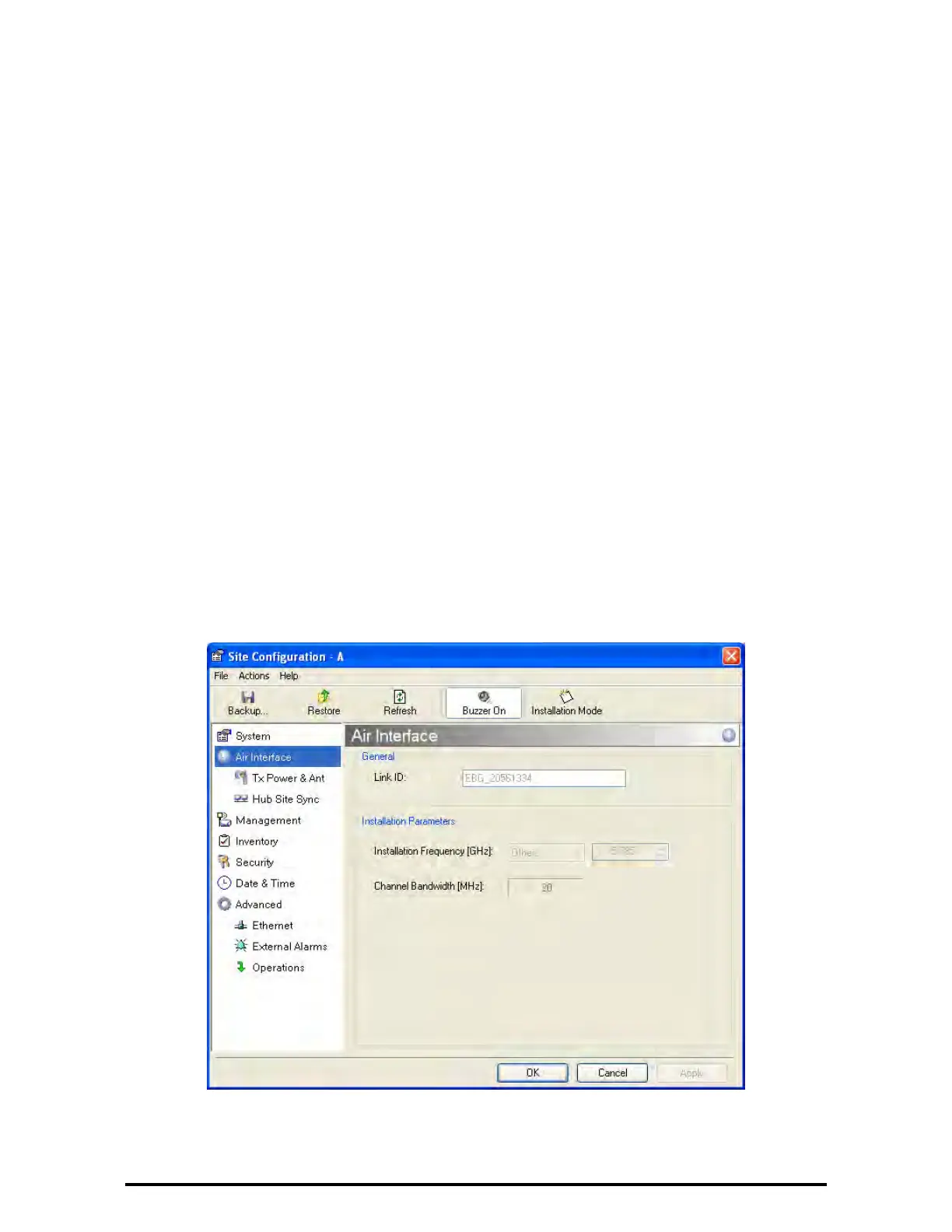

Figure 6-2: Air interface details
Installation
Mode
Return to Installation Mode for the entire link.
Selecting the Mute check box before clicking
the Install Mode button mutes the Beeper.
Mute Mutes the alignment tone in installation mode.
Reactivate the beeper during alignment.
