Radwin 1000 User Manual

Considerations for Changing Antenna Parameters Chapter 4
RADWIN 1000/2000/5000 User ManualVersion 2.5.30p3 4-24
3. Set the Antenna Gain and Cable Loss. If do this you will receive a warn-
ing message:

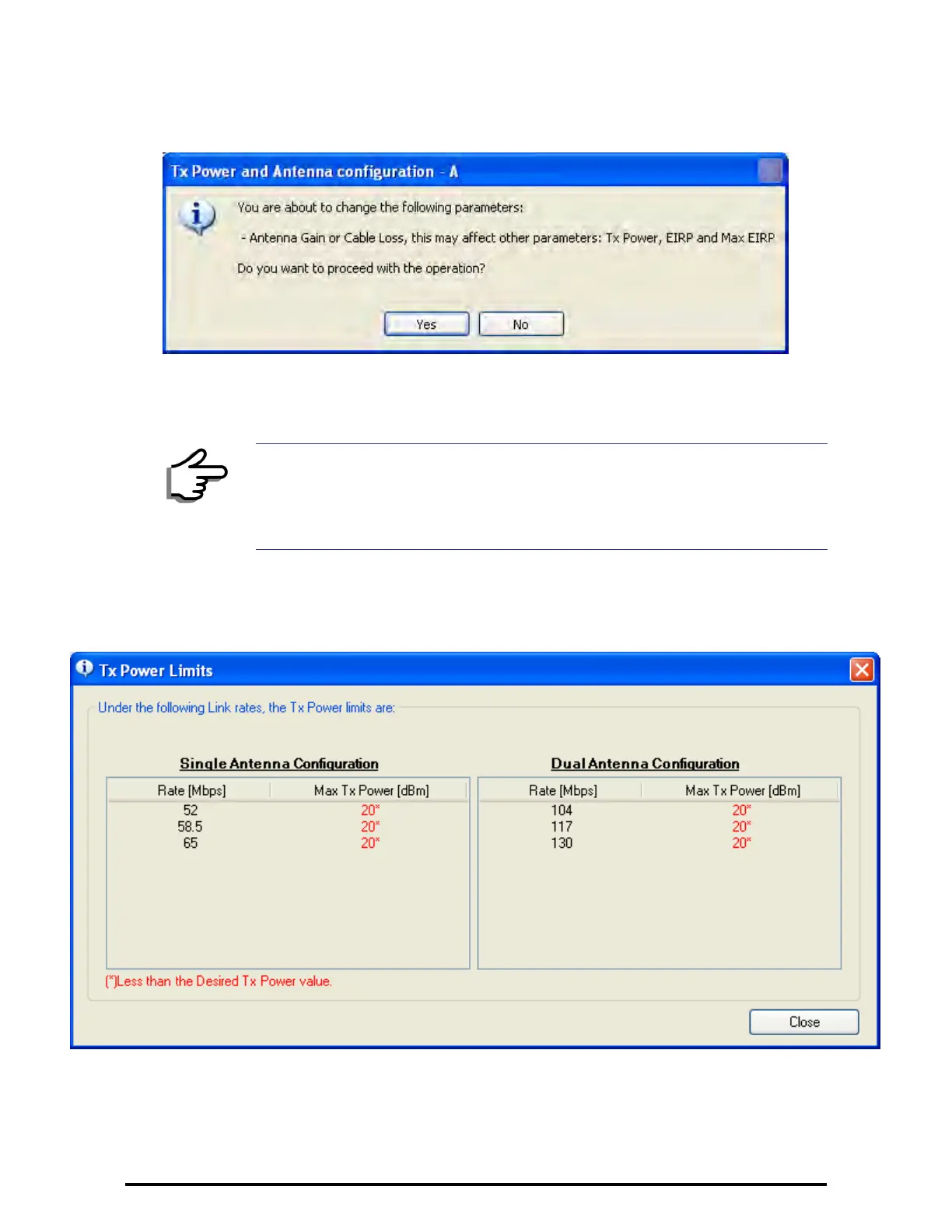

Figure 4-17: Antenna parameters change warning
If inequality (*) above is violated, then the following warning window is
displayed:
Figure 4-18: Tx Power Limits
The precise relationship between the items in inequality (*) and the win-
dow of figure 4-16 is follows:
Note
• The Max EIRP level will be automatically set according to the selected
band and regulation.
• The EIRP level is the sum of the System Tx power and the Antenna
Gain minus the Cable Loss.
