Appendix H
RADWIN 1000/2000/5000 User ManualVersion 2.5.30p3
H-6

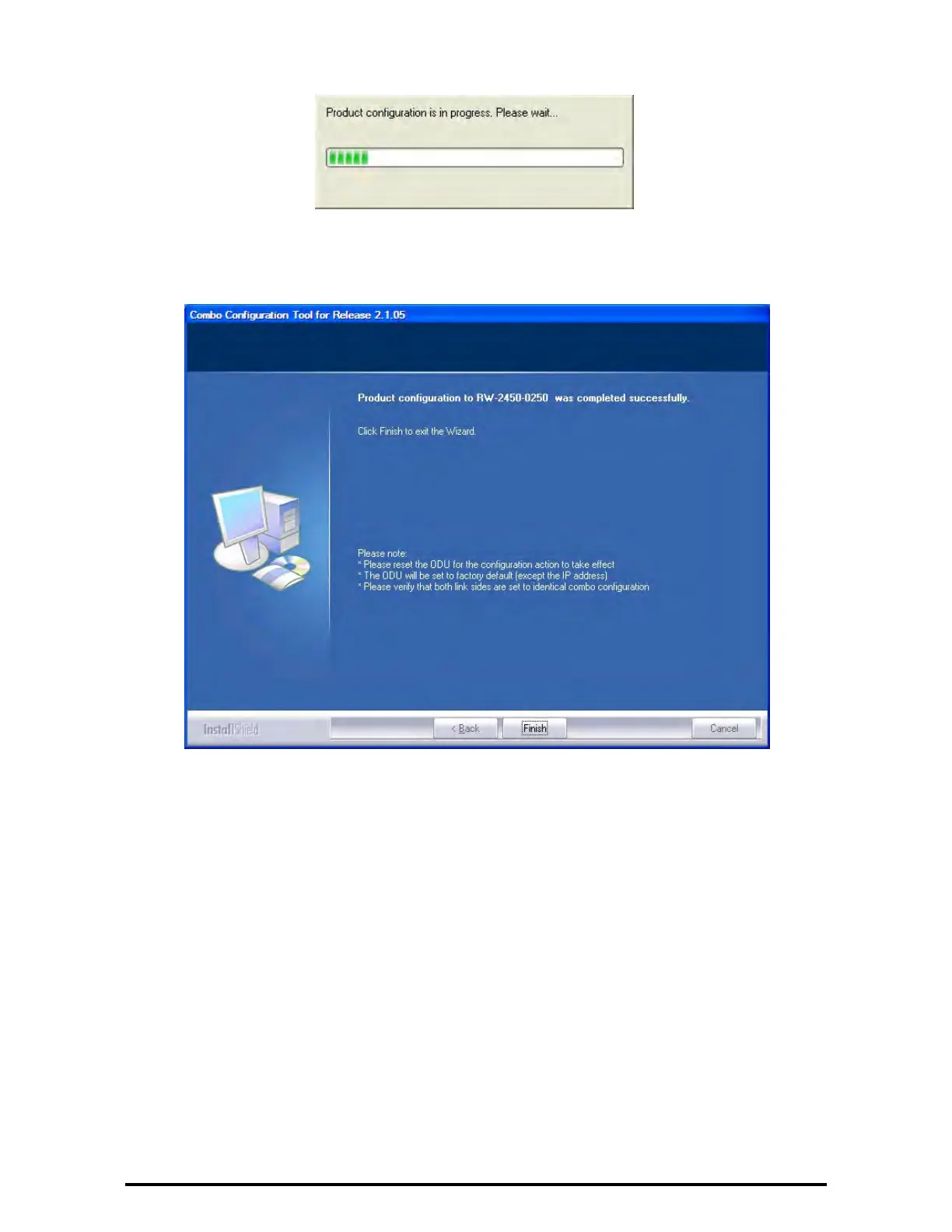

Upon successful completion of the configuration process, the following
termination window is displayed:
8.
Click Finish to exit the Wizard as shown.
9.
Repeat the whole process for the second ODU in the link.
If you receive an error message
The last stage above may terminate unsuccessfully due to an error. Error
messages are posted to a window like this:
198
200
