Radwin 1000 User Manual

Installing the Link: Step 5, Services Chapter 4
RADWIN 1000/2000/5000 User ManualVersion 2.5.30p3 4-25
• Required Tx Power (per radio) will be adjusted down to the
lesser of the value entered and maxAllowedTxPower
• TxPower (system)is maxAllowedTxPower + 3 (for 2 radios)
• Max EIRP is maxRegEIRP.
• EIRP is maxAllowedTx Power + Antenna Gain - Cable
Loss
The table in figure 4-18 only shows rates where the maximum Tx
Power is the limitation, rather than regulations.
When you close the window of figure 4-18, the change you requested
will not be honored, and you will need to try again.
4. When you are finished with Tx Power configuration, Click Next.
Installing the Link: Step 5, Services
The Services dialog appears:

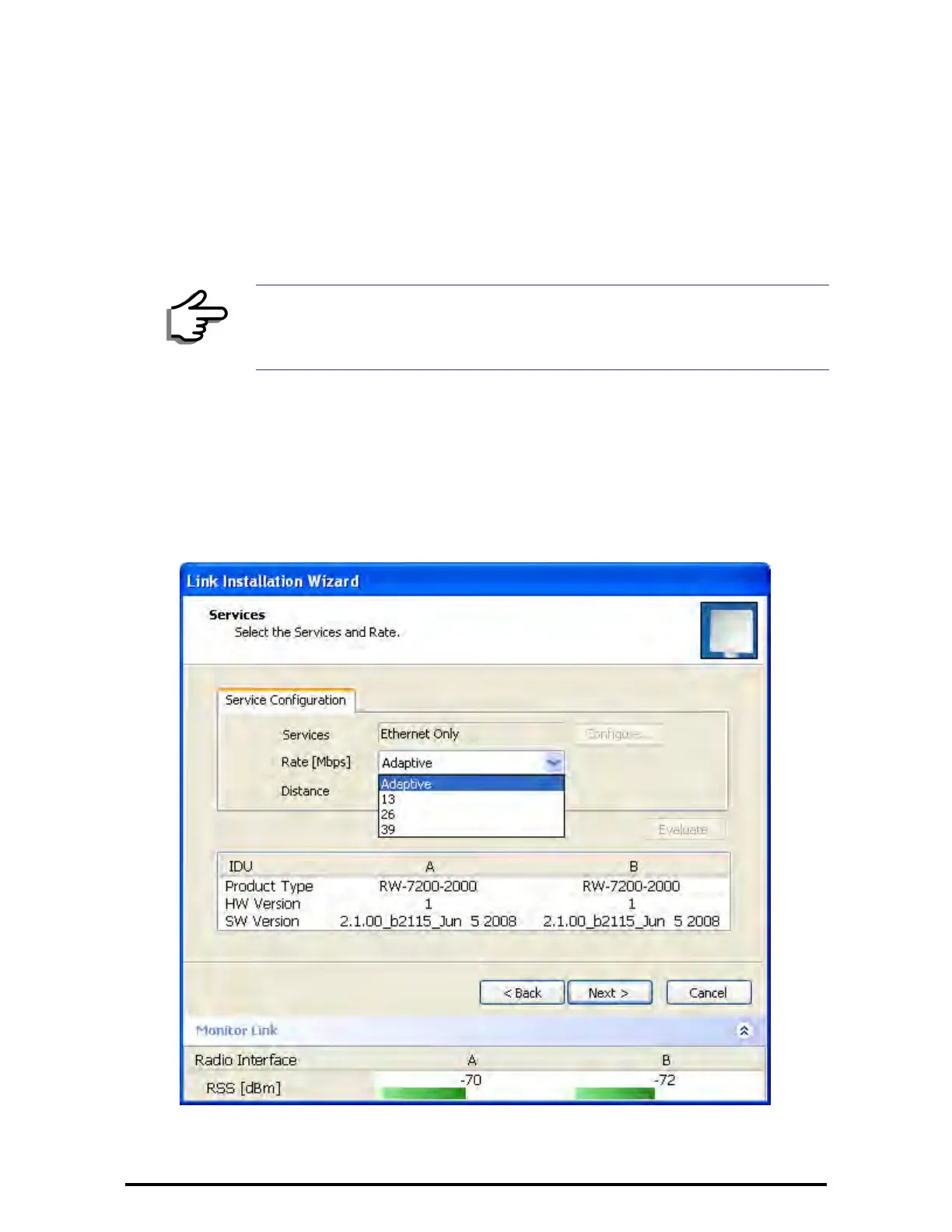

Figure 4-19: Services and Rates dialog
Note
Recall that maxAllowedPower and maxEIRP are regulatory. In an
unregulated environment, the only limit is maxODUTxPower.
