IDU Package Contents
Chapter 3
RADWIN 1000/2000/5000 User ManualVersion 2.5.30p3
3-4

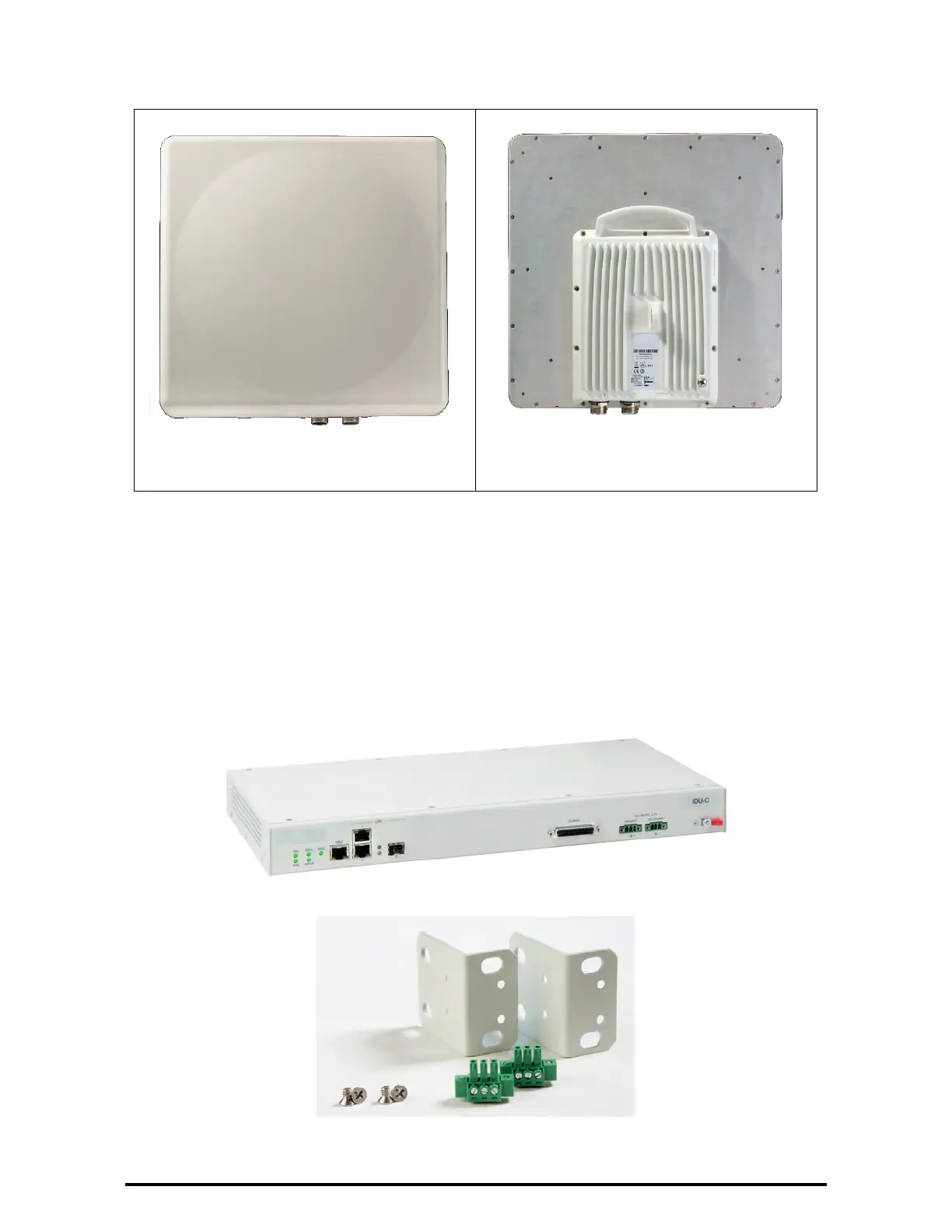

Figure 3-3: Integrated ODU - Front and rear views
IDU Package Contents
The IDU package contains:
•
IDU-C - see
figure 3-4
below.
•
19” rack mounting kit - see
figure 3-5
below
•
Two DC power plugs for power cables - see
figure 3-5
below
Figure 3-4: IDU-C Package contents - the IDU-C
Figure
3-5:
IDU-C
Package
contents
-
the
mounting
kit
and
DC
power
plugs
ODU - Front View
ODU - Rear View
38
40
