Ethernet Properties
Chapter 6
RADWIN 1000/2000/5000 User ManualVersion 2.5.30p3
6-9

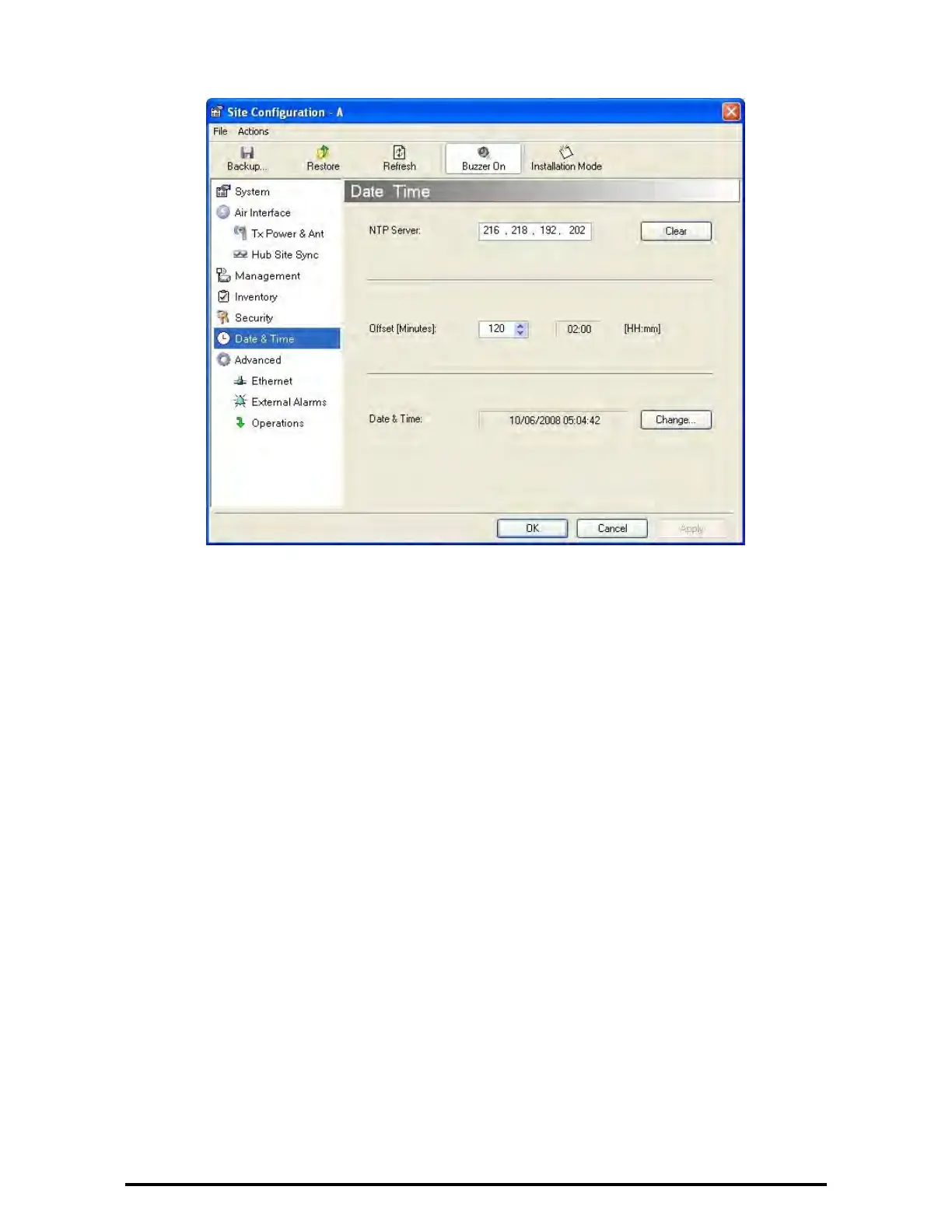

Figure 6-8: Date and Time configured from an NTP Server
8.
Click
OK
to return to the Configuration dialog.
Ethernet Properties
Configuring the Bridge
Bridge configuration is required in various network topologies, such as pro-
tection (1+1) and ring applications. The bridge configuration parameters
are located under the Advanced tab of the Site Configuration dialog box:
106
108
