RaymarinerecommendstheuseofaBNC
terminatedRG5975ohm(orbetter)coaxialcable.
4.21Fusionnetworkconnection
Fusion700and750Seriesmarineentertainment
systemscanbeconnecteddirectlytothedisplay’s
networkconnectionorcanbeconnectedtothe
SeaTalk
hs
network,viaaRaymarine
®
network
switch.TheFusionentertainmentsystemcanbe
controlledbyanyMFDconnectedtothesame
network.
MultipleFusionunitscanbeconnectedtothesame
network.

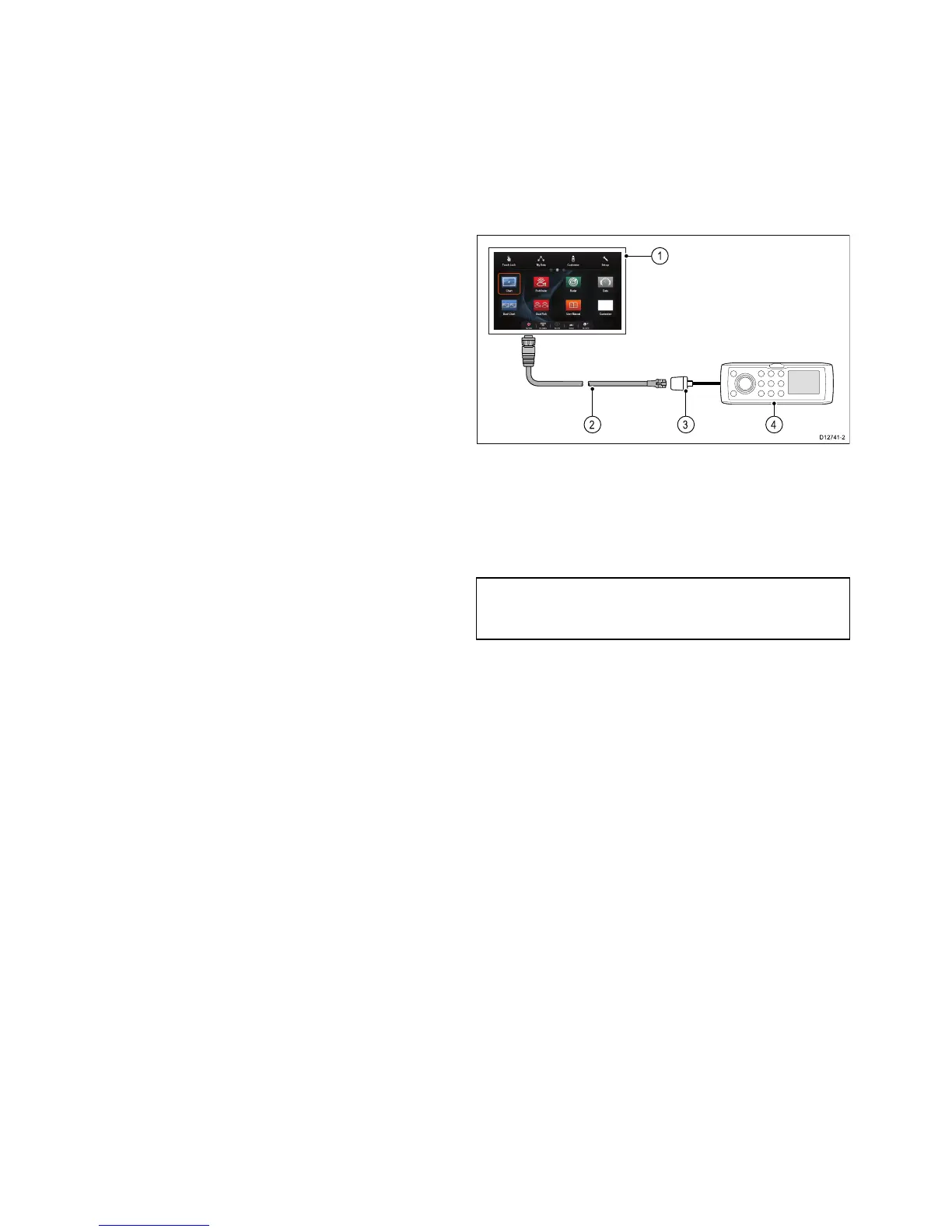

D12741-2
1
2 3 4
1.MFD
2.NetworkconnectiontoMFD(RayNettoRJ45
SeaTalk
hs
adaptorcable)
3.Fusionethernetconnection
4.Fusionunit
Note:TheMFDshouldalwaysbepoweredfroma
separatebreakerandbepoweredonbeforeany
otherconnecteddevices.
Forfurtherinstallationinformation,refertothe
installationinstructionssuppliedwiththeunit.
50eSSeriesinstallationinstructions
