Pole Mounting the External GPS Antenna
1. Screw the pole mount base to a suitable pole or rail mount bracket,
having an industry standard 1inch 14TPI thread, until secure.

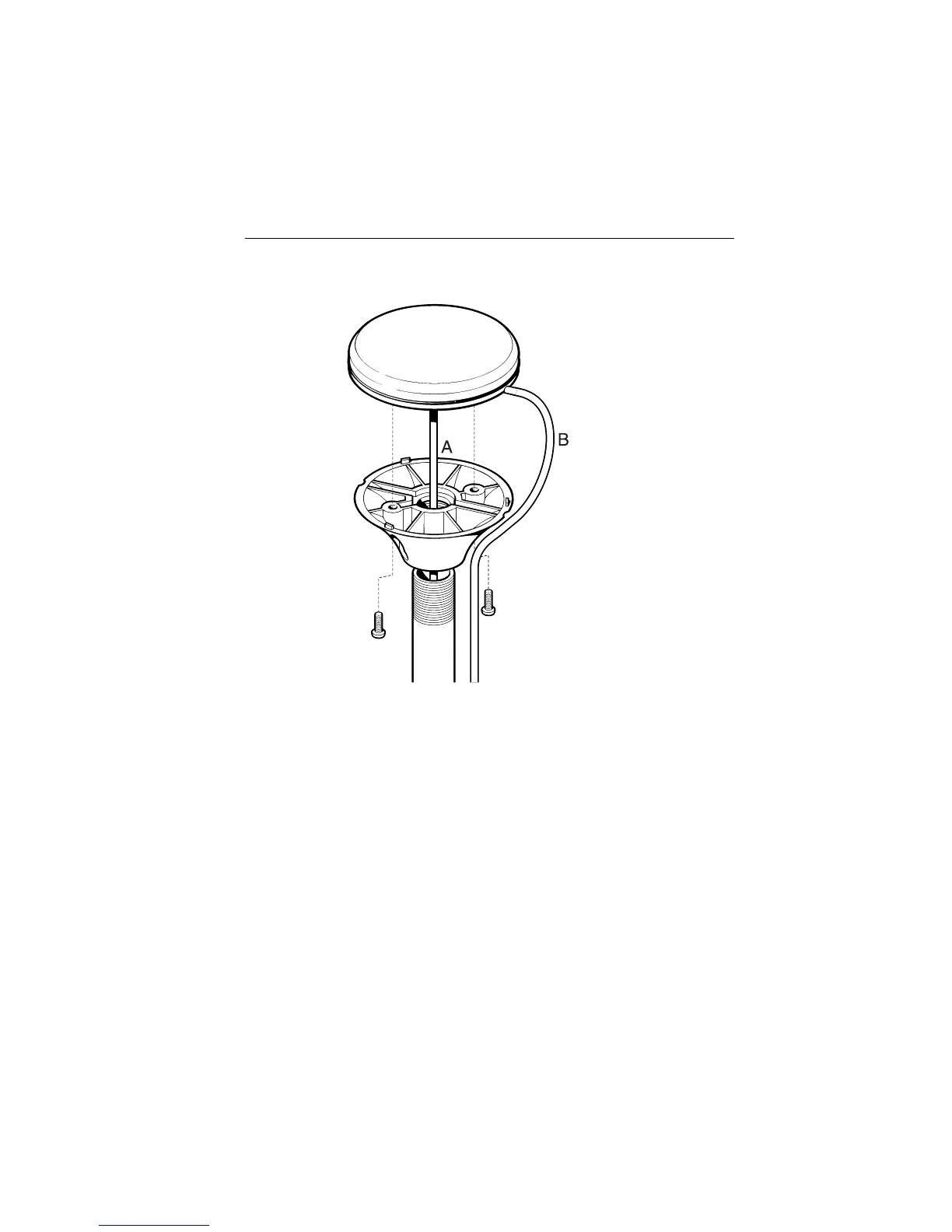

2. Pass the cable through the center hole of the pole mount base (A) or
insert the cable into the side exit channel (B).
3. Check that the cable is positioned correctly and secure the GPS
Antenna to the pole mount base using the two screws provided.
If the cable is to exit from the side of the GPS Antenna through the
side channel, remove the two plastic tabs obstructing the cable chan-
nel.
Note: Failure to remove the plastic tabs from within the cable channel
could result in cable damage.
D4726-2
