Raymarine SmartPilot X-5R User Manual

Chapter 2: Installing the system 9
The correct cable dimensions for various cable lengths are given in the following
table.

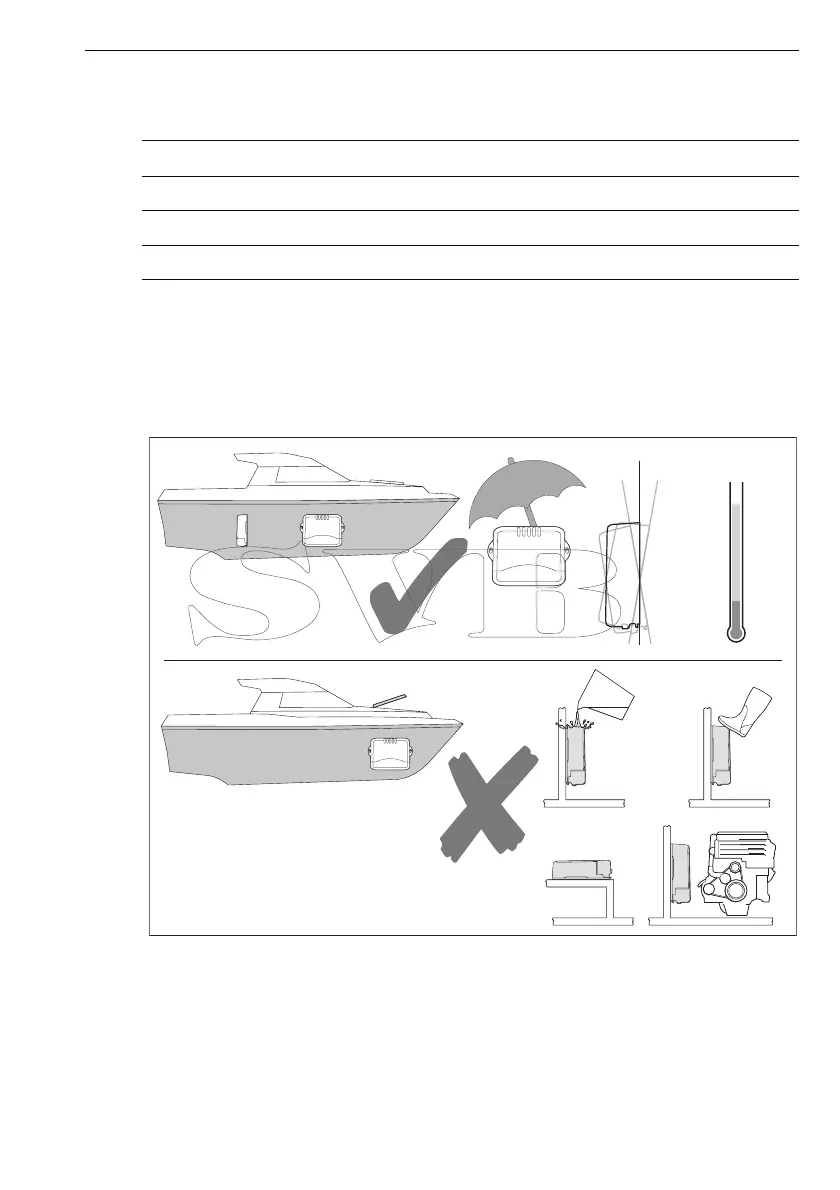

2.3 SPX-5R Drive system Course Computer
Mounting
The Course Computer must be mounted on a secure vertical surface, free from
vibration.
Total cable length (A + B) Copper area AWG
Up to 3.0 m (10 ft)
2.5 mm
2
14
Up to 5.0 m (16ft)
4mm
2
12
Up to 7.0 m (23 ft)
10 mm
2
8
or
D10373-1
Min
Max
-10
55
14
130
°F°C
10°
10°

Raymarine SmartPilot X-5R Specifications

General

Brand	Raymarine
Model	SmartPilot X-5R
Category	Marine Equipment
Language	English
