16 SmartPilot X-5R Drive Installation and Setup Guide
Step 5- Fit Drive unit
CAUTION: Ensure correct mounting angle
The Drive unit MUST be mounted at an angle of no more than 35° from
vertical, to ensure adequate drainage of water for all rotating parts. You
MUST also ensure that the drain hole at the base of the unit is kept clear at
all times.
Introduction

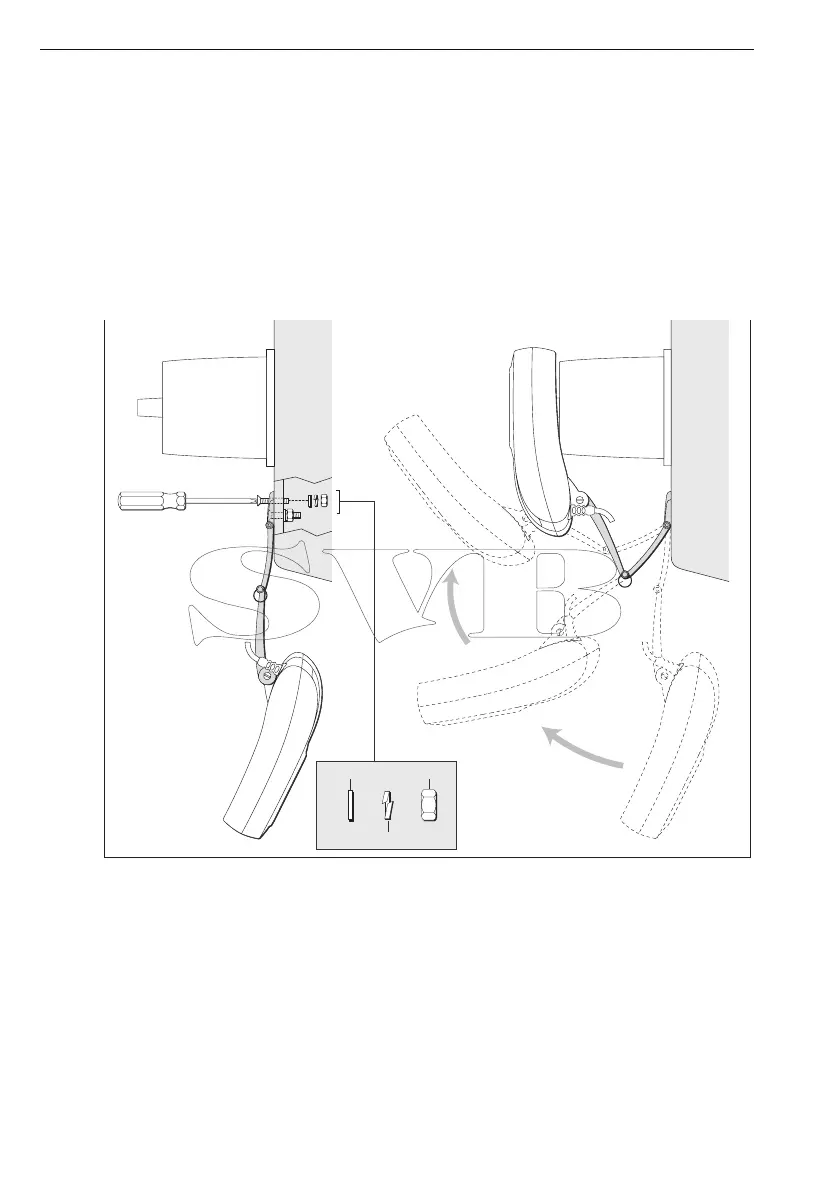

1. Secure the torque restraint to the mounting surface, using the four M4 screws,
nuts and washers provided, as shown in the following illustration.
2. Fit the SPX-5R Drive in accordance with the instructions for either a
3
/
4
inch or 1 inch steering shaft, as appropriate (see below).
D10664-2
M4 nutM4 washer
M4 spring washer
