22 SmartPilot X-5R Drive Installation and Setup Guide

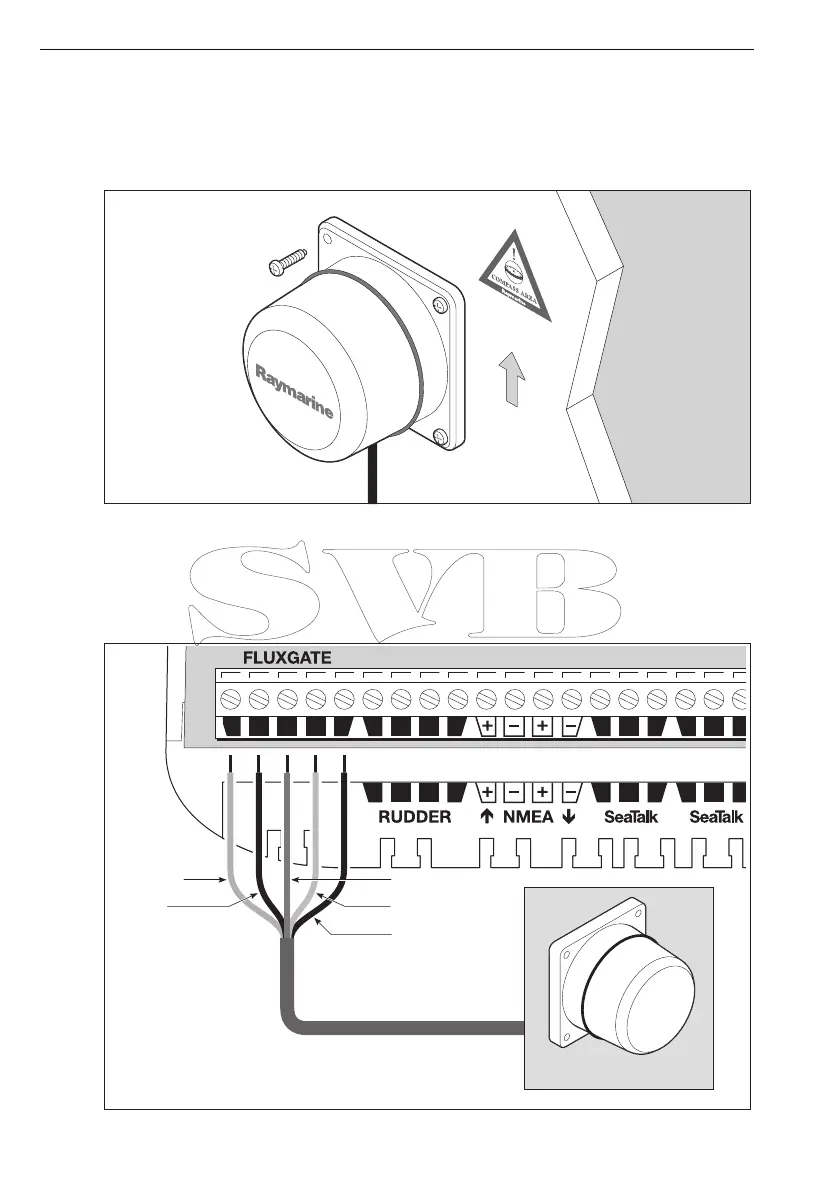

Mounting procedure
1. Mount the Fluxgate Compass on a vertical bulkhead, with the cable leaving at the
bottom of the unit.
2. Stick the supplied warning label near to the compass, where it is clearly visible.
Compass connection
Route the compass cable to the Course Computer, securing it at regular intervals with
suitable cable clips/ties.
Connect to the Course Computer as in the following illustration.
D10387-1
Vertical
D10388-1
Cable, 8 metres (26 ft)
Screen
Red
Green
Yellow
Blue
Fluxgate compass
