12 SmartPilot X-5R Drive Installation and Setup Guide
.
Step 2 - Check wheel shaft size
As the way in which components are fitted depends on the diameter of the steering
shaft, it is very important to ascertain the steering shaft diameter before you proceed
with the fitting procedure.
As a rough guide, if you can slide the taper adaptor supplied with your SPX-5R Drive
onto the taper of the steering shaft, then the steering shaft is
3
/4 inch diameter. If the
taper adaptor is too small to fit onto the steering shaft, then the steering shaft is 1 inch
diameter.

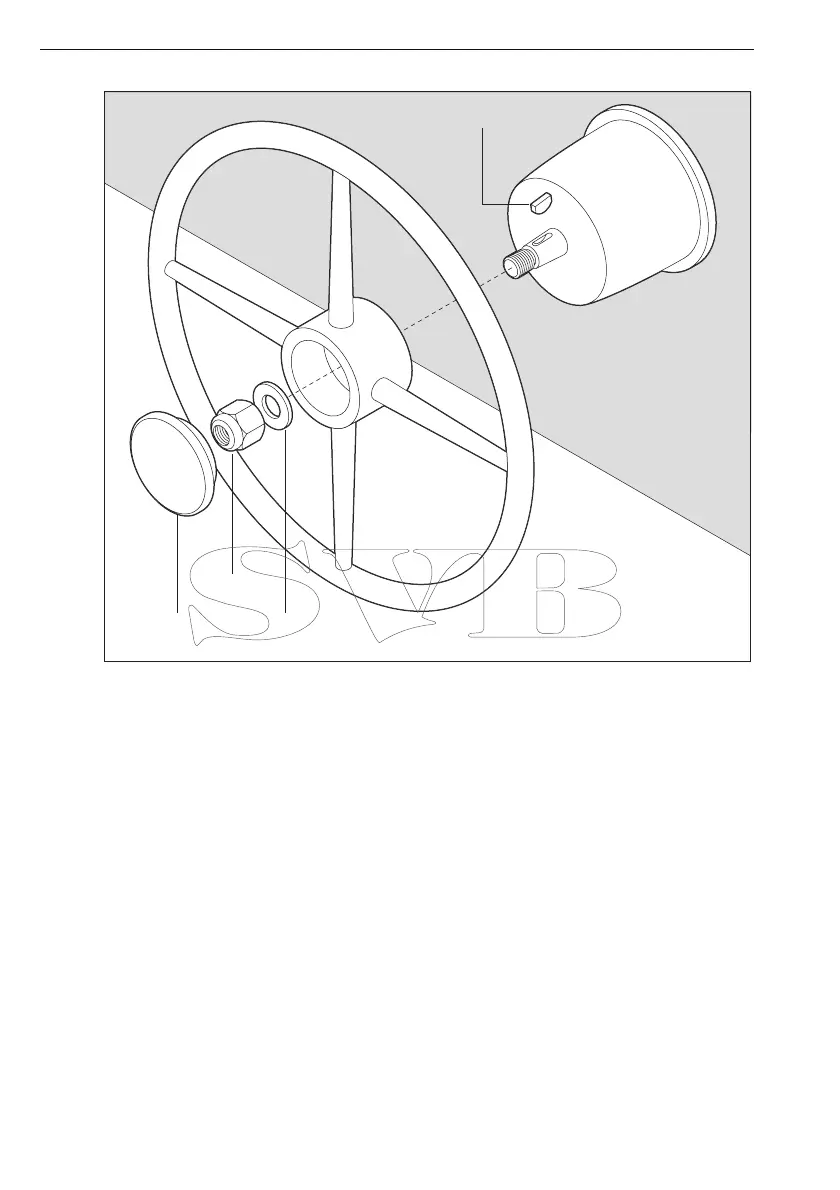

The following simplified diagrams show the general arrangement of the major
components for each size of steering shaft.
D10376-1
Woodruff key
Steering
wheel hub
Retaining
nut
Washer
