18 SmartPilot X-5R Drive Installation and Setup Guide
8. Slide the steering wheel onto the stub shaft, so that the woodruff key inserted at
step 8 engages with the keyway in the wheel.
9. Place the original steering wheel washer on the shaft then secure the steering
wheel with the original wheel-securing nut.
10. Replace the wheel hub cover.
Fitting to 1 inch steering shaft
To fit the Drive Pilot drive to a 1 inch steering shaft, refer to the illustration above and:
1. Insert the smaller of the two woodruff keys supplied into the keyway on the
steering shaft. If necessary, use a small hammer to lightly tap the key into position
2. Slide the SPX-5R Drive onto the steering shaft so that the woodruff key inserted at
step 1 engages with the keyway in the drive.
Note: You MUST USE the nyloc nut supplied with the Drive to secure the drive assembly to the
shaft.
3. Place the
5
/
8
inch seal washer (supplied) on the shaft so that the seal side is
towards the Drive.
4. Use the supplied box spanner to secure the drive unit with the
5
/
8
inch nylock nut
supplied.
5. With the steering still hard over to starboard, tighten the drive unit securing nut to
22 pound feet (30 Newton metres).
6. Offer up the stub shaft to the drive unit, ensuring the alignment marks on the stub
shaft and drive unit are aligned. Secure the stub shaft to the drive with the four
Woodruff
key (small)
Woodruff
key
(large)
Alignment
mark
Alignment
mark
Screw
Washer
Seal
washer
Drive unit
Taper
adaptor
Stub
shaft
Nyloc
nut
(small)
Nyloc nut
(large)
1" shaft

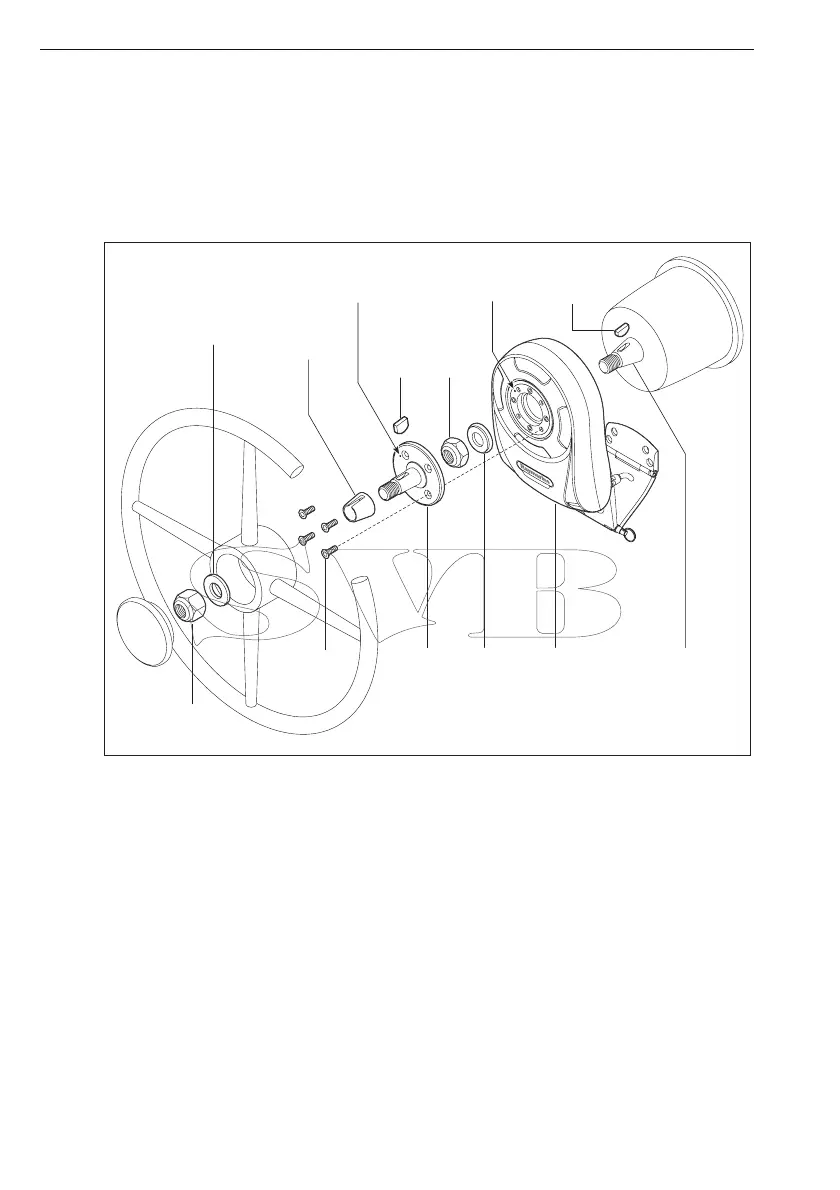

D10670-2
1 inch shaft fitting
