Accessing the Calibration modes
Adjusting calibration values
To adjust calibration values:
1. Access the required calibration mode (refer to the diagram above).
2. Press
disp to scroll through the available options. To view the previous option,
press and hold
disp for 1 second.
3. Use
-1 , +1, -10 and +10 to change the values
When you have made all required changes, press and hold standby for 2 seconds to
save changes and exit.
+

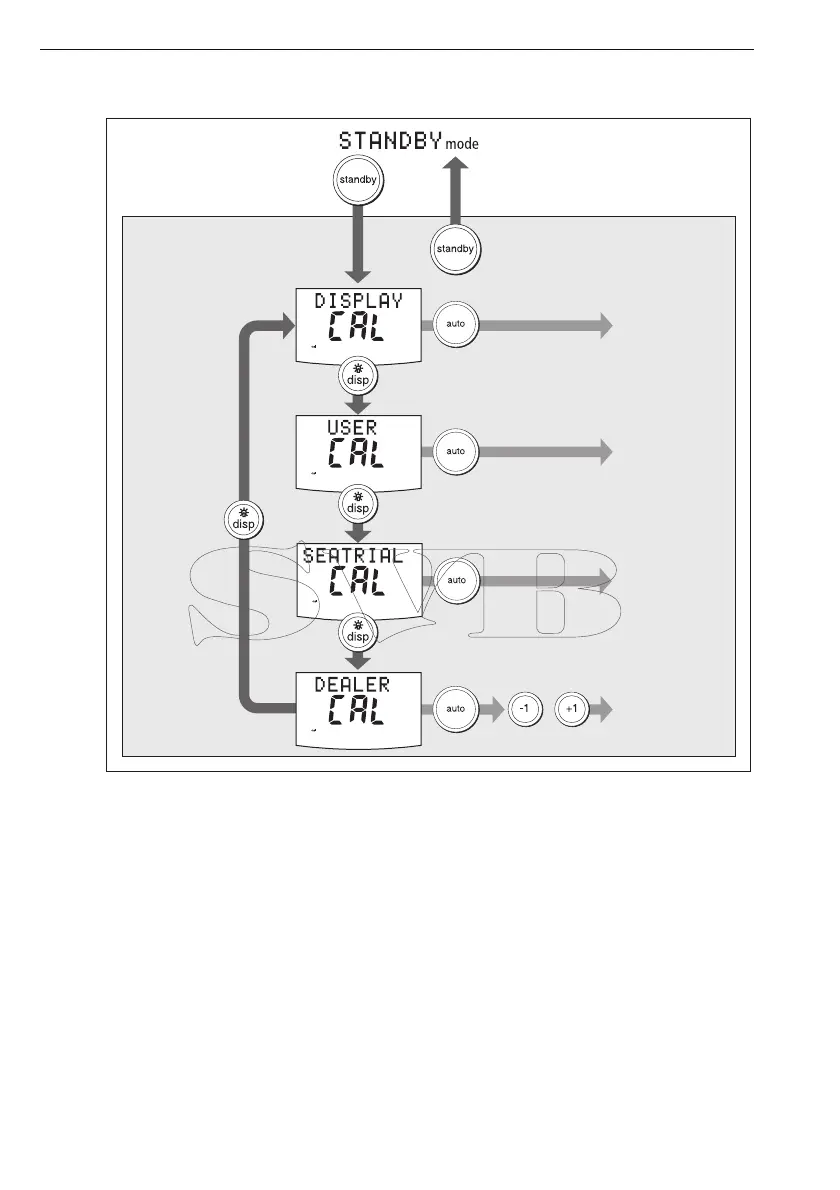

Accessing Calibration
Modes
2 seconds
2 seconds
(saves changes)
Calibration
Modes
to enter Seatrial
calibration mode
D10808-1
to enter Dealer
calibration mode
to enter Display
calibration mode
to enter User
calibration mode
CAL
