User Guide
KrosFlo® KR2i Real-Time Process Management (RPM™) System

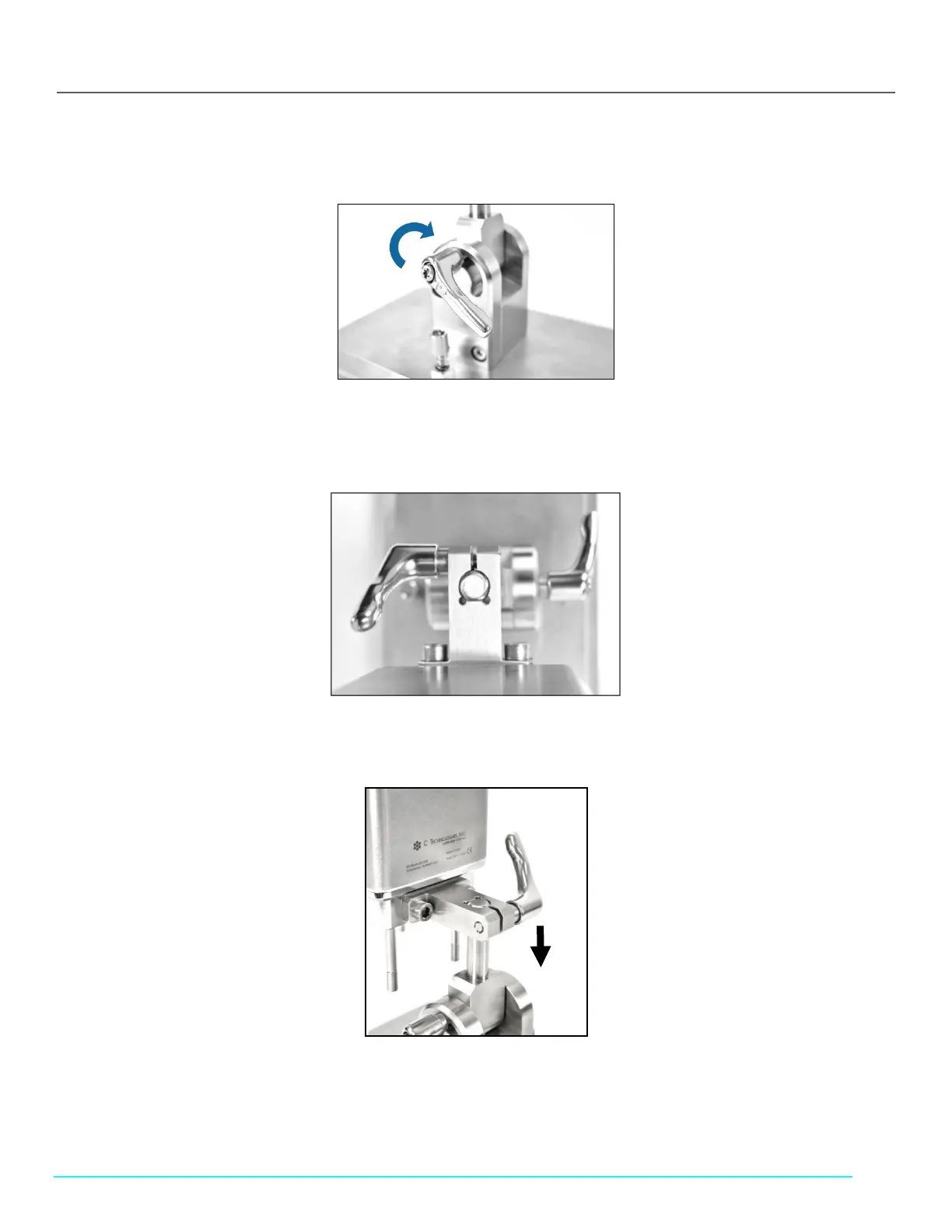

6. Ensure the mounting post on the Standard Mount is fully vertical. Tighten the Mounting Post Clamp Handle, if not already
tightened (Figure 23).
Figure 23. Tighten Mounting Post Clamp Handle
7. Pick up the FlowVPX Head and align the hole in the clamp with the mounting post. Ensure the flattened location on the post
aligns with the flattened area on the clamp (Figure 24).
Figure 24. Install FlowVPX Head on mounting post
8. Carefully lower the FlowVPX® Head so that the clamp slides over the post on the mounting plate (Figure 25).
Figure 25. Lower FlowVPX Head on mounting post
9. Turn and tighten the Standard Mount Clamp Handle to secure the FlowVPX® Head onto the mounting post (Figure 26).
