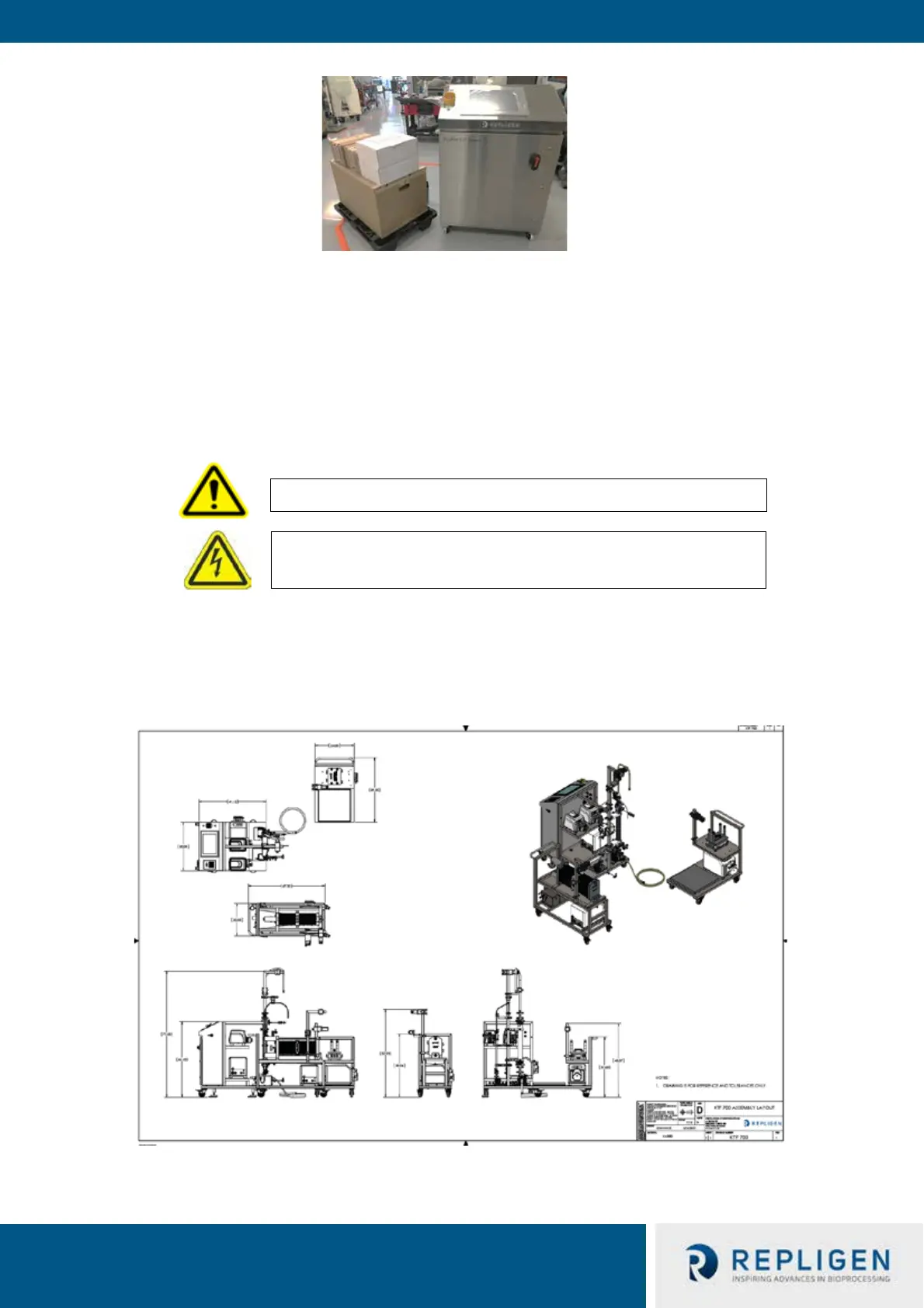

9. Performing Mechanical Installation
The KrosFlo System has a small footprint and requires only a small clean area (approx. 3m x 3m/10
ft. x 20 ft.) for assembly. No tools are needed for System assembly, though some basic hand tools
such as screw gun, pliers, and screwdrivers are needed to uncrate the System.
Some of the major components listed above are mounted on the cart. The other components can be
removed from boxes and installed on the cart for use in the process.
9.1 Main System Assembly
Follow these high-level steps to assemble and install the main System:
1. Uncrate the System and remove all packaging material from the System components.
2. Refer to the System General Arrangement to verify relative locations of all components.
3. Remove the Stand Extension from the frame.
4. Place a black rubber gasket between the Stand Extension and Main Stand.
WARNING – Do not plug in or introduce electricity to the System
during Mechanical Assembly.
WARNING – Refer to section 3 for Safety Precautions
