10. Performing Electrical Installation
All electrical connections are made with the plugs and sockets located on the rear side of the
controller cabinet.
10.1 Sensor and Communication Cables
10.1.1 Pressure Sensors
Polysulfone pressure sensors/transmitters are included as part of the sterile disposable ProConnex®
flow-path that is shipped with your System.
Typically, there are three pressure sensors one on the System, one on Feed line, one on Retentate
line, and one on Permeate line.

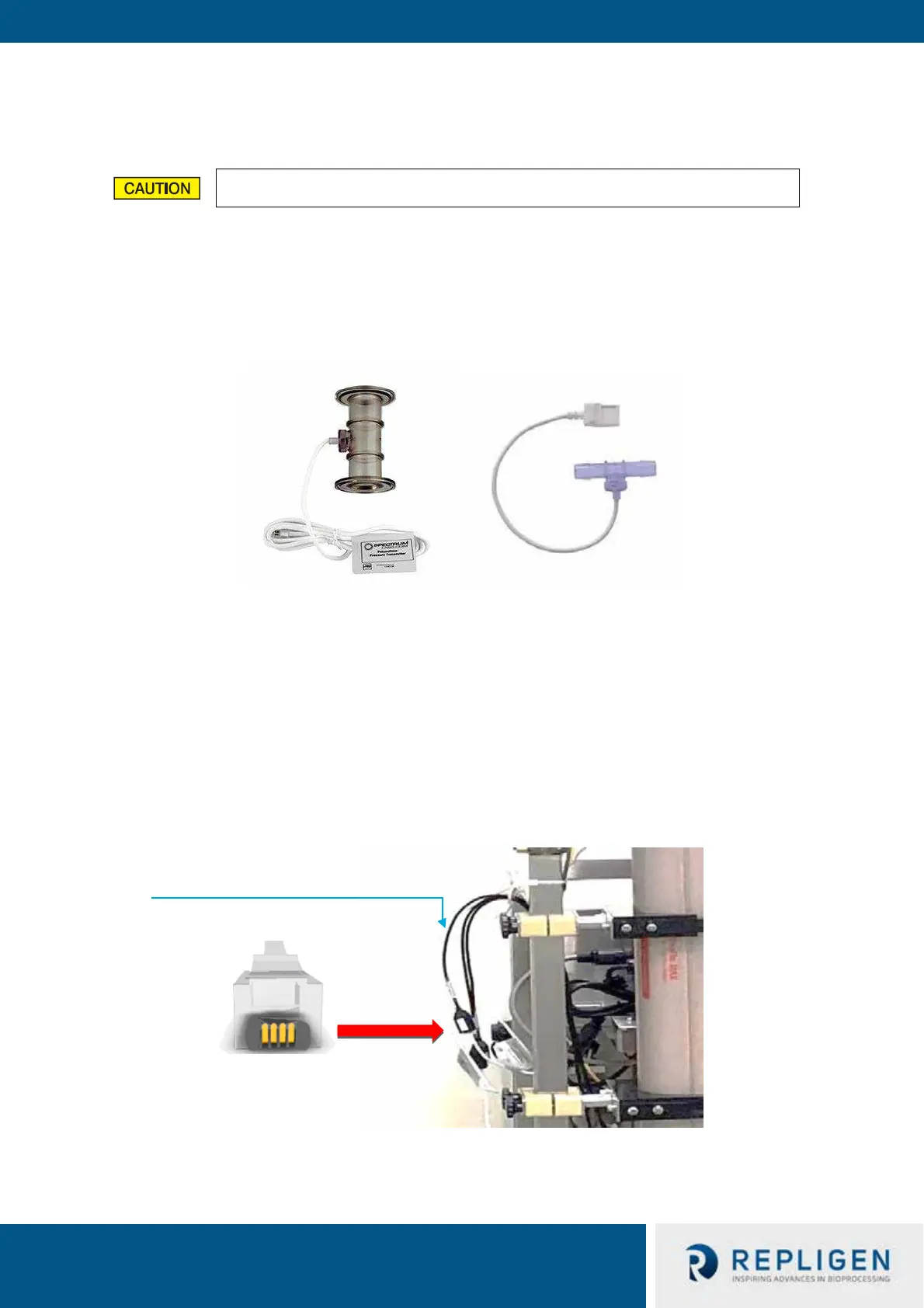

Each pressure transmitter is terminated with a RJ-11 connector (similar to a phone jack (Red
Arrow)).
1. Look for the labels on the octopus-cable and plug the designated connectors to the
labelled sockets.
2. Make sure all three pressure sensors are all connected, per each flow-path. This includes
one on filter feed line, one on retentate line, and one on permeate line.
Octopus cable
RJ11 Socket
When connecting cables, make sure the component tags and cable labels match.
