9.3.2 Feed Tank/Reservoir Connections
A typical Feed Tank or Reservoir is presented below:
• The lowest tube is the pump feed line.
• The bent dip tube is the retentate/return which should be rotated to the wall of the
reservoir to minimize foaming and to amplify mixing.
• Buffer/Product-in is through the top port of the cap.
• The vent line is connected to a filter. This filter must be sized properly to minimize any
vacuum which could impact TMP control valve and permeate flux rate.

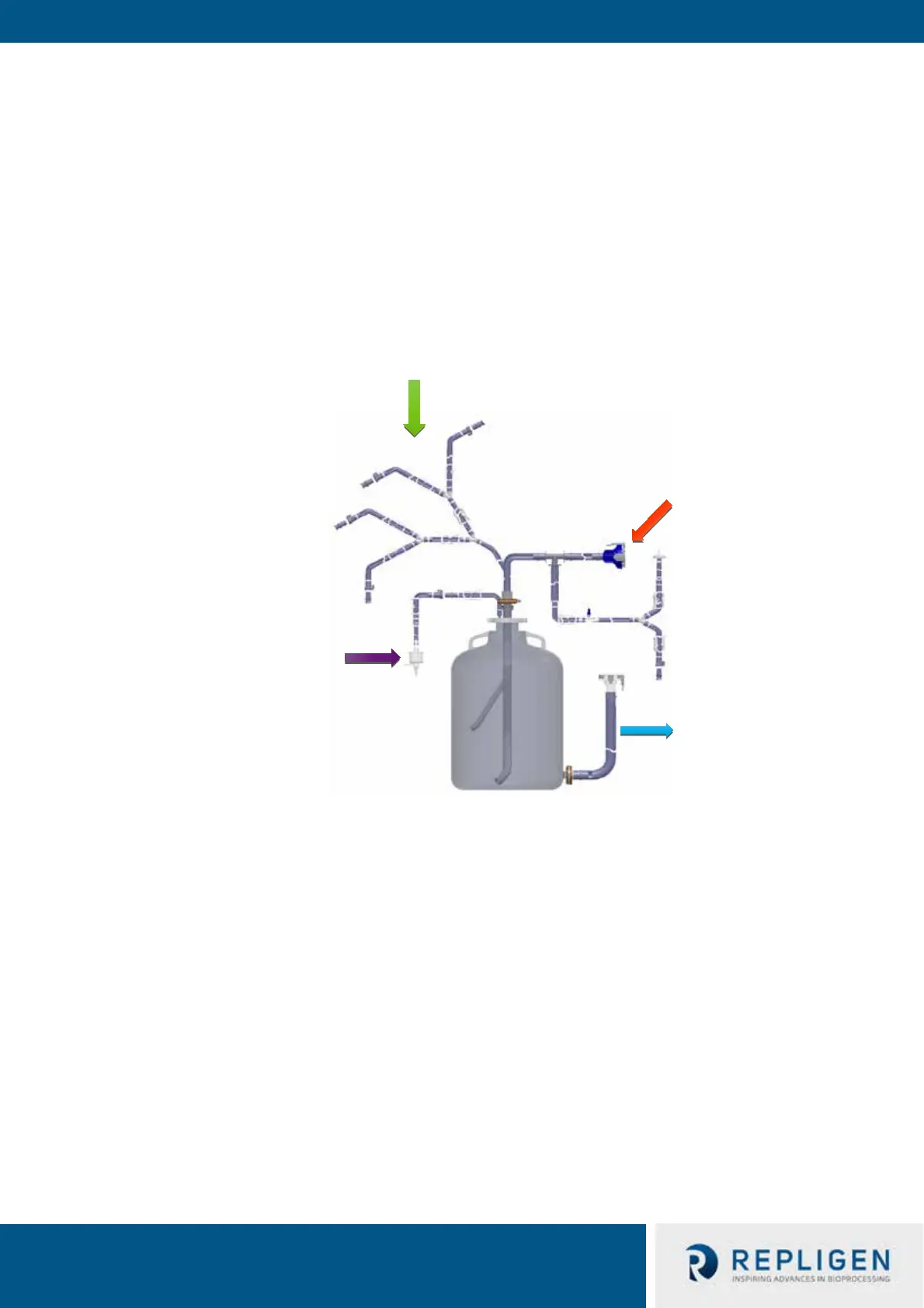

Figure 10. Typical Feed Tank or Reservoir Connections
Outlet
Connection
(Pump Feed)
Buffer/Product
Connections
