9.3 Single-Use Flow-path Assembly
Below is an overview of a typical flow-pathset with optional connections to either Hollow Fiber or
Cassette Filters.

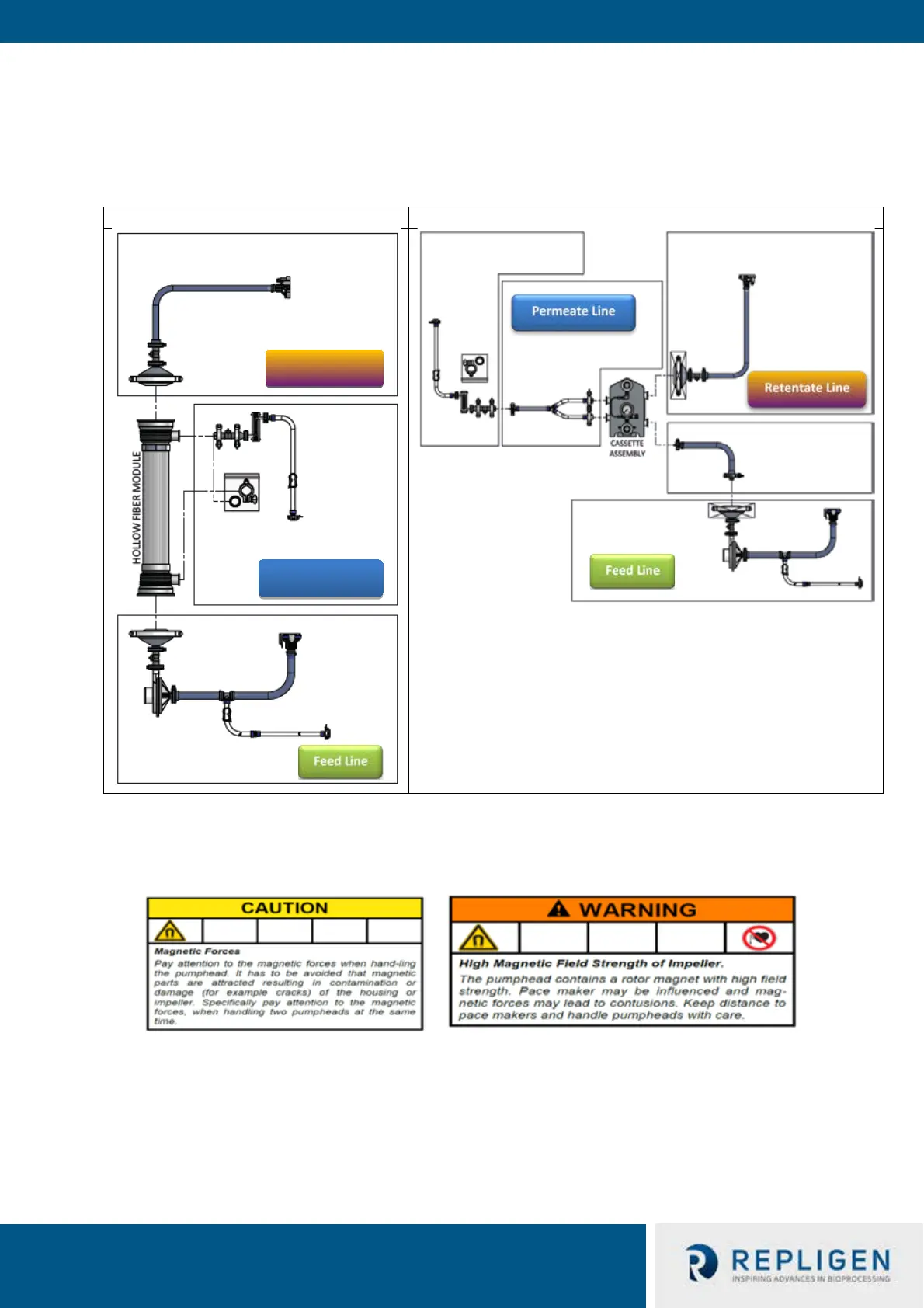

Figure 9. Typical Flow Path with Hollow Fiber and Cassette Filter Connections
Hollow Fiber Filter Connections
Cassette Filter Connections
9.3.1 Recirculation Pump Preparation and Connections
Follow these high-level steps to install and assemble the Single-Use Flow-path:
1. Remove backing material of disposable pump head, which contains a plastic cup and a large
metal washer.
2. Line up pump head to the wing nut mounting holes and pump socket (Blue Arrow).
The locking pin will click into place once pump head is properly oriented with motor.
