Display Panel
The display panel shows machine status, error messages, and function menus.
The function items displayed serve as selector keys. You can select or specify an
item by lightly pressing them.
When you select or specify an item on the display panel, it is highlighted like
. Keys appearing as cannot be used.
Important
❒ A force or impact of more than 30 N (about 3 kgf) will damage the display
panel.
To display the following screen, press the {User Tools/Counter} key to display the
User Tools menu, and then press [System Settings].

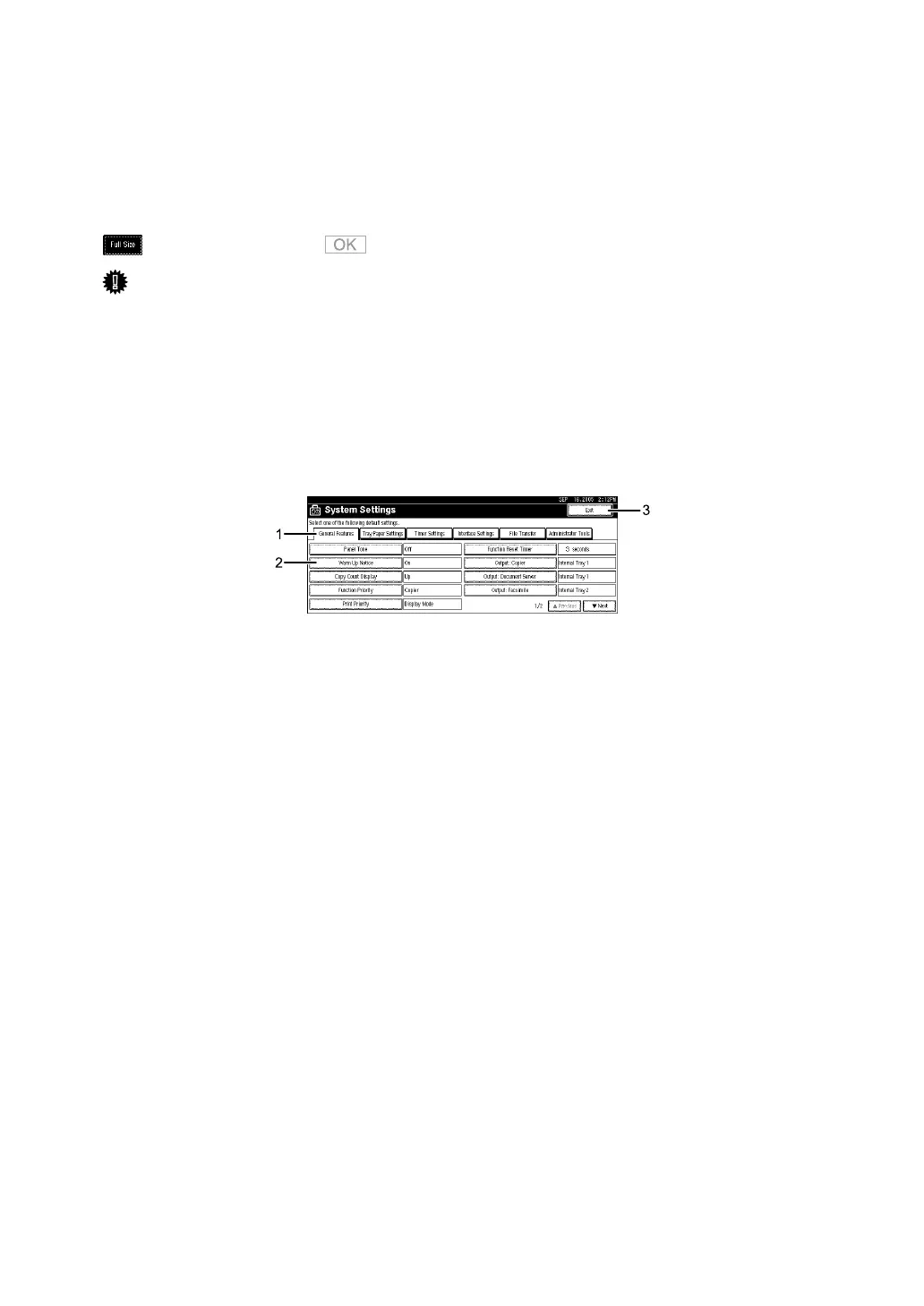

Using the System Settings menu screen as an example, this section explains how
to use the machine’s display panel.
1. The menu tabs for various set-
tings appear. To display the setting
you want to specify or change, press
the appropriate menu tab.
2. A list of settings appears. To spec-
ify or change a setting, press the ap-
propriate key in the list.
3. Press this to quit the User Tools
menu.
ARM005S
