Connecting the Machine

Connecting to the Ethernet Interface

This section describes how to connect 10BASE-T or 100BASE-TX cable to the Eth-

ernet interface.

Important

❒ If the main power switch is on, turn it off.

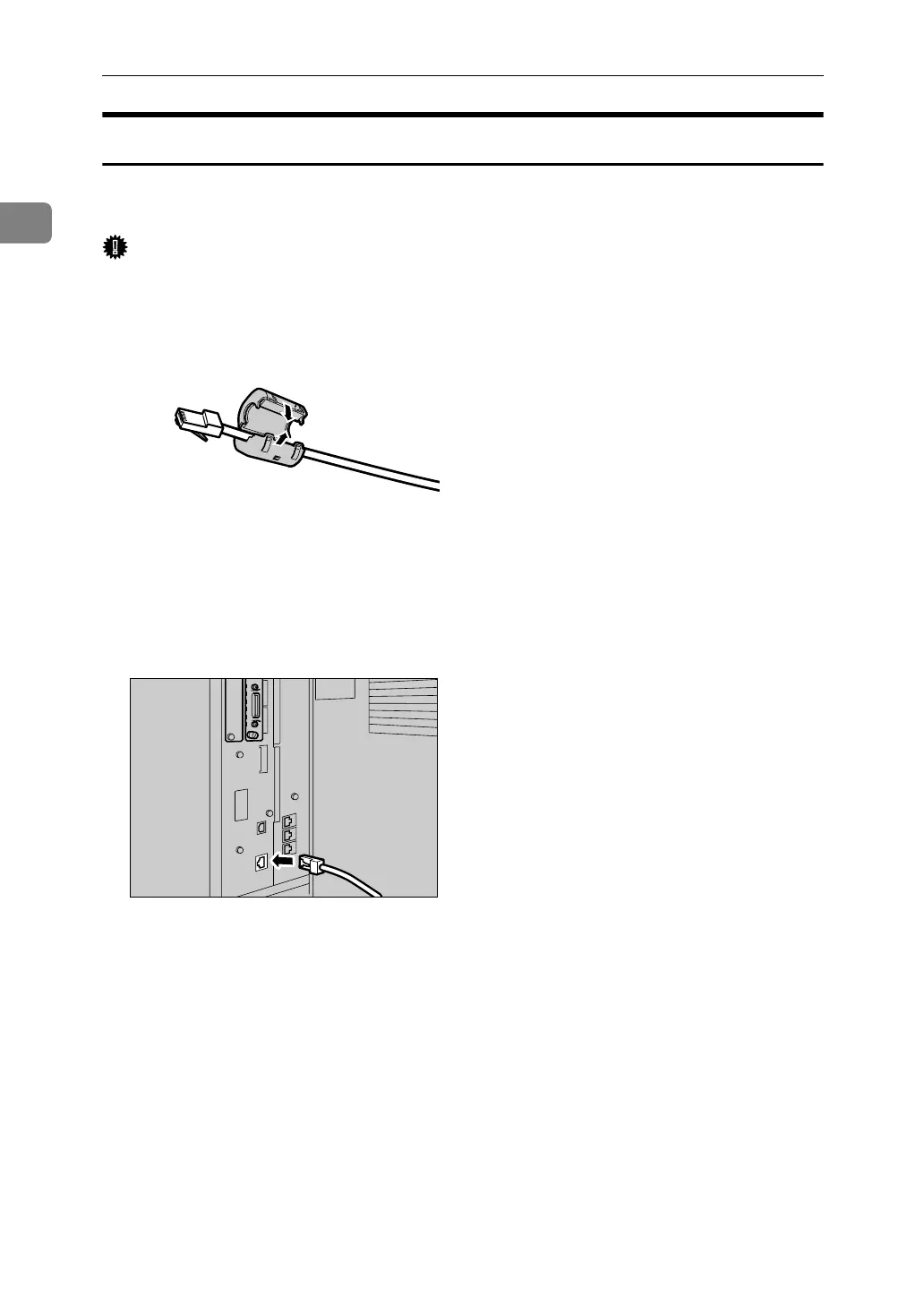

A Attach the supplied ferrite core to the end of the Ethernet cable.

B Make sure the main power switch of the machine is off.

C Connect the Ethernet interface cable to the 10BASE-T/100BASE-TX port.

D Connect the other end of the Ethernet cable to a network connection device

such as a hub.

AJL014S

AJL019S
