Main Motor
Removing the Main Motor
Preparation
M101
• AIO ( p.43 "M101 Covers")
• Front cover
• Right cover
M102
• AIO (
p.50 "M102 Covers, Platen Cover, Flatbed Unit")
• Front cover
• Right cover
M103
• AIO ( p.60 "M103 Covers, Flatbed Unit, ADF")
• Front cover
• Right cover

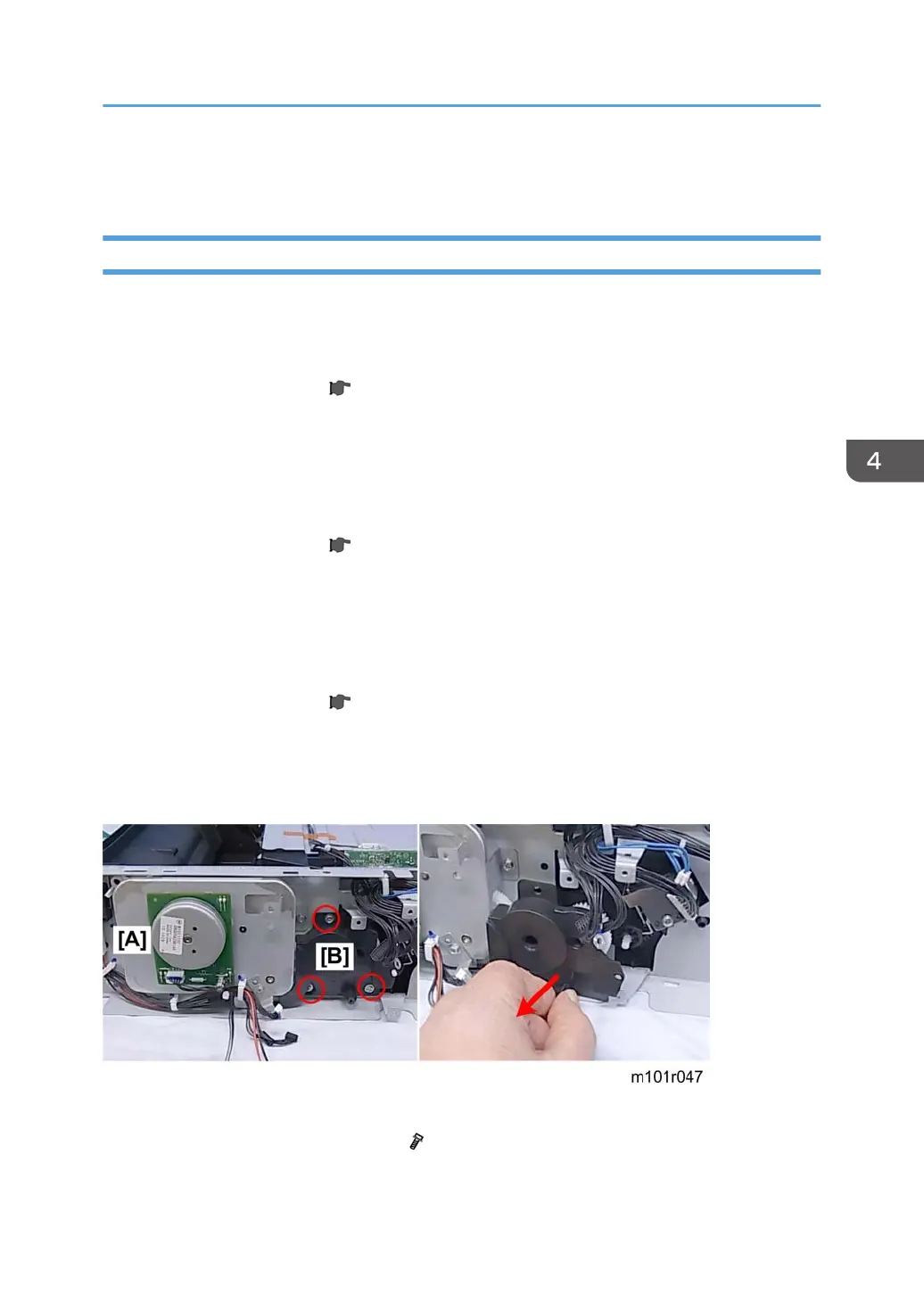

1. The main motor [A] on the right side of the machine drives all gears and rollers in the paper path.
2. Disconnect and remove gear train [B] ( x3).
Main Motor
99
